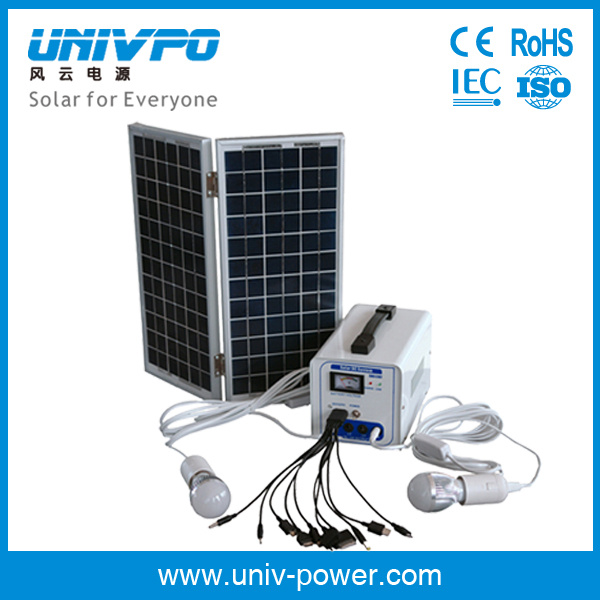

7AH Portable Solar Power Lighting System Kit/Solar Lighting System For Indoor(UNIV-7AH)
>> Introduction:
A Portable DC Lighting Solar System / solar lighting kits uses a photovoltaic (solar-electric) module to provide power for lights and small appliances. The power is available even at night and on cloudy days, makes your home or outside independent from the utility company and provide your own power.
>> Features:
1 >. Designed for small family or camping
2 >. Output: 12VDC(4outlets)
3 >. With battery voltage display
4 >. LED displays charge and load
5 >. With USB 5VDC 500mA output
6 >. The USB can charge for the iPhone
7 >. With multi-functional USB charge port
8 >. Full protections:
Battery low voltage protection
Over charge protection
Over discharge protection
Overload protection
Output short circuit protection
>> 7AH DC solar power system components:
1. Solar module: 12V/12W. With 8m cable and 2.1mm DC port, poly crystalline. (one set)
2. LED lights, 1 PC 12V/3W and 1PC 12V/5W E27 LED bulb, white color. With 4m cable and 2.1mm DC port. (two sets)
3. Battery box: Box with solar charge controller built-in. (one set)
4. Lead acid battery: 7AH 12V(one set)
5. Charge Port: 1 Multi-functional USB port
|
Model |
UNIV-4DS |
UNIV-7DS |
UNIV-12DS |
UNIV-17DS |
UNIV-24DS |
UNIV-38DS |
|
Battery Capacity |
4Ah,12V |
7Ah,12V |
12Ah,12V |
17Ah,12V |
24Ah,12V |
38AH,12V |
|
Solar Panel Power |
6W |
12W |
16W |
30W |
40W |
60W |
|
Solar Panel Connect Cable |
8m |
8m |
8m |
8m |
8m |
8m |
|
Solar Charger Controller |
1A,12V |
2A,12V |
2A,12V |
2A,12V |
2A,12V |
10A,12V |
|
LED Lights |
1pcs 5W,
1pcs, 3W |
1pcs 3W,
1pcs, 5W |
1pcs 5W,
1pcs, 3W |
2pcs 5W,
2pcs, 3W |
2pcs 5W,
2pcs, 3W |
5W:4pcs |
|
Working Time |
4.8 hours |
8.4 hours |
14 hours |
10 hours |
14 hours |
18 hours |
|
LED light Cable |
4m per pc |
4m per pc |
4m per pc |
4m per pc |
4m per pc |
4m per pc |
|
N.W. |
4.1 kgs |
5.6 kgs |
6.8 kgs |
7.7 kgs |
10.4 kgs |
15 kgs |
|
Unit Size(mm) |
161*97*147 |
223*126*147 |
223*126*147 |
258*151*222 |
258*151*222 |
330*190*220 |
