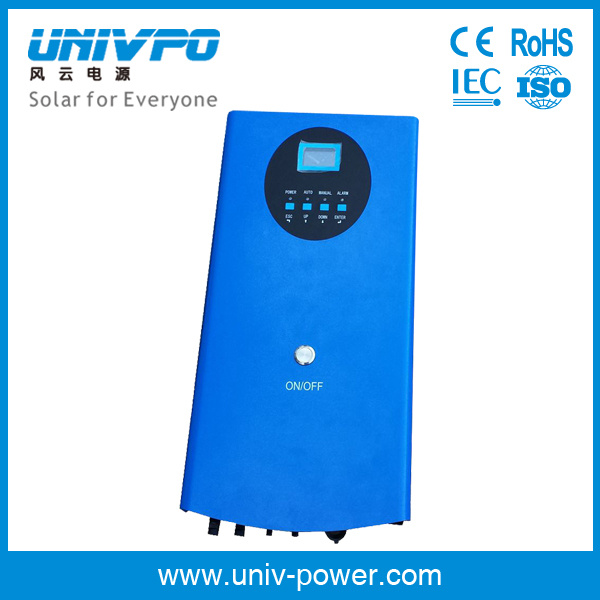

10KW solar pump inverter(UNIV-10KPP3-C)
>>Product Description
10KW 3-Phase AC Solar Pump Inverter (UNIV-10PP3-C)
>>Introduction:
PV pump system using solar power to drive motor pump for pumping, solving the problems of pumping
Requirements at the condition of no power and power shortage. The system mainly consists of PV array,
PV pump inverter and water pump, dispense battery bank as energy storage devices, in this way,
It can effectively save the system cost as well as reduce environmental pollution.
>>Features:
1.10KW 3-Phase AC Solar Pump Inverter is designed to converter DC (direct current) from Solar panel into AC (alternative current) to drive the pump.
2. MPPT techonology can accurately track the Maximum Power Point of PV. Efficiency upto 99%.
3. Inbuild MPPT + VFD (Variable Frequency Drive) to improve AC pump's efficiency and protect AC pump
4. Dry running protection and self-restart function
5. Various protection: Reverse polarity, short circuit, overload, overvoltage, over discharge etc. It can protect the controller from being demange because of accident such as improper operation.
>>Applications:
ModelUNIV-10kPP3-C
Inverter Power (W)10k
Motor Power (w)8.5k
OutputVoltage (V)Three? Phase AC 380V
(adjustable area 0 ~ Rated Input AC voltage)
Rated Current(A)39
Overload150%: 1 minute, 180%: 10 second, 200%: 0.5 second,
Interval: 10 minutes (inverse time lag feature)
InputRated Voltage/FrequencyThree? Phase 380V/ 480V 50Hz/60Hz;
PV Area Voc DC700V± 50V Maximum DC800V
AllowableThree? Phase 323V to 528V, Voltage imbalance: ≤ 3%,
Allowable frequency fluctuation: ± 5% MPPT Area DC520~650V,
Rated Current(A)AC42.9
DC46.8
General DataProtection ClassIP20
Operating Temperature (° C)-10~40
Product Size(mm)Customized according to user requirements
N. W. (kgs)Depends on user requirements
Cooling ModeForced air conection cooling
Advantages of our inverters:
1. Inside transformer with high quality ferrite core, which takes high efficiency to our inverters
2. PCB assembling is SMD in stead of hand-made
3. World-brand key components (Mosfet, IGBT etc. ) ensure the units working stable.
4. Specialized PCB design, reasonable product configuration makes the units with less Electro Magnetic Interference and more reliability
5. Good loading ability by special micro-processor design
Suzhou Universal-Power is a high-tech enterprise, which was established on May 2003, a professional and vigorous new energy company focusing on inverters, solar charge controllers and solar power systems. Until now, Universal-Power has produced more than 300000 sets of inverters and our products have reached over 100 countries worldwide, famous as a world leading professional manufacturer of cost-effective inverters with high quality and efficiency.
Universal-Power offers a full line of on grid and off grid inverters. Products from Universal-Power are with completely independent intellectual property rights and inverter core technology, the products including 60 Watts to 10K Watts off grid single phase high frequency inverter; 10K Watts to 17K Watts off grid three phase high frequency inverter; 1K Watt to 5K Watts grid tie single phase solar inverter; 10K Watts to 17K Watts grid tie three phase high frequency solar inverter. At the same time, Universal-Power's solar charge controller and off grid solar PV systems are designed for Solar system, Wind power system, and all inverters are widely used for automotive equipment, outdoor working, telecom and mechanical field etc.
Universal-Power strictly carries out ISO9001 standard and audit successfully, so we got certificates issued by international authorities such as UL, ETL, CE, RoHS etc. Relying on-class products quality and improved after-sale service, our company has won the popularity of consumers. Universal-Power has a R&D team with more than 30 engineers, 40% of the staff, who has been deeply engaged in the photovoltaic industry for 10 years.
Universal-Power owns 13 the national patents; especially, the Intelligent High Frequency Three Phase Inverter and Isolated Grid tie inverters have gained certificate of Hi-Tech product. Universal-Power has been set to Engineering Research Centre of isolated grid tie inverter by the Government of Suzhou. Our R&D takes the mission to increase the inverter availability and efficiency, putting continuous innovation to make Universal-Power inverter easier for installation and operation, and more cost-effective for the greener world.
Building an elite service team is Universal-Power 's another responsibility. In Universal-Power, service is not only the basic principle, but also blends into the hearts of the staff, and reflects in the daily work of everyone.
At Universal-Power, we see the power in clean energy. Our ENERGETIC goal is to bring simple, accessible solar solutions to the marketplace, improving the efficiency and reliability of solar power systems through our innovative products. Universal-Power brings you more powerful solutions for a greener world.
