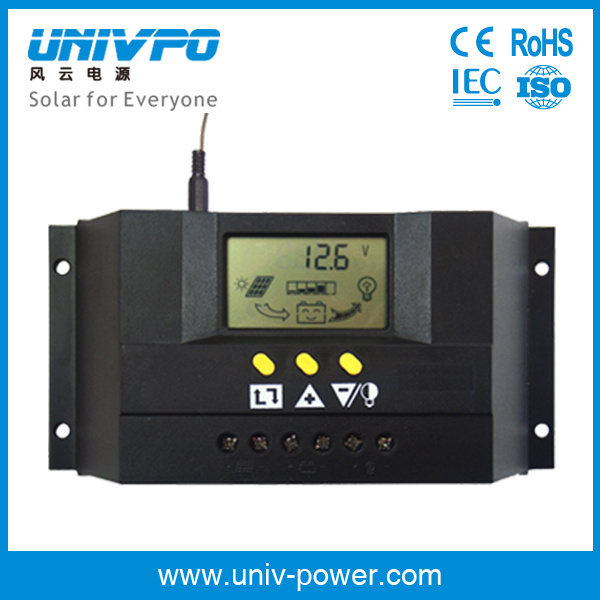

30A 48V price solar charge controller for Home Use with LCD Display, CE, RoHS
？
>> Introduction:？
？
The？UNIV-S？Series？solar system controller is a kind of intelligent, multi-purpose solar charge and discharge controller. The family use the fixed LCD display, with a very friendly interface; various control parameters can be flexibly set, fully meet your various application requirements.
？
？
>> Features:？
？
Image of LCD graphic symbol
Simple button operation
Automatic Identification System Voltage level
Intelligent PWM charge mode
Automatic Temperature Compensation
Adjustable charge-discharge control parameters
Settable Operating mode of Load
Overload, Short Circuit Protection
Remote monitoring and control function (custom)
Battery reverse-discharge protection
Battery Low Voltage Disconnection (LVD)
Battery reverse connection protection
Accumulated function of charge and discharge Ampere hours
？？
？Connection of ？solar charge controller :
？
？UNIVPO Production Collection:？
？
？
？
？
？
？
|
Model No. |
UNIV-20S |
UNIV-30S |
UNIV-20S48 |
UNIV-30S48 |
|
Rated Current |
20A |
30A |
20A |
30A |
|
Rated Voltage |
12V/24V auto work |
48V |
|
Open Circuit Voltage of Solar Panel |
≤50V |
≤100V |
|
Low Voltage Disconnection(LVD) |
10.7V / 21.4V |
42.8V |
|
Float Voltage |
13.8V / 27.6V |
55.2V |
|
Low Voltage Reconnection(LVR) |
12.5V / 25.0V |
50.0V |
|
No Load Loss |
≤30mA |
|
Loop Voltage Drop |
≤170mV |
|
Charging Mode |
PWM mode |
|
Temperature Compensation |
-4mV/Cell/°C |
|
Installation Cable area. |
≤7# AWG (16mm2) |
|
Operating Temperature |
-10°C~60°C |
|
Storage Temperature |
-30°C~70°C |
|
Humidity Requirements |
≤90%,no condensation |
|
Product Size |
90 ×188 ×48 mm |
|
Mounting Hole Spacing |
60 ×178 mm --Φ5 |
|
Net Weight |
0.4kg |
|
Carton Size |
55 ×44 ×30 mm , 30 pcs/ctn |
|
|
|
|
|
|
