？ ？4AH DC solar generator
4AH DC SOLAR GENERATOR
A Portable DC Lighting Solar System / solar lighting kits uses a photovoltaic (solar-electric) module to provide power for lights and small appliances. The power is available even at night and on cloudy days, makes your home or outside independent from the utility company and provide your own power.
？
Features:
？
1. Designed for small family or camping
2. Output: 12VDC(4outlets)
3. With battery voltage display
4. LED displays charge and load
5. With USB 5VDC 500MA output
6.The USB can charge for the Iphone
7.With multi-functional USB charge port
8.Full protection
Battery low voltage protection
Over charge protection
Over discharge protection
Overload protection
Output short circuit protection
？
4AH DC solar generator components:
？
1. Solar module: 12V/6W. With 8m cable and 2.1mm DC port, poly crystalline. (one set)
2. LED lights, 12V/3W, white color. With 4m cable and 2.1mm DC port. (two sets)
3. Battery box with solar charge controller built-in. (one set)
4. Lead acid battery:4AH 12V(one set)
5. Multi-functional USB charge port (one set)
？
Model: 4AH DC solar generator
？
Rated charging current: 2A
Rated discharging current: 2A
Rated working voltage: 12V
Solar panel voltage: <25V
Float charging voltage: 14V
Low voltage disconnecting point: 10.5V
Low voltage reconnecting point: 11.5V
No load loss: <=8mA
USB port current: <=500 mA
Working temperature: -10degree~50degree
Storage temperature: -15degree~40degree
Humidity requirement: <90%, no condensation
Dimension of host: 161X97X147 mm
Dimension of solar panel:34X18X1.7cm
Dimension of color box::395X235X215mm
Dimension of carton box:490X410X460MM
Quantity:4pcs/ctn 20' container QTY:1,208pcs
N.W/G.W.:16.4KGS/19.5KGS
？
Working time and Charge time:
Working time for 2pcs of 3W bulb, 6.4Hours
Charge time:10Hours
？
Details of Photo:
？
Host of the solar power kits
Battery Charge Cable(Optional accessory)
？
6W 21V Solar panel
You can choose extra bulbs if you need.

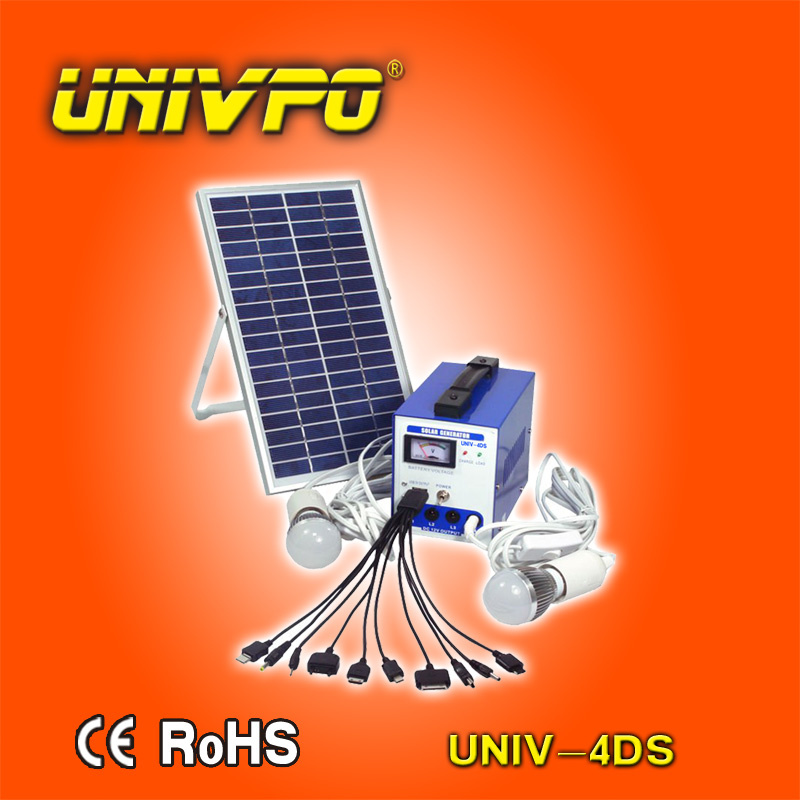

The whole 4AH DC solar generator
Attention:
If the solar power system charge for the battery, please make the switch on.
This system is usually used for home lighting/house lighting, remote area, mountainous area, desert area, grassland area, village, country area, camping, outdoor activities, traveling lighting at night.
？
Certificate:
CE ROHS
？
