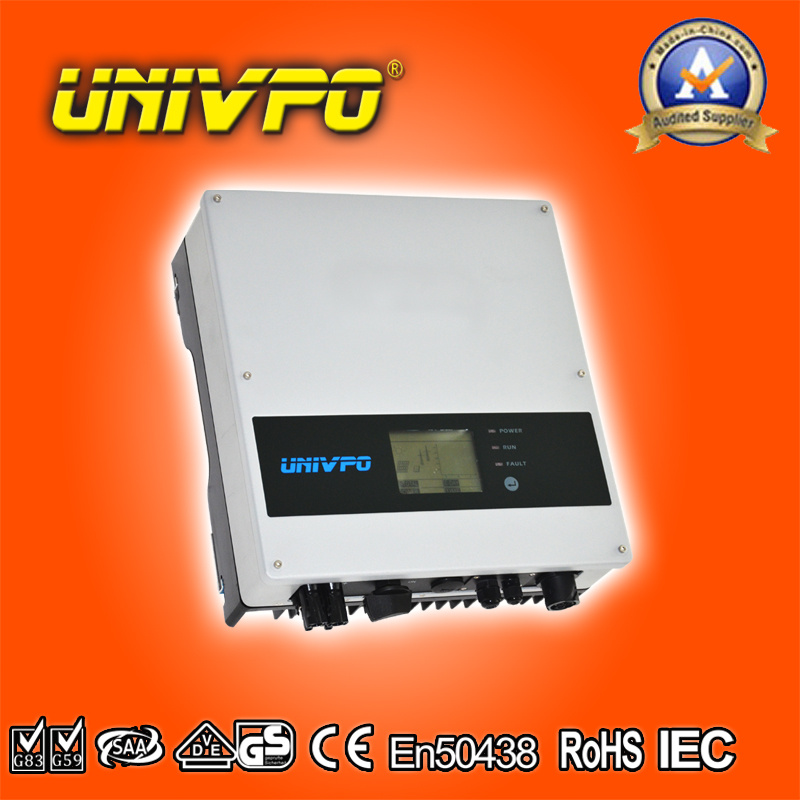

4400W PV Grid-Tied Inverter Solar(UNIV-40GTS)
4000W series inverter is suitable for home rooftop photovoltaic system, designed under modern industrial concept. It uses world class technologies. This model is applicable for the photovoltaic system with open-circuit voltage less than 580V, maximum output power less than 4600W. Its maximum conversion efficiency can reach 97.8%. First-class harmonic control ability, small size and light weight make it hold a safe lead among similar products.
Features:
Transformerless design, high efficiency (Max. 97.8%, Euro. >97.4%)
High MPPT accuracy(>99.5%)
Wide DC input range(125-550 Vdc), compatible with different module technologies
Easy to wire, install and operate
IP 65 design, suitable for indoor and outdoor installation
High Efficiency
Tracking accurate up to 99.5% can make UNIV-40GTS series inverters work more flexible and effective. All rooftop modules areas could be used for generating, it also could minimize the capacity consumption due to shade hiding. Max. Efficiency is up to 97.8%, Euro efficiency 97.4%, which means more transportation power than others solar device. UNIVPO photovoltaic inverter is your most wise choice.
High Reliability
Universal-power is founded in 2003, composed of home and abroad outstanding elite. Under the strict management system, UNIVPO inverter is featured by high efficiency, High quality, high reliability, complying with the IEC62109-1, IEC62109--2, AS3100, AS4777.2/. 3, VDE 0126, EN50438, CE, EMC, C-TICK, etc. Qualification, product repair rate is less than 1%. Due to the high products standard, warranty time could extend to maximum 25 years from regulated 5 years.
High Stability
UNIVPO inverter high quality casing can provide the best protection for insider electronic components, besides, by IP65 protection, it can be installed and run safely in the indoor and outdoor. And no afraid of any bad environment, it always create a best working conditions for you.
Innovative & Smart Monitoring
WIFI cards inside setting is the first Invention of the world, and power management box could preserve all important record from sensor. Each inverter can be quipped with RS485, RS248, USB and Ethernet interface, WIFI kit and GRPS Kits as your option. Through our free monitoring software to connect with your PC/Mobile, you can view the PV station output data and pubic grid power supply.
Convenient Operation
Each UNIVPO inverter has big exquisite graphic display, which will show all the relevant information and settings within 24h (Regardless of the inverter operation or shutdown ) Even after sunset, you could also check the device data and feel comfortable to use it by the user interface and visual display. UNIVPO inverter is with user-friendly large 4" LCD. It can be controlled by voice.
Easy to install
The Characters of UNIV-40GTS inverters are exquisite, portable and small, and Plug-in system integration make it easy for installation. The fillister of UNIVPO inverter with human body engineering design make it easy to pick up, internal rail make it easy to mount with the wall.
Good Heat-dissipation, Low Noise
UNIV-40GTS inverter with special designed intelligent cooling system, can still maintain excellent heat dissipation in a hot environment, always play the best performance. While sensor monitor operating temperature, smart cooling system will help heat effectively discharged outside from the shell. Then you no longer need to fan, for you to save money at the same time also brings a quiet and comfortable environment
Model |
|
UNIV-15GTS |
UNIV-20GTS |
UNIV-30GTS |
UNIV-36GTS |
UNIV-40GTS |
UNIV-46GTS |
DC input Data |
Max. PV-generator power [W] |
1800 |
2300 |
3200 |
4200 |
4600 |
5400 |
Max. DC Voltage [V] |
450 |
500 |
500 |
580 |
580 |
580 |
MPPT voltage range [V] |
125~450 |
125~450 |
125~450 |
125~550 |
125~550 |
125~550 |
Turn on DC Voltage [V] |
125 |
125 |
125 |
125 |
125 |
125 |
Max. DC work current [A] |
12 |
15 |
18 |
20 |
20 |
20 |
Number of inputs/MPP trackers |
1/1 |
DC connector |
SUNCLIX, MC IV Connector(Optional) |
Turn on power [W] |
5 |
AC Output Data |
Norminal AC power |
1500 |
2000 |
3000 |
3600 |
4000 |
4600 |
Max. AC power |
1650 |
2000 |
3000 |
4000 |
4400 |
5100 |
Max. AC current(A) |
8 |
10 |
15 |
16 |
22 |
25 |
Norminal output voltage range |
According to VDE4105, VDE 0126-1-1/A1, RD1699, G83/1, G59/2, AS4777.2/. 3 |
AC grid frequency |
According to VDE4105, VDE 0126-1-1/A1, RD1699, G83/1, G59/2, AS4777.2/. 3 |
THD(AC output current) |
< 1% |
Power factor |
~1 (Norminal power) |
AC Connector |
Single phase connector (with clamps) |
Efficiency |
Max. efficiency |
97.00% |
97.00% |
97.00% |
97.80% |
97.80% |
97.80% |
European efficiency |
> 96% |
> 96% |
> 96.5% |
> 97.4% |
> 97.4% |
> 97.4% |
MPPT adaptation efficiency |
> 99.5% |
Safty Equipment |
Leakage current monitoring unit |
Grid Monitoring |
DC switch |
Option |
Islanding protection |
AFD |
Grid Monitoring |
According to VDE4105, VDE 0126-1-1/A1, RD1699, G83/1, G59/2, AS4777.2/. 3 |
Normative Reference |
EMC compliance |
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
Safety compliance |
According to IEC62109-1/-2, AS3100 |
General Data |
Dimensions (WxHxD) [mm] |
330*350*125 |
390*417*142 |
Net Weight [kg] |
12 |
13 |
18 |
Housing |
For outdoor and indoor |
Mounting information |
Wall mounting |
Operating temperature range |
-20~60° C(up 45° C derating) |
Relative humidity |
0~95% |
Site altitude[m] |
2000 |
IP protection class |
IP65 |
Topology |
Transformerless |
Cooling concept |
Nature Convection |
Noise level[dB] |
< 25 |
Display |
3LED, 4' LCD |
Communication |
USB2.0; RS485/WiFi/ZigBee (optional) |
Standard warranty[years] |
5/10/15/20/25 (optional) |
