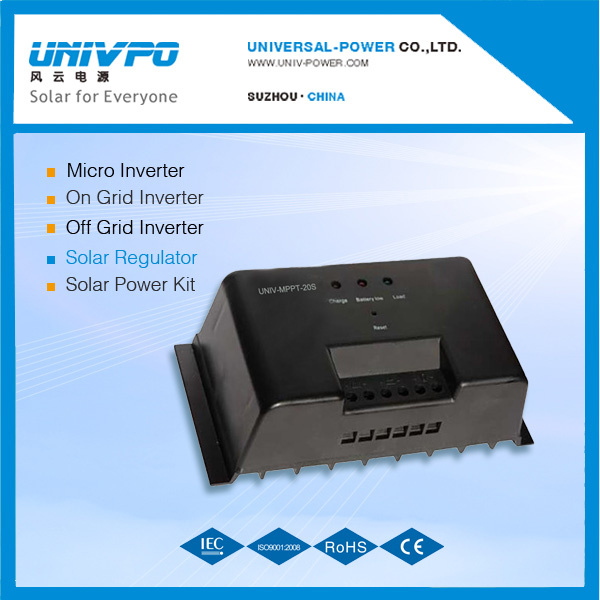

10A 12V/24V MPPT ？Solar Charger Controller for Solar System Use
The UNIV-MPPT-S series solar charer controlle has an？most important feature of？intelligent tracking input voltage from solar panel, which could let solar panel always working at Maximum Power Point of V-A curve. Compared with normal solar charge controller, this MPPT controller could increase 10%-30%？？ electrical power using efficiency from solar panel.
？ ？？？？
UNIV-MPPT-S？series solar charge controller has following features: ？
Simple button operation
Automatic Identification System Voltage level
Intelligent？MPPT charge mode
Automatic Temperature Compensation
Adjustable charge-discharge control parameters
Settable Operating mode of Load
Overload, Short Circuit Protection
Remote monitoring and control function (custom)
Battery reverse-discharge protection
Battery Low Voltage Disconnection (LVD)
Battery reverse connection protection
Accumulated function of charge and discharge Ampere hours
Fig : ？how to use the solar charge controller
|
|
UNIV-MPPT-10S |
UNIV-MPPT-20S |
|
MPPT Tracking Scope |
12V~46V(12V) or 24V~46V(24V) |
|
Input Volt |
12V or 24V |
|
Solar Panel Volt |
≤46V |
|
Float charging voltage |
13.8V for 12V,27.6V for 24V(adjustable) |
|
Absorption charging voltage |
14.4V for 12V,28.8V for 24V(adjustable) |
|
Solar panel input route |
1 route |
|
Max Load Current |
10A |
20A |
|
No Load Loss |
<8 mA |
<8 mA |
|
Net Weight (kg/pc) |
0.55 |
0.65 |
|
Product Size (mm) |
188*90*58.5 |
188*108*55 |
|
Master Carton Size (cm) |
438*325*284 |
438*325*284 |
|
Working temperature scope |
-10~+50 degree centigrade |
