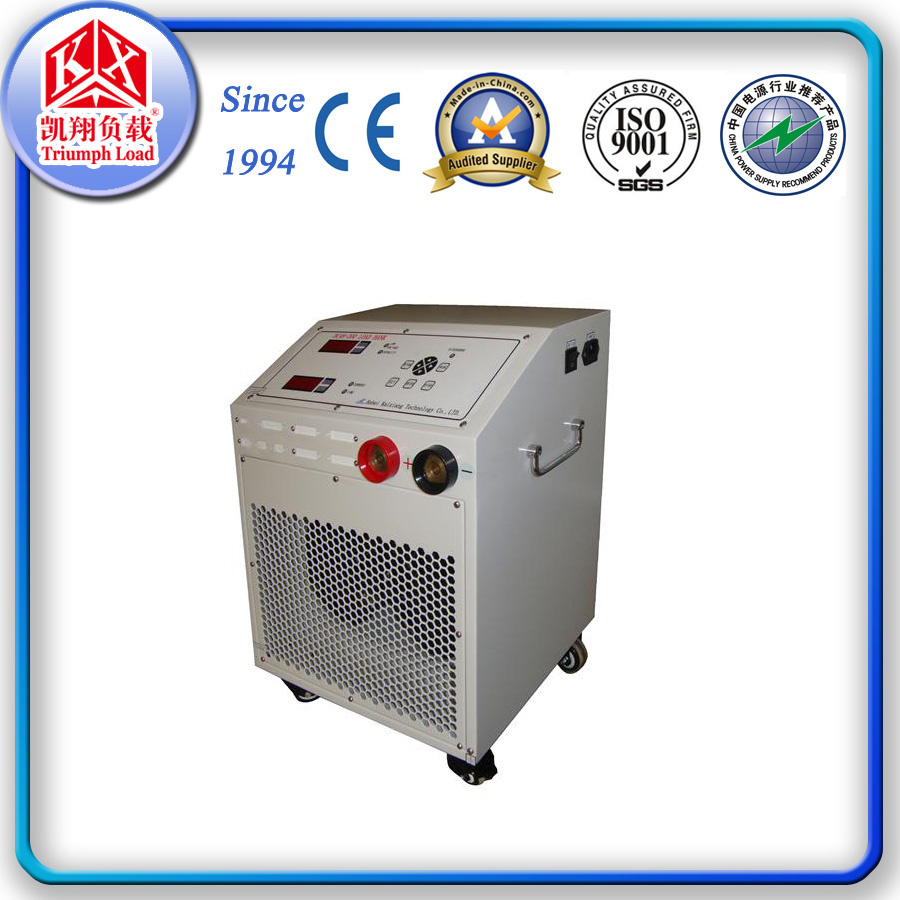

Main functions and features
L Discharging deeply and capacity test to battery, it is adopted new power consumption component and avoids machine's hot-red and broken phenomenon.
L Users can chose discharge voltage, set discharge time and discharge current according to battery capacity or test request.
L Automatic protection function.
It is of automatic protection function of high temperature, under-voltage and power off, and can automatically close load, protect battery and avoid over discharge when power supply off, high chassis temperature and battery voltage is lower than protective voltage.
L Automatic alarm function:
It can automatically alarm when the discharge time out or voltage is too low.
L Number timing/cumulative timing function
Discharger time can be set. Loading can be closed automatically time out. This discharge time can be accumulated automatically: From1 minute to 99 hours 59 second.
L Small volume: Designed carefully and adopted latest power consumption component, it make the machine volume smaller than others, is the replaced products of old model.
L Head of number table display the parameter of voltage and current.
Functions option:
L Achieving capacity test of battery or load capacity test of DC in constant discharge process: It can achieve constant current discharge with discharge current adjusting continuous exactly in require range by current adjustable knob...
Achieving the load capacity test of DC with constant resistance discharge: It can constant resistance discharge with setting discharge current by combined pull switch.
Voltage | 2V-600V |
Current | 1A-1500A |
Usage | Discharger |
