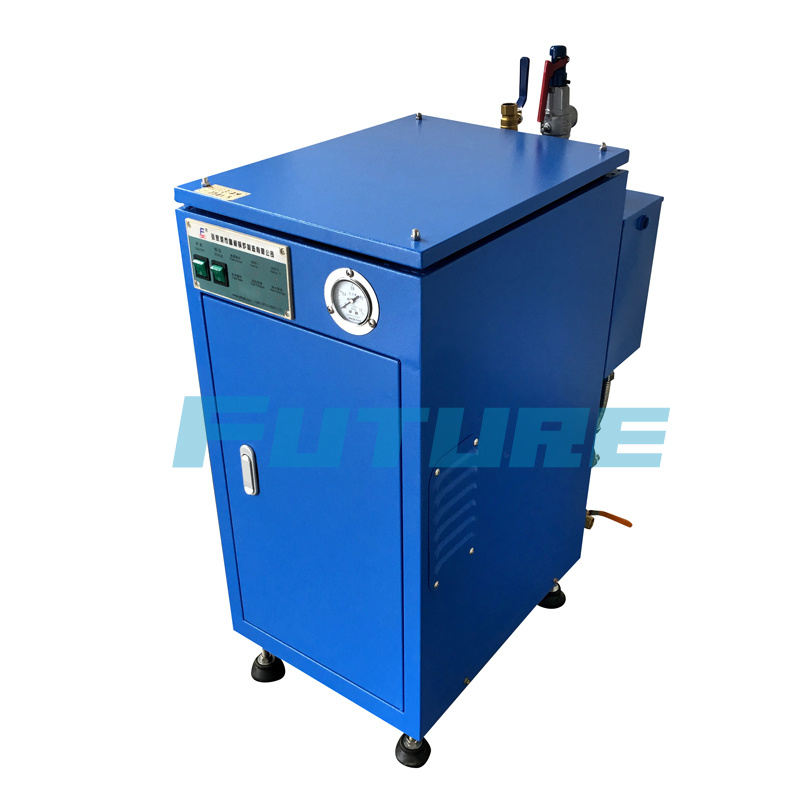

4-85Kg/h Mini Electric Steam Generators:
1)Steam Capacity: 4-85Kg/h
2)Power: 3-60KW
3)Pressure: 100-180 PSIG
3)Power Voltage: 110-480V
I. Product Introduction:
Mini Electric Steam Generator(Boiler) is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
II. Characteristics of Boiler Control System:
1. Adjustable for steam pressure.
2. Power sub-file with switching function.
3. Boiler body uses of stainless steel material, espeically in the field of Pharmaceutical, laboratory, etc...
4. Electric cabinet adopt water and electricity separation type, preventing electrical aging and easy to maintain.
5. Adopt of advanced Micro-computer controller, has the features of reliable performance, high automation and easy to operate, etc.
6. Main Electrical Components adopt world famous brands, scuh as SCHNEIDER, Siemens, OMROM, LG, etc...
7. By use of high quality Heating Element, high temperature resistance of electric wire more than 1000° C, service life is 5-10 times than traditional one, the application of magnesium rod anode technology, it ensures that that heating element difficult to form scale, any other product is incomparable.
III. Technical Parameters:
| Model | LDR0.004
-0.7 | LDR0.009
-0.7 | LDR0.013
-0.7 | LDR0.017
-0.7 | LDR0.025
-0.7 | LDR0.035
-0.7 | LDR0.05
-0.7 | LDR0.065
-0.7 | LDR0.085-0.7 |
| Item | Unit |
| Rated Steam Capacity | Kg/h | 4 | 9 | 13 | 17 | 25 | 35 | 50 | 65 | 85 |
| Rated Working Pressure |
MPa/
bar | 0.7/7 (Available for adjustment) |
| Saturated Steam Temperature | ° C | 171 |
| Input Power | KW | 3 | 6 | 9 | 12 | 18 | 24 | 36 | 48 | 60 |
| Input Current | A | 6 | 9 | 14 | 18 | 27 | 41 | 55 | 73.8 | 92 |
| Voltage | V | 220 / 380 (Available for adjustment ) |
| Water Inlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Steam Outlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 20 | 25 |
| Blowdown Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
| Safety Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
| Dimension | mm | 680× 520× 850 | 750× 550× 920 | 850× 600× 1000 | 920× 700× 1250 | 960× 730× 1390 |
| Weight | kg | 60 | 89 | 92 | 100 | 110 | 135 | 151 | 183 | 230 |
