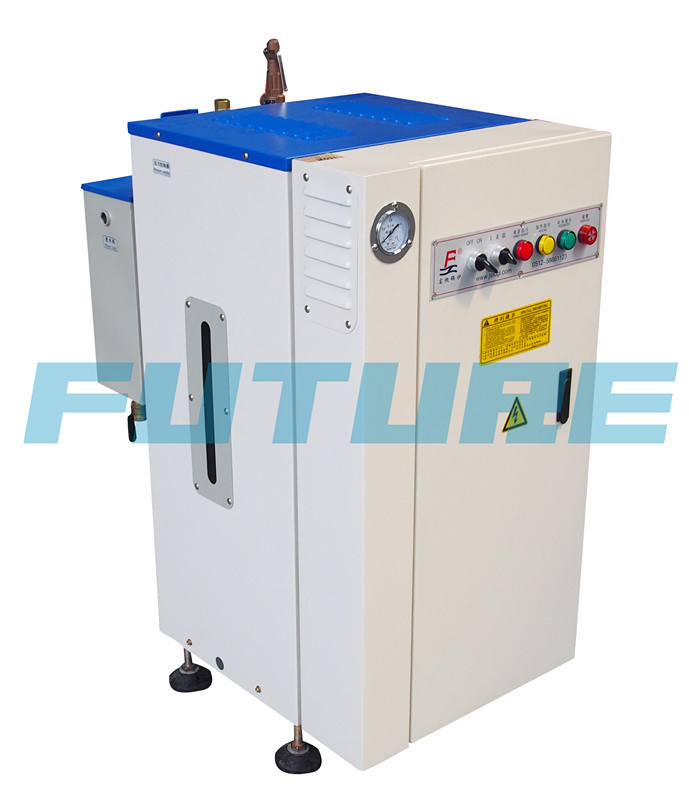

36kw or 50kg/H Electric Steam Generator
Price: |
US $ 1600-1650/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P |
36kW or 50kg/h Electric Steam Generator:1) Steam Capacity: 50Kg/h
2) Input Power: 36KW
3) Woring Pressure: 7-12.5bar
4) Voltage: 110-480V
I. Product Introduction:
"FUTURE" Small electric steam boiler is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
1. Small Input Power with higher output.
2. Use of Nichrome Heating Element, it ensures long-term effective operation of the boiler.
3. Mini Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS, etc...
II. Details of Electric Steam Boiler

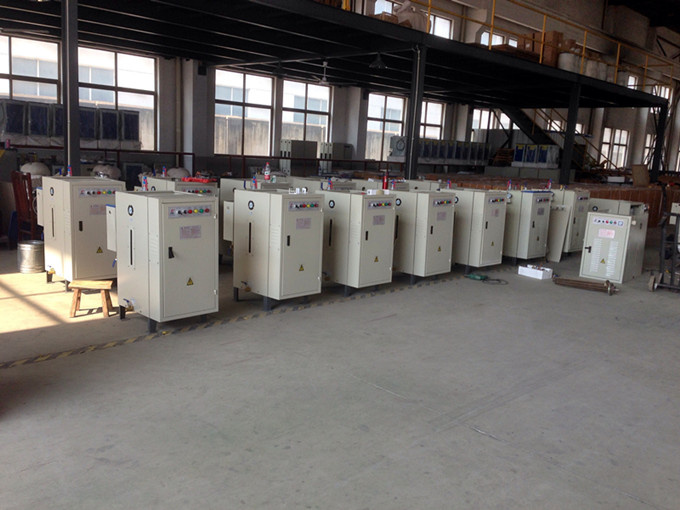

1) Assembly Area:

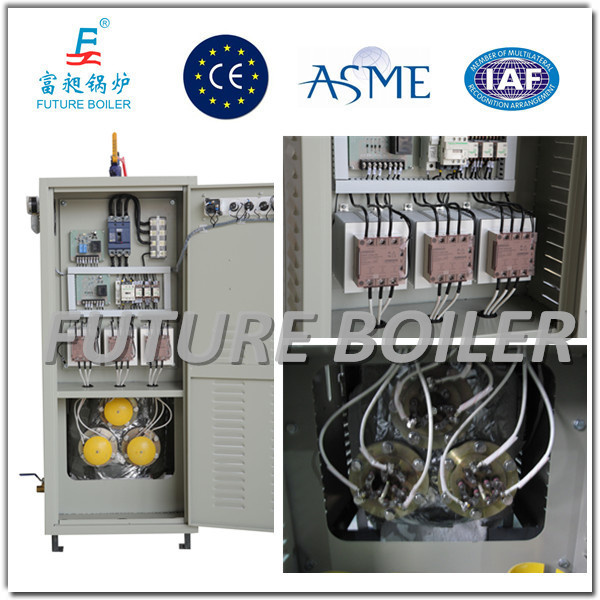

2) Would First-class Components & Parts(Only for reference):

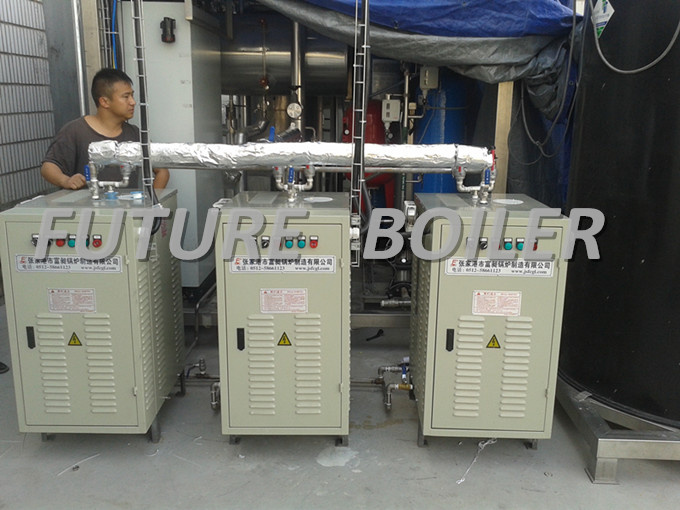

3) Customer Using Site:
III. Technical Parameters:Model | LDR0.042-0.7 | LDR0.05-0.7 | LDR0.065-0.7 | LDR0.075-0.7 | LDR0.085-0.7 |
Item | Unit |
Rated Steam Capacity | Kg/h | 42 | 50 | 65 | 75 | 85 |
Rated Working Pressure | Bar / Psig | 7 / 101 (Made to order) |
Saturated Steam Temperature | °C | 171 |
Input Power | KW | 30 | 36 | 48 | 54 | 60 |
Input Current | A | 45 | 54 | 72 | 81 | 90 |
Power Source | V/Hz | 380,50 (Made to order) |
Water Inlet | DN | 15 | 15 | 20 | 20 | 25 |
Steam Outlet | DN | 15 | 20 | 25 | 20 | 25 |
Blowdown Valve | DN | 15 | 15 | 25 | 20 | 25 |
Safety Valve | DN | 15 | 15 | 25 | 20 | 25 |
Overall Dimension(L*W*H) | mm | 920×700×1200 | 960×750×1400 | 990×820×1590 |
Weight | kg | 132 | 160 | 200 | 220 | 260 |
Prod Model: |
LDR0.05-0.7 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
36kw or 50kg/H Electric Steam Generator |
Steam Output: |
50kg/Hr |
Input Power: |
36kw |
Main Power Source: |
3phase/220-600V/50-60Hz |
Working Pressure: |
7bar / 101psig |
Saturated Steam Temp.: |
171°c |
Electrical Components: |
Schneider, Siemens, Omron, FUJI, LG |
Heating Elements: |
#321 Ss, Incoloy 800, Titanium Tube |
Thermal Efficiency: |
98% |
Lead Time: |
5-20days/Set |
Function: |
Steam Boilers |
Fuel: |
Electric Heating |
Installation: |
Packaged Boiler |
Media: |
Steam |
Drum Placement: |
Vertical Boiler |
Pressure: |
Low Pressure |
Manufacturing Level: |
B |
Usage: |
Industrial |
Structure: |
Tubular |
Water Circulation: |
Boiling Boiler |
Burning Style: |
None |
