Sunworth Solar, we commit oursleves to R&D, manufacture and technical innovation on PV modules and solar power sytem.
To provide high quality products with various specification to customers is always our pursuit.
Performance characteristic:
*Smart figure, simple operation.
*Intelligently controlled by industrial CPU.
*Automatically protection against overload or short-circuit.
*Well protection for battery away from overcharging, discharge, and reverse polarity.
*PWM charging mode(charge, equalizing charge, floating charge).
*Temperature compensation for battery, LED display to indicate the residual capacity of battery.
*DC, AC output.
Warranty:
2years maintenance-free for the whole set.
Application:
*For house using, to power energy-saving lamp, radio, small TV set, samll fan, etc.
*For outdoors application, be used to startup motorcar as the power source of car, to power portable electronical devices and notebook equipment.
|
|

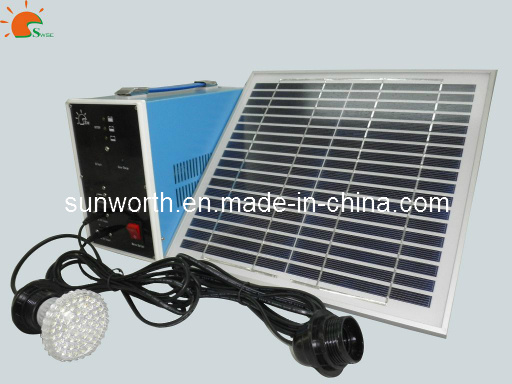

SW-SHS010W |
SW-SHS020W |
SW-SHS030W |
|
Power of solar panel |
10W |
20W |
30W |
|
Capacity of battery |
12V/7AH |
12V/12AH |
12V/17AH |
|
Controller |
12V/3A |
12V/3A |
12V/3A |
|
Output voltage |
DC 12V/DC 9V/DC 5V |
DC 12V/DC 9V/DC 5V |
DC 12V/DC 9V/DC 5V |
|
Power of lighting bulb |
2*1W |
2*3W |
2*3W |
|
Working duration |
Daily electricity consumption can be 60Wh~120Wh, working duration will be different for varied loads. |
|
Opearating temperature |
-20 º C ~+65 º C |
|
Batteryfuse |
7.5A |
|
PV cables |
2*0.75mm 2, Length 5 meters |
|
Lamp cables |
2. 0.75mm 2, Length 3 meters, E27 lamp holder |
|
Applications |
Can supply power to DC light, Radio, DC fan, DC TV set. Charge mobile phone, MP4 ect. |
|
|
SW-SHS010W |
SW-SHS020W |
SW-SHS030W |
|
Packing |
1 Set/Carton |
1 Set/Carton |
1 Set/Carton |
|
Packing size |
420*380*220mm |
420*380*220mm |
420*380*220mm |
|
Volume/Weight per set |
0.038m 3 /6.5kgs |
0.038m 3 /8kgs |
0.038m 3 /10kgs |
|
20' GP |
700 Sets |
700 Sets |
700 Sets |
|
40' GP |
1500 Sets |
1500 Sets |
1500 Sets |
Dongguan SunWorth Solar Energy Co., Ltd. is a leading solar energy company and a middle-sized vertically integrated photovoltaic manufacturers. We develop, manufacture and sell solar panels, Solar Power Systems, Solar lights and other green energy equipments to a wide range of markets, including Africa, Southeast Asia and Middle East. And also we focus on developing market in Europe like France, Italy and the United States from now...
Located in World's manufacturing workshop-DONGGUAN, Sunworth occupies 6000 square meters courtyard-style factory and employs more than 200 skilled workers. We utilize advanced technology and good management to produce high-quality products with competitive cost structures.
We aspire to be socially and environmentally responsible in every decision we make and every product we supply. As a undertaker in sustainable energy solutions, we are striving to aim the goal"endless sunshine to share; Endless value to discover. "we are looking forward to establishing long-term business relationship with clients all over the world.
