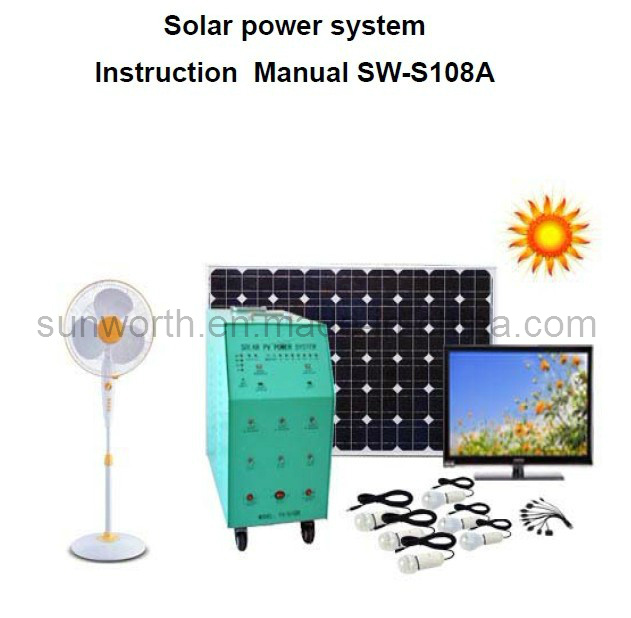

Application:
1. Run TV set, fan, light, freezer, etc. (Total power should be less than 600W)
2. Mobile phone charging, MP3/MP4/MP5/GPS/PDA charging, etc.
3. Camping outside
Product Diagram
1. Solar panel
2. Inverter working indicator
3. Inverter fault indicator
4 AC charge input
5. Solar input indicator (red for charging, green for full)
6...Battery working indicator (green for working, red for low power)
7.12V output indicator ( red for working)
8.8.4V output indicator (red for working)
9.5V output indicator (red for working)
10.3.3V output indicator (red for working)
11. USB output interface (8.4V/5V/3.3V)
12. Slide switch for chossing 8.4V/5V/3.3V
13. LCD display for voltage
14. LCD display for current
15.12V output interface
16.12V output switch
17.8.4V/5V/3.3V output switch
18. Solar input terminal
19. Battery extension terminal
20. AC input interface
21. AC output switch
22. Master switch (must be open before charge)
23. AC socket
Product Parameter
1. Solar panel: 100W/18V*2PCS Mono/poly crystalline silicon
2. Battery: 12V/100AH lead-acid solar battery
3. Controller: 12V/20A
4. Solar input: 18V
5. Output voltage: 3.3V/5V/8.4V/ 12V/16V/19V/24V/220V
6. Output interface: 7 (2 for USB, 3*DC, 2*AC, 1*solar input)
For USB Output voltage: 8.4V/5V/3.3V
For USB Output current: 1.5A
For DC Output voltage: 12V/16V/19V/24V
For DC Output current: 3A
For AC Output voltage: 220V
For AC Output current: 5A
Charging/Working time:
1. Fully charging time: 7~9h (under standard solar radiation)
2. LED in set's using time after fully charged (51~53h)
Size:
Solar panel: 1140*670*35mm
System box: 510*260*490mm
Weight:
Solar panel: 8.98 KG*2PCS
System box: 47 KG
Accessories:
1. Cable for USB to DC
2. 1 set of phone charging adapter
3. (1W+3W+5W)*2PCS LED lamps with 3M cable
4. 5M cable for solar panel
5.1 instruction manual
