Application:
1.12V DC lamp, 5V mini DC fan
2. Mobile phone charging, radio, digital camera charging
3. Camping outside

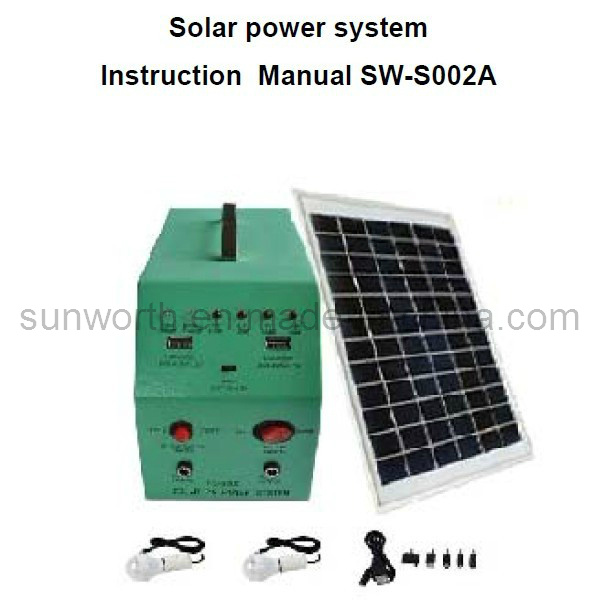

Product Diagram
1. Solar panel
2. Solar system case
3. AC Input interface for AC 220V
4. DC Input interface for solar panel
5. MASTER SWITCH (must be opened before using)
6. DC output interface
7. Switch for 12V output
8. Switch for USB output
9. Slide switch for chossing 8.4V/5V/3.3V
10. Output interface for USB
11. Solar charging indicator (red for charging, green for full)
12. Battery working indicator (green for working, red for low power)
13. AC charging indicator (red for charging, green for full)
14.12V electricity indicator ( red for working)
15. 8.4V electricity indicator (red for working)
16.5V electricity indicator (red for working)
17. 3.3V electricity indicator (red for working)
Product Parameter
1. Solar panel: 15W/18V Mono/poly crystalline silicon
2. Battery: 12V/7AH lead-acid solar battery
3. Controller: 12V/3A
4. Solar input: 18V
5. Output voltage: 3.3V/5V/8.4V(Adjustable)/ 12V
6. Output interface: 4 (2 for USB, 2 for DC 12V)
For USB Output voltage: 8.4V/5V/3.3V
For USB Output current: 1500mA
For DC Output voltage: 12V
For DC Output current: 3A
Charging/Working time:
1. Fully charging time: 5.5~7.5h (under standard solar radiation)
2. LED in set's using time after fully charged (10~11h)
Size:
Solar panel: 395*350*25mm
System box: 220*110*145mm
Weight:
Solar panel: 1.68 KG
System box: 3.6 KG
Accessories:
1. Cable for USB to DC adaptor
2.5 adapter kits for various mobile phone
3.3W*2PCS LED lamps with 3M cable
4.5M cable for solar
5.1 instruction manual
