Application:
1. Lighting, enjoy music or listen to radio
2. Electronic products charging
3. Camping outside, etc.

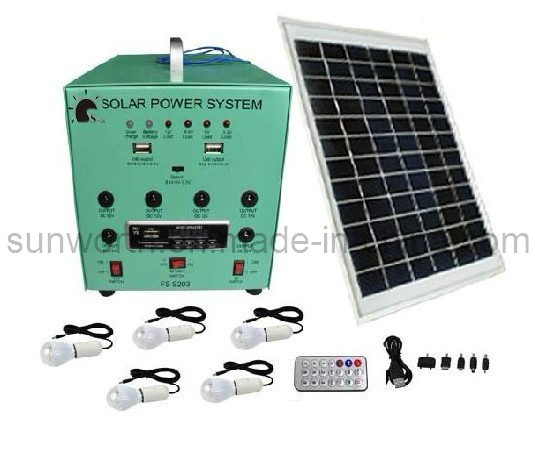

Product Diagram
1. Solar panel
2. Solar charging indicator (red for charging, green for full)
3. Battery working indicator (green for working, red for low power)
4.12V electricity output indicator ( red for working)
5.8.4V electricity output indicator (red for working)
6.5V electricity output indicator (red for working)
7.3.3V electricity output indicator (red for working)
8. USB 8.4V/5V/3.3V output interface
9. Slide switch for chossing 8.4V/5V/3.3V
10 DC 12V output interface
11. DC 5V output switch
12. FM/MP3 Player
13. FM/MP3 switch
14. DC 12V Output switch
15. DC input interface for solar panel
16. Master switch (open before use)
17. Radio antenna
18. System case
Product Parameter
1. Solar panel: 40W/18V Mono/poly crystalline silicon
2. Battery: 12V/22AH lead-acid solar battery
3. Controller: 12V/3A
4. Solar input: 18V
5. Output voltage: 3.3V/5V/8.4V/ 12V
6. Output interface: 8 (2 for USB, 6 for DC 12V)
For USB Output voltage: 5V
For USB Output current: 0.6~0.8A
For DC Output voltage: 12V
For DC Output current: 3A
7. FM/MP3: 3W power
Operate: FM USE directly
MP3: Insert USB flask disk, or memory card.
Charging/Working time:
1. Fully charging time: 7~9h (under standard solar radiation)
2. LED in set's using time after fully charged (13~14h)
Size:
Solar panel: 655*516*25mm
System box: 263*170*170mm
Weight:
Solar panel: 3.94 KG
System box: 10.42 KG
Accessories:
1. Cable for USB to DC adaptor
2.5 adapter kits for various mobile phone
3.3W*5PCS LED lamps with 3M cable
4.5M cable for solar
5. MP3/FM remote
6.1 instruction manual
