100kg Electric Steam Generator (FCD-72kW):1)Steam Capacity: 100Kg/h
2)Input Power: 72KW
3)Working Pressure: 0.7MPa
4)Main Power Source: 220-480V
I. Technical Parameters:| Model | LDR0.1-0.7 |
| Item | Unit |
| Rated Steam Capacity | kg/h | 100 |
| Rated Working Pressure | MPa | 0.7 (Made to order) |
| Saturated Steam Temperature | °C | 171 |
| Input Power | KW | 72 |
| Rated Current | A | 110 |
| Main Power Source | V/Hz | 3Phase, 380/50 (Made to order) |
| Water Inlet | DN | 20 |
| Steam Outlet | DN | 20 |
| Blowdown Valve | DN | 20 |
| Safety Valve | DN | 20 |
| Overall Dimension(L×W×H) | mm | 1020×870×1450 |
| Net Weight | kg | 260 |
II. Main Features:
1.Electric steam boiler is high efficient, quiet, and safe for your process needs.
2.Vertical design requires minimal floor space.
3.The heating elements are easily accessible-permit quick removal for service or inspection.
4.No NOX(Nitrogen oxides) emission.Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
5.Completely wired control box located in front of the boiler.
6.All electrical components have demonstrated signs CE and equipped with world famous brands (SCHNEIDER, SIMENS, OMRON, and LG) to ensure product safety and service life.
7.98% thermal efficient because the heating elements (CE tested) are totally immersed in water.
8.Power switch function to allow different steam using requirement.
9.Heating elements start one by one, reducing the electric loading.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS etc...
III. Details of 100kg Electric Steam Generator:

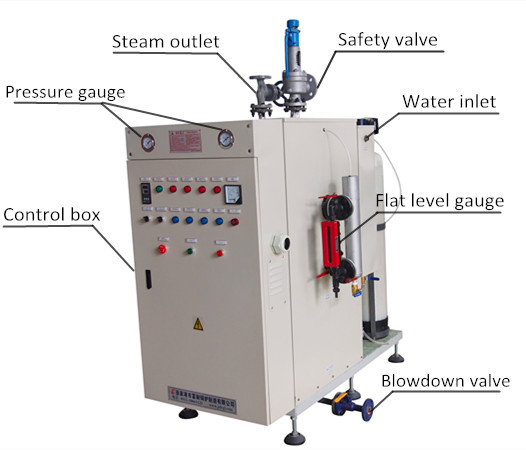

1) Sketch:
1.1 Double Pressure Systems(Pressuge gauge + Pressure controller)
1.2 Imported Brand of Electrical Components(Main Schneider, Siemens,Omron,LG)
1.3 Imported Instruments & Valves (Italain and Japanese Brands)
1.4 Imported Water Pump (German and Japanese Brands)

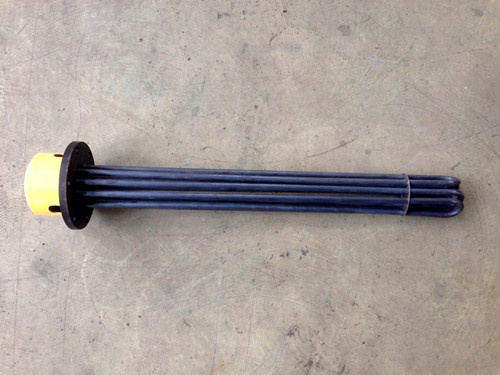

2) Heating Element
2.1 Material: Titanium Alloy
2.2 Guarantee: 3 years without faults (24-hour operation)
IV. Why Choose US!
We are a professional steam generator manufacturer and exporter.
Very sincerely looking for long-term win-win business here.
Major exports include electric boiler, electric steam boiler, oil(gas) steam boiler, oil(gas) hot water boiler, and oil(gas)thermal oil boiler, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
| Prod Model: |
LDR0.1-0.7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
100kg Electric Steam Generator |
| Steam Capacity: |
100kg/H |
| Boiler Output: |
220 Lbs |
| Heating Elements: |
316L, Titanium Tube |
| Rated Working Pressure: |
0.7-2.0MPa |
| Saturated Steam Temp.: |
175-200°c |
| Thermal Efficiency: |
98% |
| Boiler Horse Power: |
7.2bhp |
| Lead Time: |
7-15days/Set |
| OEM: |
Yes |
| Function: |
Steam Boilers |
| Fuel: |
Electric Heating |
| Usage: |
Industrial |
| Pressure: |
Low Pressure |
| Drum Placement: |
Vertical Boiler |
| Media: |
Steam |
| Installation: |
Packaged Boiler |
| Manufacturing Level: |
B |
| Burning Style: |
Heating Element |
| Structure: |
Tubular |
| Water Circulation: |
Boiling Boiler |
