Home Generator Products 10 Heads Weigher Potato Chips Packaging Machine (CP420BW)

10 Heads Weigher Potato Chips Packaging Machine (CP420BW)

10 Heads Weigher Potato Chips Packaging Machine (CP420BW)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
CP420BW Automatic Multi-heads Weigher VFFS Packaging production Line

Featur
es:
1. Mitsubishi PLC+ WEINVIEW HMI/Siemens PLC+HMI , Double/Three Servo motor unit is available;
2.  Servo motor unit& Belt unit film transport(Double belt unit is also available);
3. Auto program set-up, Photo sensor tracking mark, quick change former assembly;
4.  High-speed machine possible: from Min 60-Max80/120 bags per min;
5.  Perfect weighing accuracy performance by multi-head weigher.


Applications:
Suitable to packaging the high-accuracy and fragile granule , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.

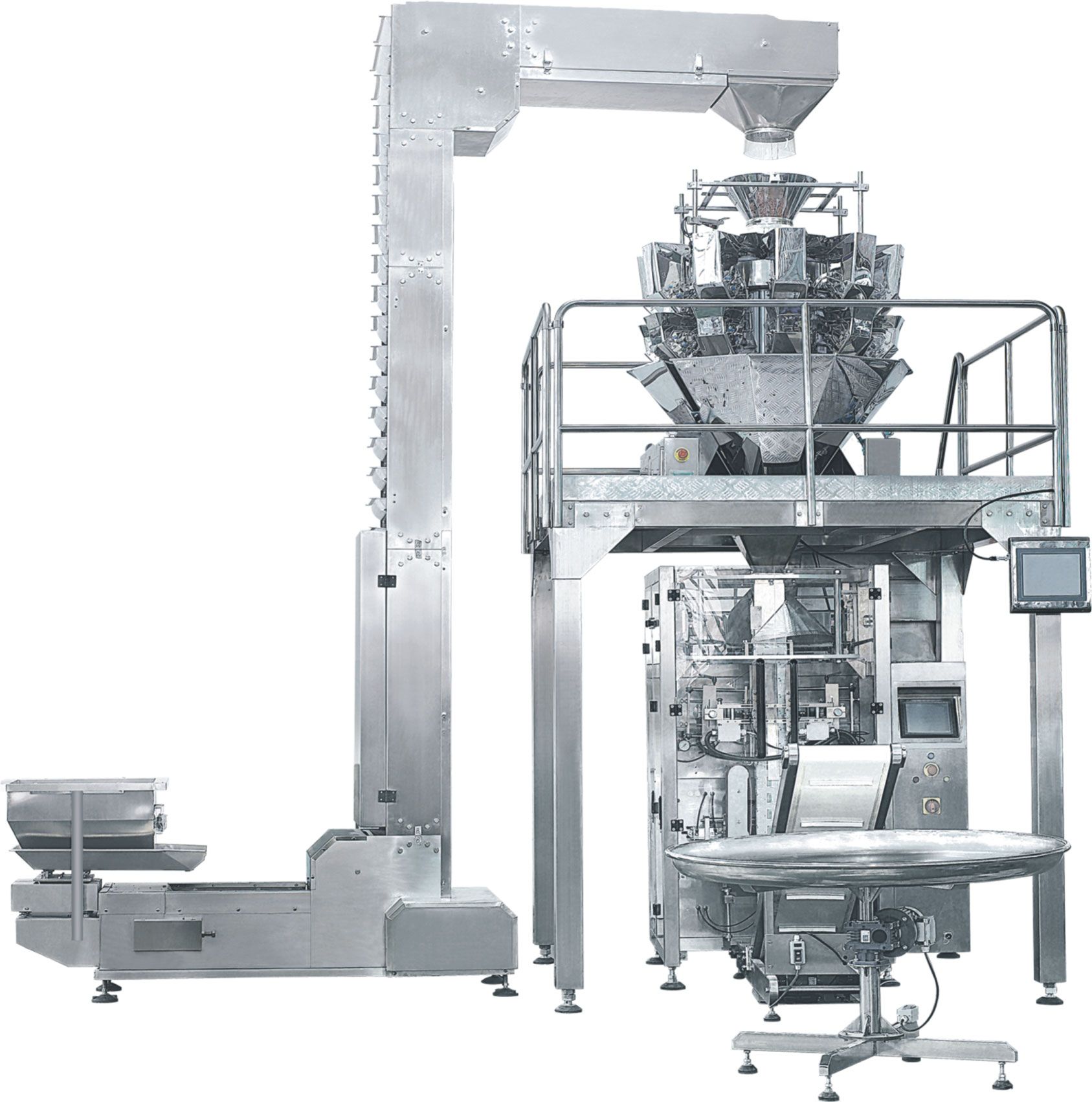

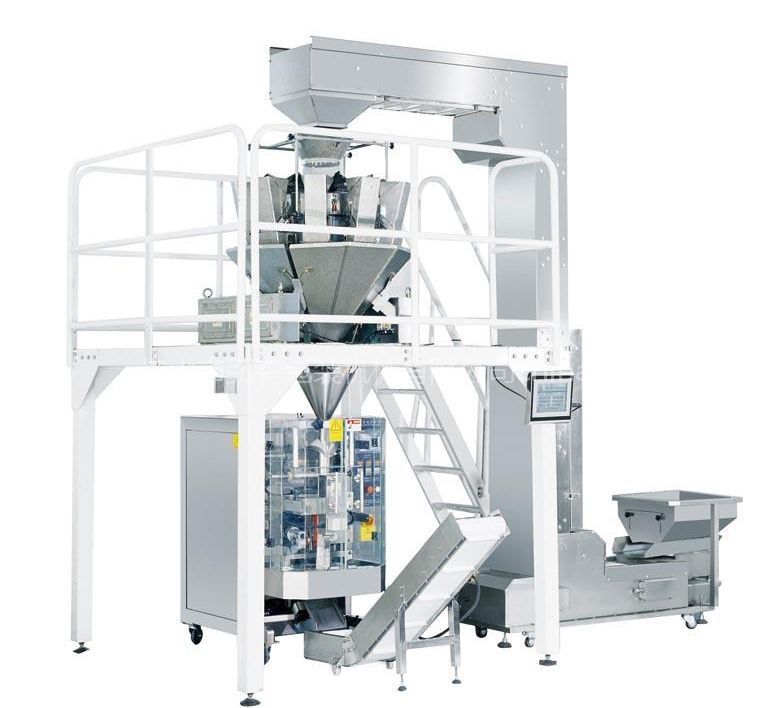

The above whole system dose consist of the following:

1.  Z bucket conveyor with vibrating feeder;
2.  Multihead weigher;
3.  Working platform;
4. VFFS Packaging machine;
5.  Output conveyor
6.  Optional: Metal detector ,Check weigher,
Rotary collecting table, Nitrogen Generator, Air compressor.




Specifications:
Model CP420B-II
Capacity Max80 bags/min
Measuring rangeMax100ml
Bag modelPillow bag
Bag sizeGenerally,L 60-200mm W60-140mm
Film WidthGenerally Max 300mm
Control PLC + Chinese/English interface
Air consumption 0.8Mps, 0.4m3/min
Power 1Phase,50Hz ,AC 220V, /2.2KW
Customized Twins machine, Punching functions
Dimension(LxWxH)1260x1015x1560mm
Weight 450kg
Prod Model: CP420BW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Outer Package: Seaworthy Export Wooden Package
Inner Package: Seaworthy Vacuum Package
CE No.: Ec.1282.0d131115.GCP3095
SGS No.: Qip-Asi1311019
Quality Management System: ISO9001:2008
Warranty: One Year Full Warranty
Applicable Industry: Medical
Usage: Packaging of Goods
Packaging Material: Film
Packaging Type: Bag
Driven Type: Pneumatic
Packaging Technology: Rustproof Packaging
Application: Granule
Soft And Hardness: Flexible Package
Guangzhou CER Packing Machinery Co., Ltd manufactures & provides the vertical packaging machine & solution in Guangzhou (15 minutes drive to Airport), China.

CER has a professional, experienced of R&D and technical support. We are well experienced in both the general packaging machine and the customized packaging solutions, and sell products with our own brand "CER " to all over the world. We are committed to providing high-quality products and prompt deliveries at competitive/reasonable prices.

The machine & line under the brand of CER are widely used in the package of food, medicine, hardware, daily chemicals, electronics, daily necessities, etc.

We are well experienced in both the general packaging machine and the customized packaging solutions, and sell products with our own brand "CER " to all over the world.

We are committed to providing high-quality products and prompt deliveries at competitive prices.

CER Packing Machinery will give you a new concept of China's merchandise: Not only Made in China, but even Created in China!

OUR MISSION:

To offer our customers a full set of Packaging Solution as their requirements at reasonable prices & on time, and we are working on it;

To supply our customers a human User Experience and a positive impression with our products, our stuff and our company, and we are working on it.

OUR GUARANTEE:

Shipment must be effected as per contract or Proforma Invoice;

Service or Support must be satisfying within 2 working days; If possible, our engineer will give you local training and solve your problem face-to-face.

OUR FAITH:

Mutual Benefit is the foundation of long, last, firm and healthy business partnership.
