| Price: | US $ 6225/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | HQC30GF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: | 400V/230V, 380V/240V |
| Rated Current: | Customerized |
| Warranty: | One Year for The Machine |
| Engine: | 4bt3.9-G2 |
| Alternator: | Stamford Leroy Somer, Marathon Series |
| Noise: | Normal Silent 75db and Supper Silent 65db at 7 Met |
| Colour: | According to Your Request |
| Circuit Breaker: | MCCB or ATS |
| Controller: | Deepsea,Woodward,Deif,Comap |
| Type: | Basic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
Our Services:
One year or 1000hours whichever comes first
Product Description:
1.water-cooled diesel generator
2.open type generator
3.CE approved &ISO certificate
4. Low fuel consumption
5.With 8 hours base tank
6.Global warranty

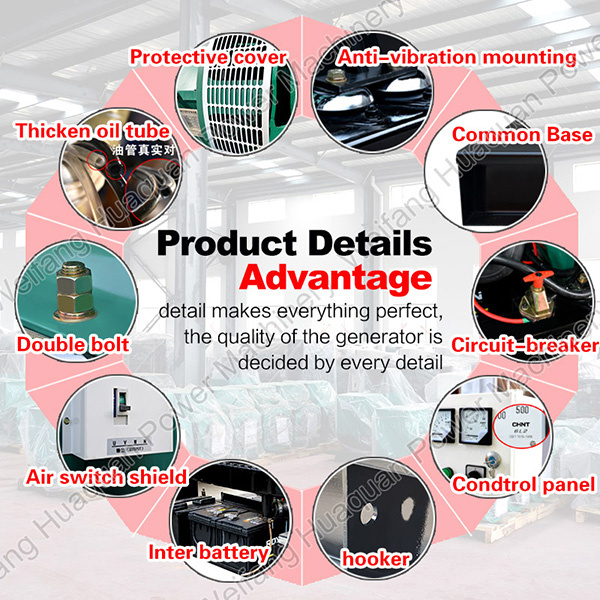

General Feature:

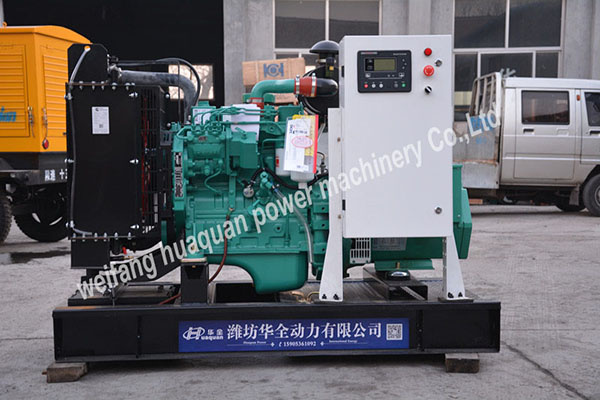

1.Assembled by Cummins diesel engine and Leroy Somer alternator.
2.Three filters as standard, fuel and water separator as optional.
3. Radiator and fan with safety guard.
4.Single bearing alternator IP 23, Insulation Class H.
5.Heavy duty steel as base frame and 8hrs operation base fuel tank.
6.Automatic control panel and 3 poles circuit breaker, internal cable.
7.12V or 24V battery, battery wires.
8.Battery charger and float battery charger as standard supply scope.
9.Optional soundproof canopy, ATS, synchronization panel, movable trailers.
| Specification of Genset | |
| Genset model | HQC30GF |
| Prime power | 30KVA/24KW |
| Standby power | 33KVA/26KW |
| Rated frequency | 60HZ |
| Rated speed | 1800RPM |
Dimension(L*W*H) | 2320*960*1330mm |
| Weight | 1100kg |
| Noise Level | 70dB(A)@7m |
| Specification of Diesel Engine | |

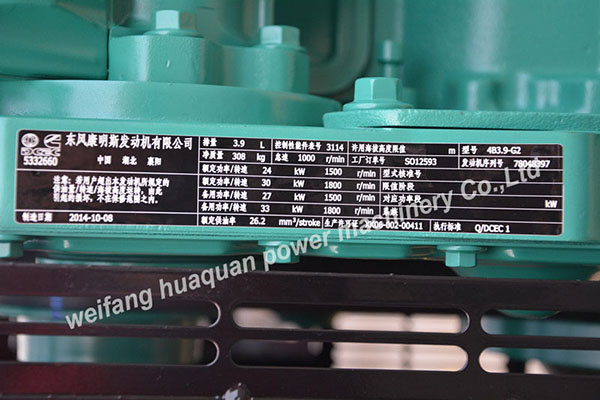

| Engine brand&model | CUMMINS Brand 4B3.9-G2 |
| No of cylinders | 4 |
| Cylinder arrangement | Vertical in-line |
| Cycle | Four stroke |
| Aspiration | Air natural aspirated |
| Bore*stroke | 102×120 |
| Displacement | 3.9 |
| Speed governor | Electronic |
| Cooling system | Forced water cooling cycle |
| Total lubrication system capacity | 11 |
| Fuel consumption at 100% load | 6L/h |
| Starting method | DC24V electrical starting |
| Specificaion of Alternator | |
| Alternator brand&model | Stamford PI 144J |
| No. of phase | 3 |
| Connecting type | 3 Phase and 4 Wires |
| No. of bearing | 1 |
| Protection grade | IP 23 |
| Insulation class | H |
| Altitude | ≤1000m |
| Exciter type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Telephone influence factor(TIF) | ≤50 |
| THF | ≤2% |
| Voltage regulation, Steady state | ≤±1% |
| Transient state voltage | ≤-15%~+20% |
| Specification of Control Panel | |
| Brand&Model | Smartgen HGM 1780 |
| The control panel is equipped with display of voltage, current, frequency, water temperature, oil pressure. | |
| The genset with low oil pressure, high water temperature, over speed and over load protection function. | |
