Huizhou V-Way Energy Technlogy located in Shenzhen guangming, is one of HuiZhou v-way Energy Technology Co., Ltd. Production Base. We are specialized in research, manufacture and sale of Monocrystalline, Polycrystalline, Amorphous solar module and Solar Power(PV) System, Solar street light system.
(Technical parameters)

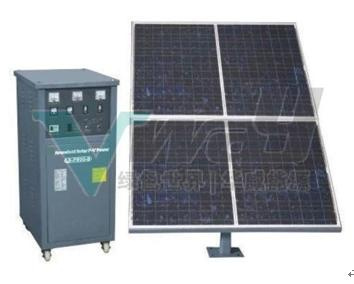

VW-P500-A
LB-P500-B
(Output capacity)
150VA
150VA
(Output waveform)
(Modified wave)
(Modified wave)
(Output current)
0.68A
0.68A
(Precision of output voltage)
220±3%
220±3%
(Precision of output frequency)
50±3HZ
50±3HZ
(Power element)
1
1
(Overload ability)
120%,30(seconds)
120%,30(seconds)
(Work efficiency)
(More than)90%
(More than)90%
(Output voltage)
AC220V
AC220V
(Output frequency)
50HZ
50HZ
(Output power of solar panle)
200W
400W
(Max output current of solar panle)
11.4A
22.8A
(Battery capacity)
200AH
400AH
(Battery voltage)
12V
12V
(Best output power everyday)
644WH
1288WH
(The maximum continuous output power)
2400WH
4800WH
(Size of host case)
580X295X690mm
650X540X1170mm
(Size of solar panel)
963X1616X35mm
963X3232X35mm
(Volume)
0.243m3
0.59m3
(Weight)
117.8KG
249KG
(Price)
8680 RMB/ 1276 USD
15300 RMB/ 2250 USD
Huizhou V-Way Energy Technlogy located in Shenzhen guangming, is one of HuiZhou v-way Energy Technology Co., Ltd. Production Base. We are specialized in research, manufacture and sale of Monocrystalline, Polycrystalline, Amorphous solar module and Solar Power(PV) System, Solar street light system. The production base established in 2003, the first factory takes area 3600 square meter, and the second factory area which on construction, is planed to be reach 6000 square meter. There are 110 technicians in the workshop, 35 administrators and salesman, and 22 in the research team. What's more, there are 13 guys that have the intermediate and senior technical title. At present solar module production capacity is 100MW, solar power system production capacity is 1 million sets by one year. Products are mainly exported to Spain, France, Germany, Italy, Australia, Japan, Korea and African countries. Our products are especially suitable for islands, mountains, deserts, Areas without electricity and the lack of electricity.
In order to keep our vitality and competitive advantage on international market, we have strict controlled for the product quality with the policy of quality. Adhering to the "quality-oriented, control and orderly, continuous improvement, customer satisfaction, " the quality policy, strict accordance with ISO, CE, IEC, and TUV and other international standards for production. Has always been to provide customers with high-quality products and services.
Today, the increasingly serious energy crisis and the greenhouse effect, the development of green energy has become the theme of the times, Solar energy as a clean, sustainable energy solutions, in the twenty-first century as a progressive alternative energy. We will meet the requirements of the times, Efforts to promote and innovate green energy, efforts to improve the living environment of human future.
