| Prod Model: |
3D50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Blade: |
Three Blade |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Fluid Dynamic |
Product Description

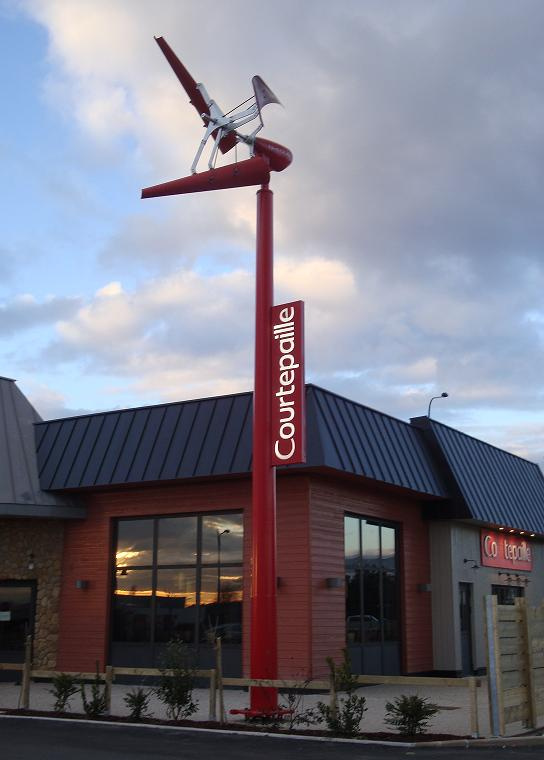

Our product' superiority is: Unique 3D structure, low noise, low rotary speed, wide working speed range, durable and suitable for the working and living Environment.
Specifications
Nominal power out: 1.5kw
Wind turbine weight: 160kg
Rotor diameter: 2.8m
Swept area: 6.3m
Type: HAWT
Blades: 3
Blades length: 1.8m
Nominal rpm: 40 to 400rpm
Rated rpm: 150rpm
Orientation: Self oriented(no rudder)
Nominal wind speed: 2.5-32m/s
Survival wind speed: 50m/s
On grid: Swt+controller box+rectifier+inverter+isolation transformer
Off grid: Swt+controller box+rectifier+battery+inverter+fuse box
Sound level: <35dB
Color: White(other color available)
Overspeed protection: Electrical control
Service life: 20-30year
Zhangzhou NHEOLIS technology Co., Ltd, is a joint venture of ximen kehua hengsheng Co., Ltd and nheolis sas in France. The company currently concentrates on the research and manufacturing of small and medium wind generators and brings in patented technology from the nheolis France. Our products are mainly for the home or commercial use.
