| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |

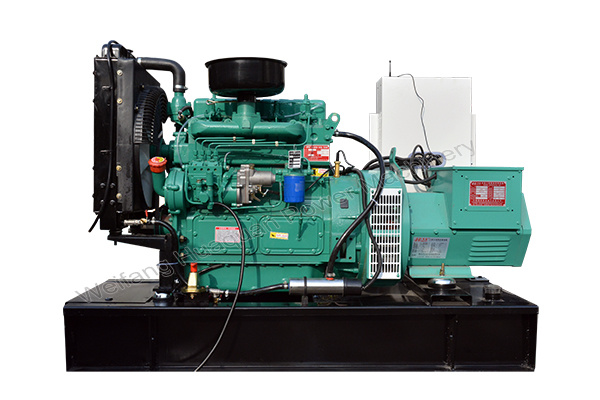

| Prod Model: | HQ30GF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: | 54A |
| Engine: | Weichai |
| Warranty: | 12 Months |
| Tyhpe: | Open or Silent |
| Alternator: | Stamford, Marathon, Lorysomer, Tfw |
| Certificate: | ISO9001, CE |
| Tank Type: | Top Tank, Bottom Tank, Days Tank |
| Genset Type: | Open Type, Silent Type, Waterproof Type |
| Engine Type: | Water Cooled, Air Cooled |
| Type: | Basic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
Safety - Stability - Economy - Sufficient power
1. Our cooperate with famous diesel engine - Cummins, Deutz,UK, Weichai, MTU
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. Solid steel outer skin - 2MM to 4MM steel
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for fork, Water outlet & oil outlet
7. Double open door on both sides of the gensets. Spacious doors can check for every part of the
Output range | 8kw ----2400kw |
Rated Current | 14.4---4334.4A |
Noise level | 65db to 80db @ 7m (soundproof type) |
Engine brand | Cummins,Deutz, Lovol/perkins,doosan , detuz, weichai, shangchai etc |
Engine type | Water cooling, 4 stroke, direct injection |
Alternator | Stamford , Leroy Smoer, marathon , engga etc |
Phase/connecting method | 3 phase 4wire/Y type connection |
type | Brushless , insulation class: H, IP21-IP23 |
self excited or PMG | |
Frequency | 50/60HZ |
Frequency at stable state | 0.5% |
Frequency deviation at instantaneous state | ≤+10% |
Frequency return time | ≤3s |
Voltage deviation at stable state | ≤±1% |
Voltage deviation at instantaneous state | ≤±20% |
Voltage return time | ≤4s |
Voltage modulation | ≤0.3% |
Starting system | DC alternator |
Short circuit protection | MCCB air switch |
Cooling system | Water cooling |
Automatic alarm system | High water temperature |
Low oil pressure | |
Over load | |
Bettery charging failure | |
Operating display | voltage, current and frequency display |
Water temperature ,oil pressure display | |
Fuel level, fuel temperature display | |
Fuel tank | For 8 hours using |
4) Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm
system and arrestor for any situation as the start defeat, the water
is over temperature, the oil pulls down, over speed, over load and
over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
5) Supply scope:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) 12 / 24V starting motor and charge engine
f) Air cleaner, fuel cleaner, oil cleaner
g) Standard control panel
h) MCCB air conservation switch
i) 12 / 24V starting accumulator and Battery line
j) shock absorber
6) Delivery , payment , warranty:
Delivery: open type (15-20 days); silent type (20-30 days).
Payment: T/T or L/C.
Warranty: 1 year or 1000 hours whichever comes first.
7) High Quality, Good Performance, Beautiful Price, Timely Delivery
Small order acceptable. Larger orders enjoy lower unit price
