| Prod Model: |
BCX1600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| 1500kVA: |
Economic |
| Gas Source: |
Gas |
Product Description

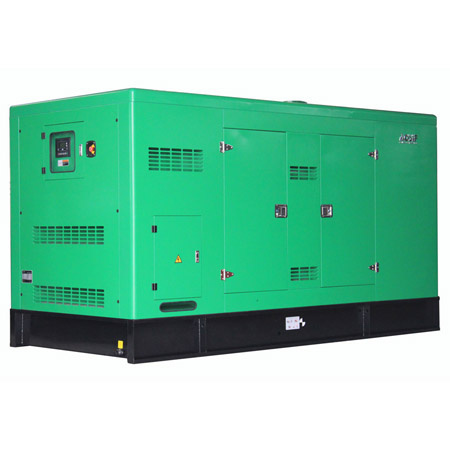

Cummins Silent Gas Generator Set (1600kw)
1. Adopting up-to-date highly capable ignition system, so the engine ignition will be more reliable, punctual, and easier to start. And the ignition plug has longer life.
2. Main control parts are from American Cummins or MTU., the advanced and famous international brand ones, and they will offer the redesigner engine which is more suitable for the gas generating set. To make the gensets more stable and reliable running.
Binshi gas generator has a life of over 30 years which is widely used both at home and abroad.
We also agent the worldwide brands gas gensets: They are the Spain Guascor, American GE Jenbacher, Germany MAN, MWM
3. The range of power: 20-1200KW, Many Chinese factory can not reach this peak at present. Due to Binshi owns several professional, skill and rich innovative R&D engineers. We will continue to develop more practical and economical alternative energy generators.
4. Our machines are Economical and low-cost running:
A>low oil onsumption: 0.3-1.45g/kw. H, (according the power)
B>electrical efficency: 39%
C>longer maintenance time: More than 35000h for the 1500rpm engine.
5. Several gensets can be parallel connection or parallel net, which can increase or adjust the total power range. In addition, the gensets can take maintenance in different times, which will make little influence to the normal performance of gensets.
Main characteristics of BS gas generating sets:
1. Good quality:
A>. Standard configuration: Commins engine, Farady alternator.
B>. Mixing system. We used USA IMPOC. The world top and famous brand. To make sure the gas and the air mixed sufficiently. The gas was burned entirely, so we have more efficiency.
C>. Adopting up-to-date highly capable ignition system, so the engine ignition will be more reliable, punctual, and easier to start and the ignition plug has longer life(more than 1000 hours).
D>. Our controller brand/model brand is deepsea, It's good quality and intelligent.
E>. We add the back-fire relief valve, BZR etc to make the genset working more safely.
2. Efficiency, Economical and low-cost running:
A>. The genset electrical efficency: 38-39%
B>. It can generate electricity 1.9KW. H/1 cube standard biogas(CH4>50%); 3.8kw. H/1 cube natural gas (CH4>90%)
C>. Low oil onsumption: 0.3-1.25g/kw. H, (according to the power)
D>. Longer overhaul time: More than 40000h for the 1500rpm engine.
E>. Commins genset's actual power can get to 95% of the rated power.
3. Longer lifetime:
All this above make our gensets has a life of over 30 years.
False False Bitmap
|
Binshi Gas Generator Parameter |
|
|
BS Model |
Rate Power(KW) |
Rate Power
(KVA) |
Engine no. |
Born*Stroke(mm) |
Intake Type |
Rated voltage(V) |
Displacement(L) |
Oil comsumption(g/KW.h) |
Exhaust gas temp |
Dimension
L*W*H(mm) |
Weight
(kg) |
|
BCF24-G |
24 |
30 |
C4L102 |
102*120 |
Natural |
400/230 |
3.9 |
≤0.5 |
≤600 |
1750*695*1100 |
900 |
|
BCF50-G |
50 |
62.5 |
C6L102 |
102*120 |
Natural |
400/230 |
5.8 |
≤0.5 |
2120*860*1430 |
1200 |
|
BCF80-G |
80 |
100 |
C6L114 |
114*135 |
Natural |
400/230 |
8.3 |
≤0.5 |
2460*850*1290 |
1750 |
|
BCF120-G |
120 |
150 |
C6L140 |
140*152 |
Natural |
400/230 |
14 |
≤0.5 |
2900*1000*1600 |
3050 |
|
BCF160-G |
160 |
200 |
C6L140T |
140*152 |
Turbocharged |
400/230 |
14 |
≤1.0 |
≤580 |
2900*1000*1600 |
3120 |
|
BCF250-G |
250 |
312 |
C6L159T |
159*159 |
Turbocharged |
400/230 |
18.9 |
≤1.0 |
3400*1700*1780 |
4000 |
|
BCF500-G |
500 |
625 |
C12V159T |
170*195 |
Turbocharged |
400/230 |
35.41 |
≤1.0 |
4400*1860*2400 |
4600 |
|
BCF650-G |
650 |
812.5 |
C16V159T |
170*195 |
Turbocharged |
400/230 |
35.41 |
≤1.0 |
4850*1930*2400 |
7220 |
