Engine:
Cummins
Power Range:
27.5kVA-1650kVA
Warranty:
1 Year or 1000 Hours
Alternator:
Faraday, Stamford, Engga Ect.
Insulation Class:
H
Controller:
Deepsea, Harsen
Protection Class:
IP23
Regulator:
AVR
Generator Set Type:
Open Type/Silent/Container/Trailer
Starting Battery:
24V Free Maintenance Type
Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

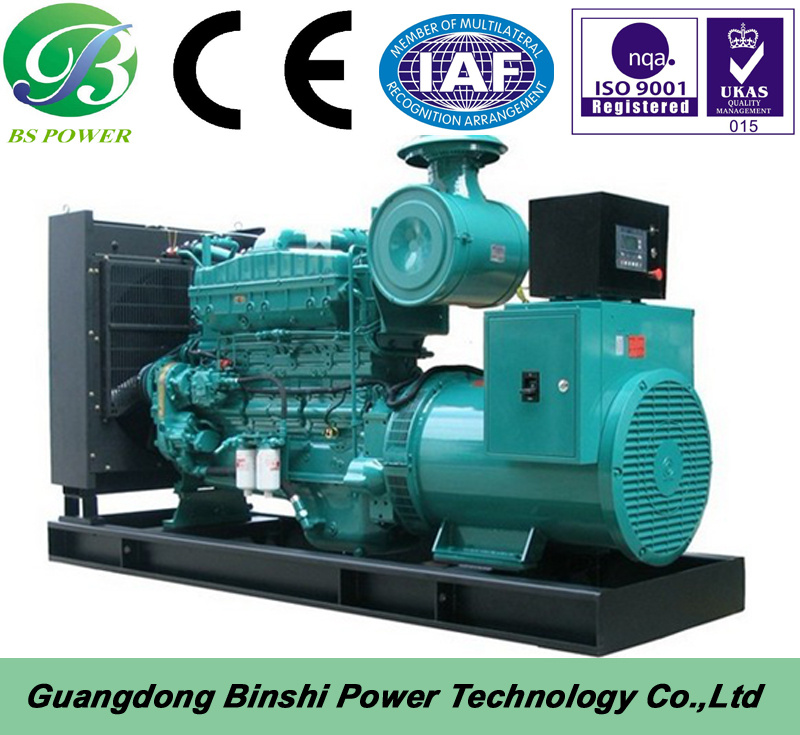

40kVA-2500kVA Electric Start Diesel Power Generator with Cummins Engine (CE/ISO/SGS Approval)
Binshi diesel generator set power range: 40kVA-2500kVA.

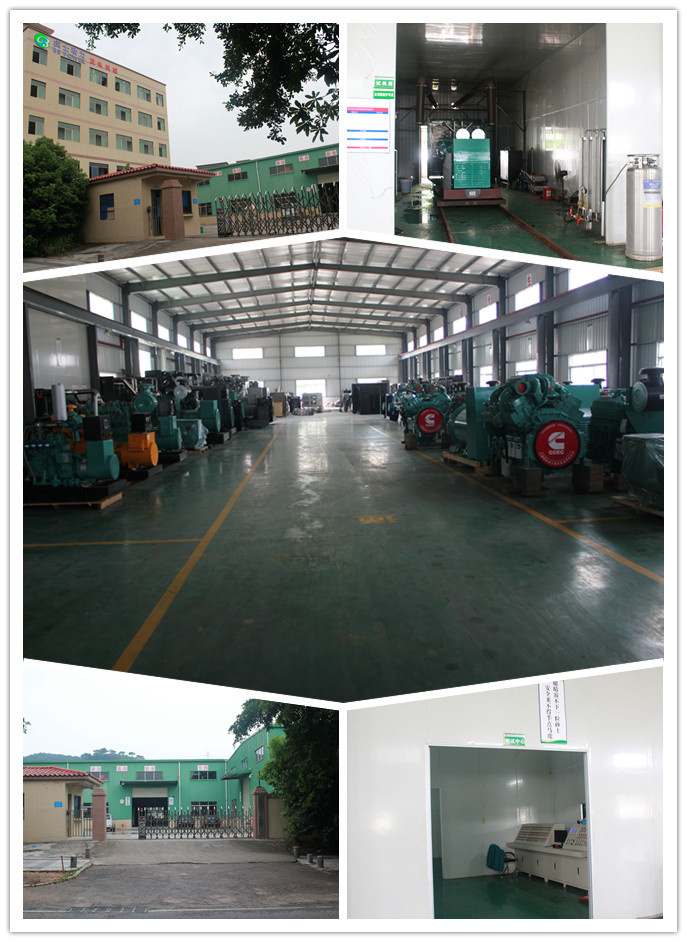

GUANGDONG BINSHI POWER TECHNOLOGY CO.,LTD which was established in 2002, we are a leading and professionalDiesel, Natural gas,Methane,Biogas,Biomass gas,Gasification gas, Landfill gas, LPG,LNG,CNG,duel-fuel and High voltage generator set factory in China. Our enterprise has built two production bases and service centers across the country, one is the South China production base and after-sales service center which is located in Dongguan city, Guangdong Province which is the famous manufacturing city in the world, another is located in Middle China, Wuhan city, Hubei Province, our total registered capital is USD20 million. The two production bases cover an area of 20, 000 square meters, owns more than 200 employees, in which 60 percent is engineering technicians,and has numbers of senior engineers. Cummins Diesel Generator Set is a set of complete equipment for electrical power supply. Cummins engines with high quality alternators and advanced full automatically control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.
Cummins Diesel Generator Parameter: Output: 400V/230V Frequency: 50Hz/60Hz Power Factor: 0.8(lagging) Protection Standard: IP21-IP23 Model of Connection: 3 phase 4 lines Insulation Grade: H Frequency Drop(%): ≤ 0.5 Transient state frequency deviation(%): (advertised power) +10~-7 Frequency Recovery Time(S): ≤ 3 Voltage Recovery Time(S): ≤ 4 Waveform Distortion(%): ≤ 5
Features:
Compact structure,reliability,good performance,a world famous brand
Features: BS-Cummins diesel generator set
Frequency: 50Hz/60Hz
Engine: Cummins (We also have Perkins,MTU,Doosan and any other)
Guarantee for one year or 1000 hours (according to whichever reach first)
from ex-factory date. During the guarantee period, we will provide the free
easy-damaged spare parts for problems caused by our quality of production or raw materials,
except the damage caused by customer's incorrect manmade operation.
After expiration, our company will provides cost spare parts maintenance for gen-set.
Our Service:
1. Pre-sales promise
We will dispatch senior engineer to our guests' locate to investigate in time.Give our guest clear suggestion and guidance and propose feasible solutions,the details list of expense.
2. Selling promise
Our company is based on "Integrity,Professional,Quality,Service" to our guest excellent and efficient serve throught our rapid service system.
3. After-sales promise
Our company have more than hundreds of excellent gas,diesel generator set technic and maintain service staff.They will provide you with comprehensive and satisfied service to make your generator set more stable,reliable,saving-energy and efficient to operate.
Welcome clients from all the world come to visit and give us guidance in our factory
Model
BCX1100
Diesel Generator Specifications
Rated Power (KW/KVA)
1100 / 1375
Standby Power (KW/KVA)
1200 / 1500
Rated Voltage (V)
230 / 400
Frequency (Hz)
50
Rated current (A)
1894
Steady State Voltage Adjustment
≤ ± 0.5%
TransientStateVoltage Adjustment
≤ ± 20%~-15%
Voltage Recovery Time (S)
≤ 2
Voltage Fluctuation Ratio
≤ 0.5%
Voltage Wave Distortion Ratio
≤ 5%
Steady State Frequency Adjustment
≤ ± 5%(0-5 adjustable)
TransientStateFrequency Adjustment
≤ +10%~-7%
Frequency Recovery Time (S)
≤ 3
Frequency Fluctuation Ratio
≤ 0.5%
Starting Mode
DC 24V
Noise level dB(A) @ 1 meter
≤ 105
Overall Dimension(mm) (L*W*H)
5500*2000* 2250
Weight (kg)
9800
Standard Atmosphere
GB1105, ISO3046
Altitude (m)
≤ 1000
Ambient Temperature(º C)
≤ 40
Relative Humidity (%)
≤ 95
Diesel Engine Specifications
Engine Model
Chongqing Cummins KTA50-G8
Type
4-Stroke, V, 16-Cylinder
Cooling Mode
Radiator fan cooling for closed-type cooling mode
Bore x Stoke(mm)
159 *190
Displacement (L)
50.3
Compression Ratio
14.9: 1
Engine Power
1429KW @1, 500 rpm
Fuel
Diesel
Oil Consumption (L/h )
310
Max. Exhaust Back Pressure (kPa)
6.7
Combustion Air Flow (m³ /min)
102
Coolant Capacity (L)
400
Lubricant Oil Capacity (L)
204
Governing Method
Electrical
Alternator Specifications
Alternator Model
Stamford PI734C
Rated Capacity (KW/KVA)
1240 / 1550
Power Efficiency (%)
95.4
Power Factor
0.8
Insulation Class
H
Stator Winding
2/3
Over-speed
2250 rpm
Short-circuit Current
5400 Amps
Control System
Brand
Deepsea from U. K.
Model
DSE7320
Capacity
Over-speed, high water temperature, low oil pressure, start failure, hand start control, distal start control and ect.
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
