| Price: | US $ 200/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |
| Prod Model: | 300W 400W 600W 800W 1200W |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: | China Supplier Alternative Energy Wind Generator |
| Blades: | 5 PCS Nylon Fiber Glass |
| Body: | Cast Aluminum |
| Mount: | Flange Connection |
| Certificate: | ISO9001:2008 ,CE, RoHS |
| Warranty: | 3 Year Limited Warranty |
| Overspeed Protection: | Electromagnetic & Blade Aerodynamic Braking |
| Rotating Shaft: | Horizontal |
| Stress Way Of Blade: | Resistance |
| Number Of Blade: | Multiple-Blade |
| Phase: | Three Phases |
| Power: | 300W to 1200W |
2.Stainless steel screw bolt from "THE".
3.Primary aluminum housing, not secondary aluminum.
4. Low start-up wind speed.
5.High-efficient Generator
6.Innovative Noise Reduction Technology
7.Perfect Wind Wheel System
8.Unique Design Of The Rudder
9. Damp-proof, sand-proof, Anti-rust, Anticorrosion
10 .Easy installation, Free of maintenance, Long lifespan over 15years.
Specification: China supplier alternative energy wind generator
| Model | Mini300W-3 | Mini300W-5 |
| Rated power | 300 watts at 11 m/s | |
| Max Capacity | 350watts | |
| Voltage | 12, 24 VDC | |
| Blades | 3 Pcs Nylon Fiber | 5 Pcs Nylon Fiber |
| Start-Up Wind Speed | 2.0 ( m/s) | 1.5 ( m/s) |
| Cut-In Wind Speed | 2.5(m/s) | 2.0(m.s) |
| Rotor Diameter | 1.16 m | 1.21m |
| Weight | 6.2 kg | 7.1 kg |
| Shipping Dimensions | 790x 430x 220 mm (8 kg) | 790x 430x 220 mm ( 9.3 kg) |
| Mount | 1.9 inch (48 mm) OD pipe | |
| Turbine Controller (Optional) | Maximum Power Point Tracking, MPPT | |
| Body | Cast aluminum | |
| Overspeed Protection | Electronic torque control | |
| Working temperature | -20ºC~ 120ºC | |
| Certificate | ISO9001:2008 ,CE, RoHS | |
| Survival Wind Speed | 50 m/s | |
| Warranty | 3 year limited warranty | |
| Model | MAX 400W | MAX 600W | MAX 800W | MAX 1200W | |
| Rated power | 400W | 600W | 800W | 1200W | |
| Max power | 450W | 750W | 950W | 1300W | |
| Rated voltage | 12/24 VDC | 24 VDC | 48 VDC | 48VDC/110VDC | |
| Rated current | 33A/16.7A | 25A | 16.7A | 25A/10.9A | |
| Rated Rpm | 650 | ||||
| Blades | 5 Pcs Nylon Fiber glass | ||||
| Rated wind speed | 11m/s | 12m/s | |||
| Start-Up Wind Speed | 1.5 ( m/s) | 1.5 ( m/s) | 1.5 ( m/s) | 2.0 ( m/s) | |
| Cut-In Wind Speed | 2.0 (m/s) | 2.0 (m/s) | 2.0 (m/s) | 2.5 (m/s) | |
| Rotor Diameter | 1.7 m | 1.7 m | 1.8 m | 2.0 m | |
| N.W | 23KG | 28.5KG | 30KG | 36KG | |
| G.W | 28KG | 33KG | 35.5KG | 41KG | |
| Shipping Dimensions | 1690*540*290mm | 1690*540*290mm | 1690*540*290mm | 1890*540*290mm | |
| Mount | Flange connection | ||||
| Turbine Controller | MPPT wind solar hybrid controller | ||||
| Body | Cast aluminum | ||||
| Overspeed Protection | Electromagnetic & blade aerodynamic braking | ||||
| Working temperature | -20ºC~ 120ºC | ||||
| Certificate | ISO9001:2008 ,CE, Rohs | ||||
| Survival Wind Speed | 50 m/s | ||||
| Warranty | 3 year limited warranty | ||||

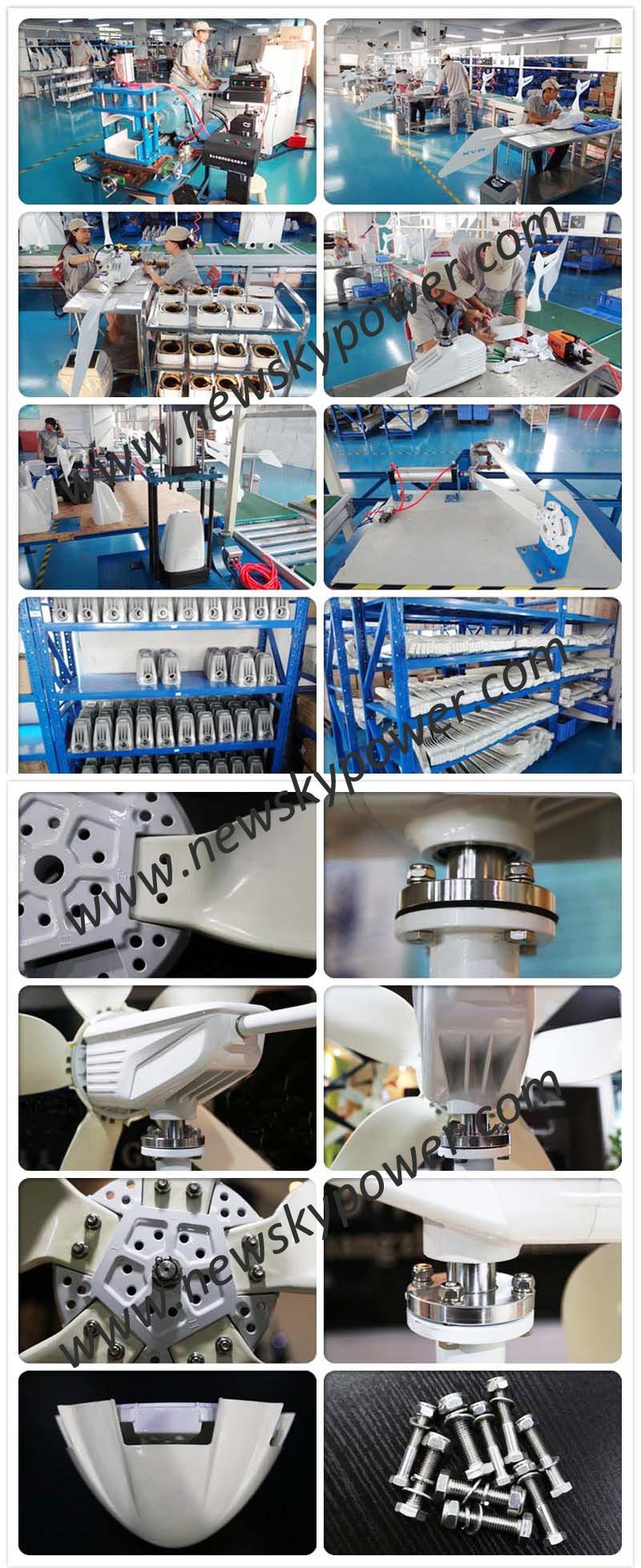

Workshop Show: China supplier alternative energy wind generator
FAQ:
1,Could you provide pole?
Normally, we don't supply pole.
Most of our clients purchase pole from local, it will be cheaper if without shipping cost.
It just needs a steel pipe and easy to configure.
2,Does it work on foreland?
Yes, it is suitable for marine. The shell material is Aluminium alloy , the inside components has anti-corrosion treatment.
3,Do you provide the spare parts?
Yes,our company could provide the spare parts such as blades and other components in your second order .Thanks.
4,Is it convinient for you if we visit your factory ?
Welcome to come to China and visit our company, please kindly inform us before your visit, thanks.
