Model:
Mini300W Small Wind Power Generator
Max Power:
350W
Blades:
3 or 5
Start-up Wind Speed:
1.5m/S
Cut-in Wind Speed:
2m/S
Mount:
1.9 Inch (48 Mm) Od Pipe
Body:
Cast Aluminum
Survival Wind Speed:
50 M/S
Certificate:
ISO9001:2008 ,CE, RoHS
Warranty:
3years
Number Of Blade:
Three Blade
Rotating Shaft:
Horizontal
Stress Way Of Blade:
Resistance
Phase:
3phase Generator
Product Description

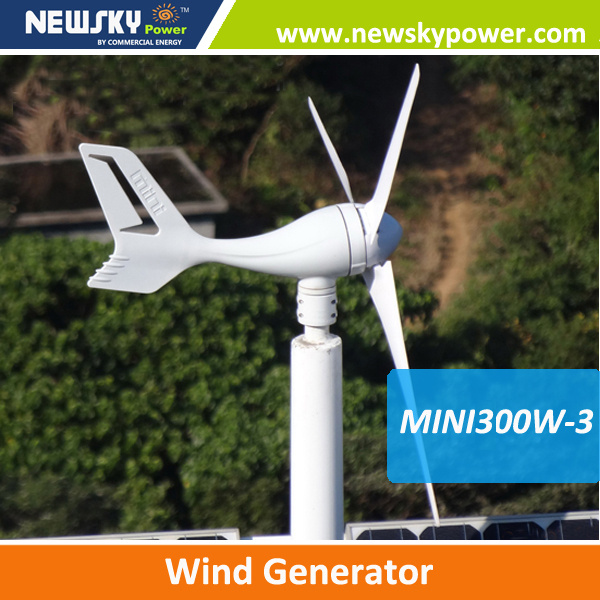

China NEWSKY POWER mini300W small wind power turbine
3 / 5blades,2models for choice
Bearing from "SKF" Sweden.
Stainless steel screw bolt from "THE".
Primary aluminum housing, not secondary aluminum.
Low start-up wind speed
High-efficient Generator
Perfect Wind Wheel System
Unique Design Of The Rudder
Damp-proof, sand-proof, Anti-rust, Anticorrosion
Easy installation, Free of maintenance, Long lifespan over 15years.
Model
Mini300W-3
Mini300W-5
Rated power
300 watts at 11 m/s
Max Capacity
350watts
Voltage
12, 24 VDC
Blades
3 Pcs Nylon Fiber
5 Pcs Nylon Fiber
Start-Up Wind Speed
2.0 ( m/s)
1.5 ( m/s)
Cut-In Wind Speed
2.5(m/s)
2.0(m.s)
Rotor Diameter
1.16 m
1.21m
Weight
6.2 kg
7.1 kg
Shipping Dimensions
790x 430x 220 mm (8 kg)
790x 430x 220 mm ( 9.3 kg)
Mount
1.9 inch (48 mm) OD pipe
Turbine Controller (Optional)
Maximum Power Point Tracking, MPPT
Body
Cast aluminum
Overspeed Protection
Electronic torque control
Working temperature
-20ºC~ 120ºC
Certificate
ISO9001:2008 ,CE, RoHS
Survival Wind Speed
50 m/s
Warranty
3 year limited warranty
