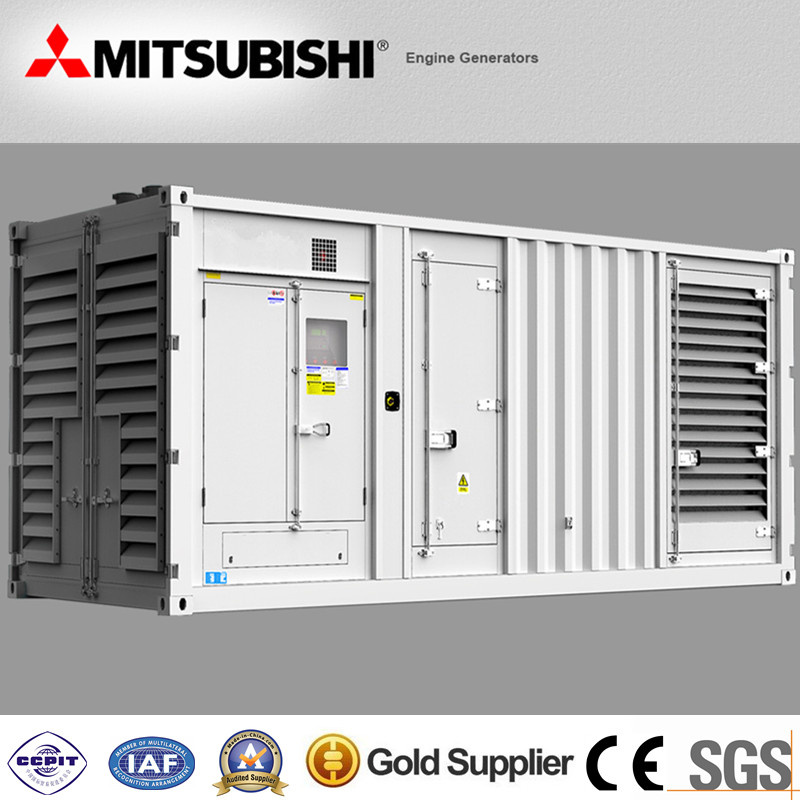

CE Japan 800kVA Mitsubishi Diesel Power Silent Generator

Prod Model:	MT880GF
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Engine Brand:	Mitsubishi
Genset Power:	800kVA/640kw
Color:	Green/Red/Blue/Grey/Yellow etc
Controller:	Deepsea/Harsen
ATS:	Optional
Soundproof:	Optional
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Product Description

At SUTER POWER, we offer a full line of Mitsubishi diesel generators with high quality and built-in reliability from 600kW to 2000kW.Mitsubishi has designed and manufactured quality products for more than 100 years to the industry's toughest standards. Mitsubishi Generators are backed by a limited two-year commercial, rental and consumer warranty.Mitsubishi Generators are fuel efficient and have one of the lowest noise levels in the industry.For further information about Mitsubishi Generators please contact. Features of diesel generators by Mitsubishi Engine:

Specifications
Standby Ratings:	880 kVA / 704 kW
Prime Rating:	800 kVA / 640 kW
Hertz	50 Hz
Voltage	400 / 230 V
Engine Manufacture	Mitsubishi
Engine Model	S12A2-PTA
Cylinder Arrangement	12 V
Aspiration Method	Turbocharged
Engine Max Power at Rated RPM:	724 kW at 1500 RPM
Fuel Consumption at
100% load	166.24 L/h
75% load	125.46 L/h
50% load	88.31 L/h
25% load

1.International Warranty Service
2.Short delivery time, as we always have Mitsubishi engine in stock
3.With ISO9001 & CE certification
4.Durability & Low Noise Mitsubishi Engine
5.Coupled with Stamford alternator or Chinese alternator(Mecc,Leory-Somer,Marthon as optional)
6.Perfect after-service network
7.Low Exhaust Emission
8.Mechanical or Electric governor with CAN-bus communication
9.Rigorous test including 50% load,75% load,100% load and 110% load

Features
Generator Set
Complete system designed and built at ISO 9001 certified facilities
Factory tested to design specifications at full load conditions
Engine
Governor, Electric
Electrical system, 24 VDC
Cylinder 6,Turbocharged
Generator
Insulation system, class H
Drip proof generator air intake (NEMA 2, IP23)
Electrical design in accordance with BS5000 Part 99, EN61000-6, IEC60034-1, NEMA MG-1.33
Control system
Display	Protecting Functions
Generator Voltage	Over Frequency / Under Frequency
Generator Frequency	Over Voltage / Under Voltage
Battery Voltage	Over Current
Engine Speed	Over Speed / Under Speed
Engine Oil pressure	Low Oil Pressure
Generators Run-time hrs	High Coolant Temperature
Engine Coolant temperature	Failure To Start / Failure To Stop
Load Current	Battery Charger Failure
Warranty
1 Year / 1,000 Hour Limited Warranty(Whichever comes first)

Standard configuration diesel generators by Mitsubishi engine:
1) Volvo Penta engine
2) Mecc alternator(Stamford,Leory-Somer & China alternator for option)
3) Deepsea DSE7320 or ComAq control panel with AMF fuction,ATS for option
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank(for the genset≤650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery and battery charger
8) Industrial silencer and flexible exhaust hose


WHY CHOOSE US:
Reason 1:
Reliable Manufacturer:
As a specialized diesel generator manufacturer, its high quality diesel generators have been working well in many fields including railways, oil fields, Schools, hospitals, industries, tall buildings, sea ports and military bases etc.Meanwhile we attach importance to environment protection persistently, and also is one of the few companies which strictly follow ISO14001 Environmental Management System in diesel generators manufacturing industry.Nowadays, with great enthusiasm and persistence efforts, all of us are working toward the goal of being one leading enterprise in the international lines
Reason 2:
High quality:
As a specialized diesel generator manufacturer, we have a quality control and inspection system to monitor the whole process from raw materials to delivery, only raw materials that passed our sophisticated tests can be put into production.Before products departure, each diesel generator must be tested with no load, with load, overload.Our quality system is even stricter than both domestic and abroad standards:GB/T2820, GB1105, YD/T502, ISO8525-3, ISO3046, ISO8525.
Reason 3:
Low cost:
As a specialized diesel generator manufacturer, we have good long-term relationship with our reliable Engine & Alternator partner.Meanwhile, most parts of diesel generator are manufactured by ourselves, we design and manufacture control system, soundproof canopy, trailer etc according to our clients' needs.
Reason 4:
After-sell service:
1.We are available for a 24-hour Tel or Email service, you can leave us a message whenever you want.
2.We provide one-year or 1000 hours running Guarantee for all the products we supplied.
3.We would like to send our technicians abroad for installing the generator sets if required.
Adhering to the motto of "24hrs Power Supply", we will always stay with your needs.
