Prod Model: |
GNC125GF |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine Body: |
Cummins |
Genset Power: |
125kVA/100kw |
More Certificate: |
UL, Cu |
Governor: |
Bosch |
Valve: |
Italy Madas |
Gas Source: |
Gas |
Certification: |
CSA |
Product Description

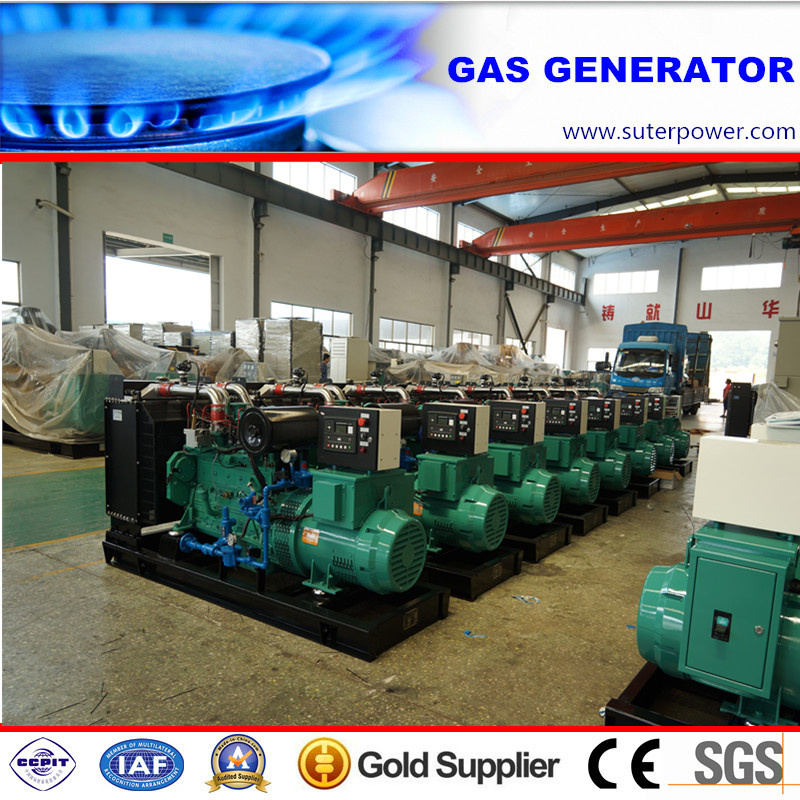

At Suter Power,we offer a full line of Gas Generator include LNG Gas Generator,CNG Gas Generator,Biogass Generator and Natural Gas Generator with high quality and built-in-reliablity from 20kW to 120kW.
At Suter Power,we adopt CUMMINS ENGINE BODY with international famous Germany BOSCH engine govenor,USA IMPCO MIXER,ITALY MADAS FILTER and pressure-regulaing Valve etc with our professional engineer team to garantee our Gas Generator quality.
For more information about Gas Generator,please contact
General Data |
Standby Ratings: | 125 kVA / 100 kW |
Prime Rating: | 110 kVA / 92 kW |
Hertz | 50 Hz |
Voltage | 400 / 230 V |
Fuel type | Natural Gas,CBM,Biogas,LNG,CNG |
Methane content | MZ >=70 |
Temp of Mixture cooler | < 50ºC |
Oxycarbide Nox(mg/Nm3) | With Euro Standards(<= 500 mg) |
Standards | ISO3046,ISO8528,GB2820,CE,CSA,UL,CU |
Methane Volume content | >=50% |
Hydrogen sulfide H2S | <=20 mg/Nm3 |
Start type | DC 24V |
Gas consumption |
100% Load | 30.5 Nm3/h |
75% Load | 23.8 Nm3/h |
50% Load | 6.4 Nm3/h |
Test Condition |
Air intake temp | 25ºC |
Air intake pressure | 100Kpa |
Fuel type | Natural Gas |
Air intake resistance | 254 mmHg |
Exhaust back pressure | 76 mmHg |
Lubricating Oil | standard |
Features of Gas generators with Cummins Engine body:
1.International Warranty Service
2.Short delivery time, as we always have in stock
3.With ISO9001 & CE certification
4.Durability & Low Noise Cummins Engine
5.Coupled with Stamford alternator or Chinese alternator(Mecc,Leory-Somer,Marthon as optional)
6.International famous brand parts like governor,valve etc
7.Low Exhaust Emission
8.Rigorous test including 50% load,75% load,100% load and 110% load
Gas Engine |
Engine Model | JY6BTAA5.9G110 |
Cylinder Arrangement | 6 In line |
Aspiration Method | Turbocharged |
Engine Power at Rated RPM: | 110 kW at 1500 RPM |
Displacement | 5.9 L |
Bore×Stroke | 102×120 mm |
Compression Ratio | 10.5:1 |
Exhaust temp | 498ºC |
Gas inlet pressure | 50-240 mbar |
Ignition System | KINGBAND Engine Control System |
Governor | Germany BOSCH |
Governor ratio | <=1% |
Gax Mixing System | USA IMPCO MIXER |
Spark Plug | Germany BOSCH |
Fuel Filter | Italy MADAS |
Pressure-Regulating Valve | Italy MADAS |
Gas safety electromagnetic valve | KINGBAND |
Air Intake System |
Air Flow Rate | 110 L/sec |
Exhaust System |
|
Max Exhaust Back Pressure | 76 mmHg |
Lubricating System |
Mini Oil capacity | 16 L |
Mini Oil pressure | 207Kpa at full load,69Kpa at idle speed |
Oil grade | Above 15W-40CF |
Cooling System |
Coolant capacity | 11 L(only Engine) |
Max coolant temp | 105ºC |
Cooling type | Water cooled |
Thermostat open temp | 83-95ºC |
Standard configuration Gas generators by Cummins engine:
1) Gas engine
2) Mecc alternator(Stamford,Leory-Somer & China alternator for option)
3) Deepsea DSE7320 or ComAq control panel with AMF fuction,ATS for option
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank
6) Anti-Vibration Mounted System
7) Battery and battery charger
8) Industrial silencer and flexible exhaust hose
