| Price: | US $ 1222-15555/Set |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Set |
| Pay Type: | T/T,Paypal,Money Gram,Western Union |
| Prod Model: | SP500-SP20KW |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Name: | Solar Electricity System |
| Use Way: | Home/Industrial Use |
| Capacity: | 1-10kw |
| Output Voltage: | 110/120/220/230V |
| Output Frequency: | 50/60Hz |
| Controller Size: | 20-100A |
| Inverter Output Wave: | Pure Sine Wave |
| Inverter Capacity: | 1-10kw |
| Warranty: | 3years |
| Optional: | off Grid Wind System/on Grid Wind System |
| System: | Off-Grid system |
| Off grid solar power supply system- SP-10KW | |||
| System Basic Information | Solar panel rated output power: 8KW Suitable for daily power consumption : < 32KWH Allowable max loads power : 12KW | ||
| Solar panel | type: mono solar panel(poly optional) Max power : 200w Vmp: 28.8V Voc: 36.4V Imp 8.3A weight: 20KG Size : 1172*983*35mm 25 years life time (CE TUV) Connect way: 4pcs panels in series as a string, 10 strings in parallel | QTY 40pcs | |
| PV Array Combiner | Model: H10T-96v Multiple PV strings inputs Simplify wiring between PV array and controller, protections to controller , features: Wide range of DC input voltage Reliable thunderstorm& surge protection | QTY 1pcs | Notes: 1. pictures show are for reference. 2. power output data is based on areas with daily average peak power shine of 4.5hrs 3. the battery capacity is designed for power storage of 1.5-2 days PV output 4. solar panel rack can be specially designed based on site condition Remark: 1)solar panel have 5 years warranty; 2)other parts have 2 years warranty; 3)ship the free parts for service(best service in china) 4)Accept OEM 5)MOQ: 1 set |
| Hybrid solar Inverter | Inverter power: 10kw/96v MPPT Controller model: 96v/100A Charging efficiency; 90%-95%, LCD display inverter and controller info With AC charger built in Output: 110v, 120v, 220v, 230v, 240v(optional) Product size: 590*470*730mm Weight: 107KG | QTY 1pc | |
| Battery | Capacity: 12V/200AH full sealed Solar power lead-acid battery, Service life: 5-6 years , Size: 522*238*218mm Weight: 58KG Connect way: 8 connect panels in series as a string, 4strings in parallel | QTY 32pcs | |

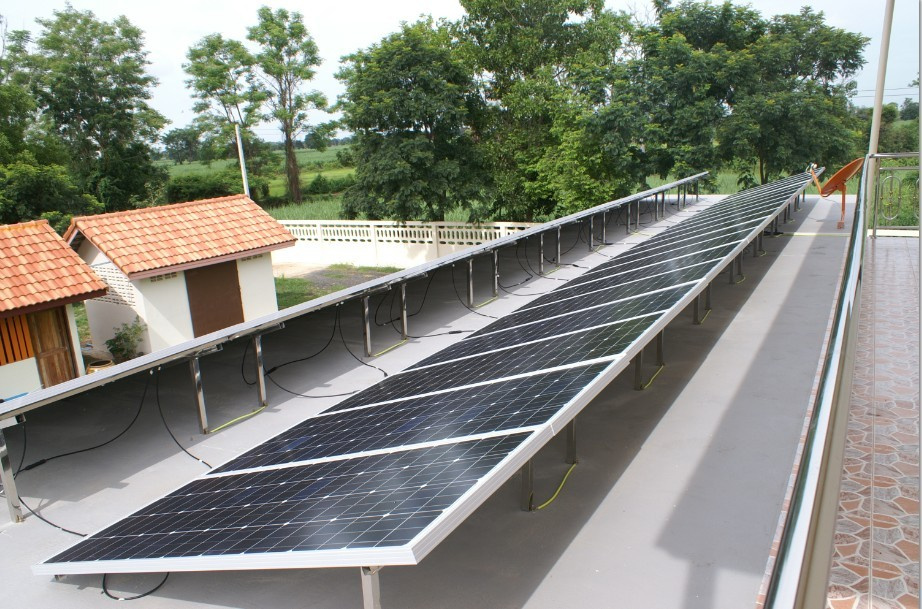

| Panel ground rack | Ground rack installation including complete fittings (other type of rack can be customized as per client' s requirement ) | QTY 1set | |
| Cables | 12mm2 cables(one red and one black) International standard, with specification suitable for solar system | QTY 200m | |
