Frequency(Hz):
50/60
Rated Power(Kw/kVA):
450
Output Current(a):
720
Voltage(V):
400/230
Rated Speed(Rpm):
1500/1800
Phase:
Three Phase, Four Wires
Excitation Type:
Brushless
Intake Method:
Turbocharged
Cylinder No.:
12
Stroke:
Four Stroke
Type:
Basic Diesel Generator
Cooling Method:
Water Cooling
Installation Method:
Fixed
Output Type:
AC Three Phase
Product Description
Company information Weifang Huaquan Power Machinery Co.Ltd is in economic technical development area of Weicheng Shangdong Province ,professsional produing, running,developing terrestrial and marine diesel generator, natural gas generator and automatic pumps.The series of our product including lots of famous brand in the world,such as Cummmins, Steyr,deutz, Volvo,Ricardo ect.The kilowatt is from 8kw to 1500kw.Alternator are chosen as Stanford,Leroy Somer,Engga,Qianghui, and we have already registered as the name of Huaquan Diesel Generator set.We also pay attention to building after-sale service ,solved lots of customers' problems .Our product are sold to more than 30 countries and areas such as Africa ,Europe ,West Asia and Southeast Asia.

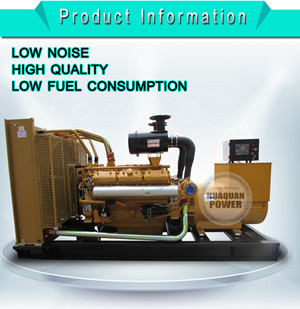

Product information
:450KW Diesel Generator: Power prime:450kw(563kva),Max Power:495kw(619kva) Engine Model Brand:Shangchai 12V135BZLD-2 Alternator:China Stanford Brushless Speed adjustment : Electrical Type:Mid-water cooled and Turbocharged
450KW DIESEL GENERATOR DETAILS
Model
HQS450GF
Start Method
DC 24
Generator Prime Power(KW/KVA)
450/563
Output Current(A)
720
Standby Power(KW/KVA)
495/619
Voltage(V)
400/230
Power Factor
0.8
Phase
Three phase, Four Wires
Frequency(Hz)
50
Weight(kg)
4500
Size(mm)
L
W
H
3600
1550
1850
Diesel Engine Data
Manufacturer
Shangchai Engine
Model
12V135BZLD2
Rated Speed(Rpm)
1500
Diesel Engine Max Power(KW/H)
445
Cylinder No.
12
Arrangement Type
V type
Bore×Stroke(mm)
135×150
Displacement(L)
10
Intake Method
Turbocharged
Compression ratio
16.0:1
Fuel
Diesel Fuel
Full Load Consumption(g/kw.h)
≤208
Oil Capacity(L)
65
Start Method
Electrical
Engine Cooled Method
Radiator Max 40ºC,fans are driven by belt with safety guard.
Alternator Data
Manufacturer
China Stanford
Model
XN450
Rated Power(KW/KVA)
450/563
Excitation Type
Brushless
Insulation Class
H
Protection Grade
IP22
Unload Voltage Adjustment
≥±5%
Stable Voltage Adjustment
±1%
Efficiency (%)
94.8
Voltage Control Method
AVR
Shangchai Diesel Generator Set Features:
1. Diesel generator adopt the Shangchai series diesel engine as the main power support. Engine charactors: Injection, Inline.Four stroke,water-cooled(Mid-water cooled)
2. Engine produced by Shanghai diesel engine company located in Shanghai , China.
3. 135 series are used in ships (including main and auxiliary engines), vehicles (including off-road vehicles, load-carrying vehicles and railway vehicles), engineering plant (including excavators, bulldozers, scrapers, cranes, road rollers, well drills and air compressors), generating equipment, agricultural irrigation and other power matches.
4. Alternator, adopt option brand like China brush alternator, Stamford, Faraday, Marathon,Leroy-somer, Lanzhou,etc so famous brands alternators.
5.This series diesel generator is the special type we promotion for abroad market, and make the highly quality level than other configurations.
6.Diesel generator including abersorber system,and protect the generator during its working time.
7.All generator surface after acidification , and suitalbe wet condtion working .
8.Standard control panel design basic the operation,and easy show all meters you care during generator working time.
9.Structure: adopt the high strong steel make the under frame, and easy moved and stable long life.
10.We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.
Company strength Huaquan power implement the concept "quality is the survival of the foundamental ".The company has passed the ISO9001-2000 quality system certification and also has independent import and export right. And also has passed the advanced HSJF-3 auto alternator performance testing equipment which has a strict test to each performance index of diesel generator to insure 100% ex factory pass rate.
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
