| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

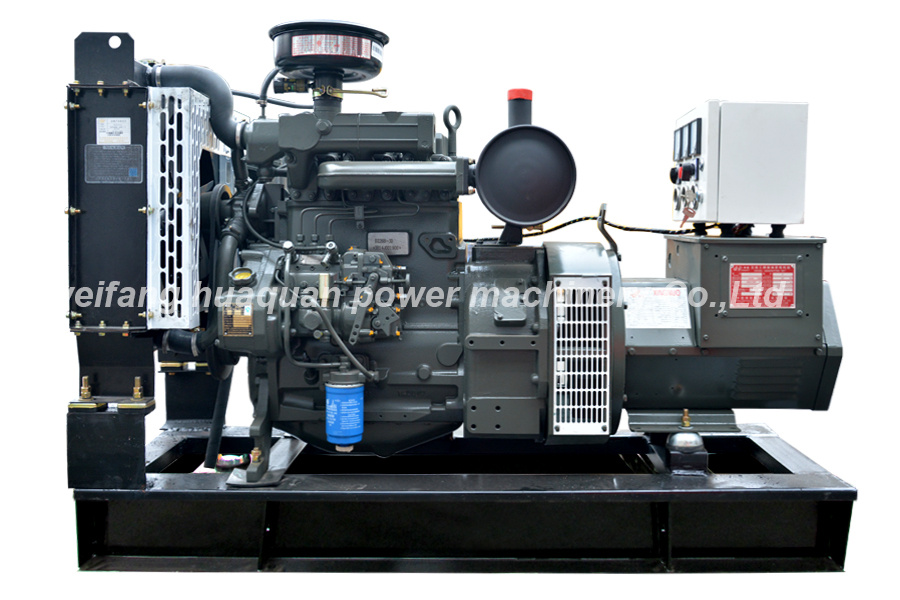

General Technical Data
1. Engine: Genuine Detuz industrial diesel engine
2. Alternator: Genuine Leroy Somer, Stamford, Marathon, or ENGGA alternator
3. Output range: 10-1700kw prime
4. Frequency: 50 & 60Hz
5. Speed: 1500 or 1800rpm
6. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire
7. Voltage: 220/380V, 230/400V, 240/415V, etc
8. Automatic digital control panel, auto start with AMF function
Engine Features:
1. World most famous brand diesel engine: Deutz Engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Three hours testing before out factory
| Prod Model: | HQD30GF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: | 220V/380V, 230V/400V, 240 |
| Certificates: | ISO9001:2008, CE, |
| Alternator: | Stamford,Leroysomer |
| Engine: | Deutz |
| Control Panel: | Smartgen, Deepsea,Comap |
| Cooling System: | Water Cooled |
| Power Factor: | 0.8 |
| Protection Class: | IP21-23 |
| Excitation: | Brushless |
| OEM: | Accepted |
| Type: | Basic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
