Engine:
Steyr Series
Aspiration:
Turbocharged Inter-Cooled
Altitude (M):
≤2500
Fuel Consumption G/(Kw.H):
≤195
Displacement(L):
9.726/11.59
Net Weight (Kg):
980-1050
Color:
Generator Set Color Customized
Noise:
<102db at 10m
Type:
Basic Diesel Generator
Installation Method:
Fixed
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Stroke:
12 Stroke
Product Description

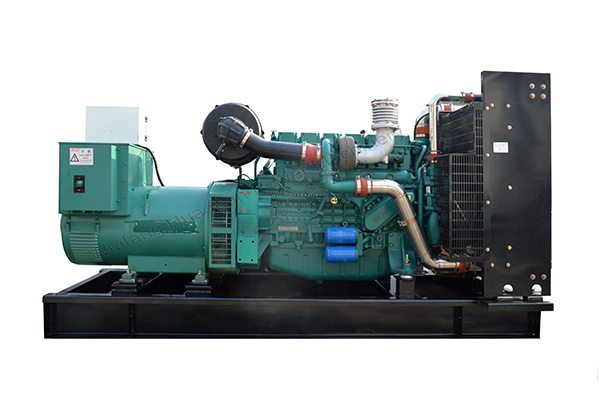

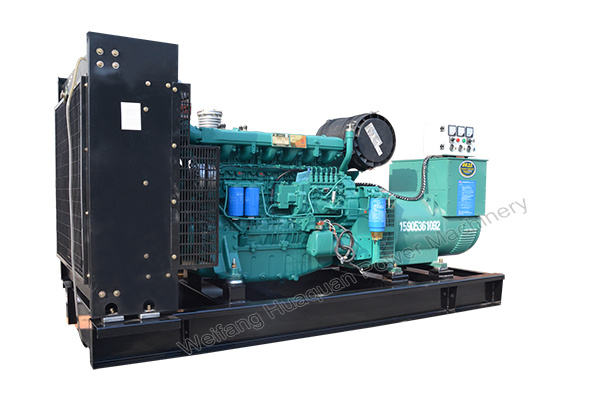

300KW STEYR generator
300kw steyr silent diesel genset 1.ISO90012008 2.CE certificate 3.OEM factory of styer engine 4.good quality & best price
300kw steyr silent diesel genset
1. Specification of genset
Gensets model
HQ300GF
Prime power(KW)
300
Rated voltage(V)
400 / 230
Rated current(A)
541 / 941
Rated frequency(HZ)
50
Rated Speed (rpm)
1500
Power Factor
0.8(lagging)
Dimensions(mm) (L×W×H)
3200x1150x1800
open type
Genset Weight(kg)
2950
Dimensions(mm) (L×W×H)
4100x1900x2400
silent type
Genset Weight(kg)
3650
2. Specification of diesel engine
Engine brand
Steyr
Engine model
WP12D315E10
Air Intake System
Turbocharged
Fuel System
Direct Injection
Cycle
Four stroke
Cylinder Arrangement
6 in line
Displacement
11.596L
Bore×Stroke (mm×mm)
126 x 130
Compression Ratio
16.5:1
Rated RPM
1500rpm
Cooling System
Forced Water Cooling Cycle
Max. Standby Power at Rated RPM
347KW
Governor Type
Electronic
100%(Prime Power) Load fuel consumption
196g/KWh
Total Oil Capacity
25L
Total Coolant Capacity
45L
Starting Method
DC24V electrical starting
3. Specification of alternator
Alternator brand
Kaijieli(French Leory Somer technology)
Alternator model
TWGII314EC
Excitation
Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Number of Phase
3
Connecting Type
3 Phase and 4 Wires
Number of Bearing
1
Power Factor
0.8
Protection Grade
IP22
Altitude
≤1000m
Insulation Class, Temperature Rise
H
Telephone Influence Factor (TIF)
≤50
THF
≤2%
Voltage Regulation, Steady State
≤±1%
Transient State Voltage
≤-15%~+20%
4. Specification of control Panel(with Kaixun controller)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of Kaixun controller:
Kaixun controller is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory.
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw

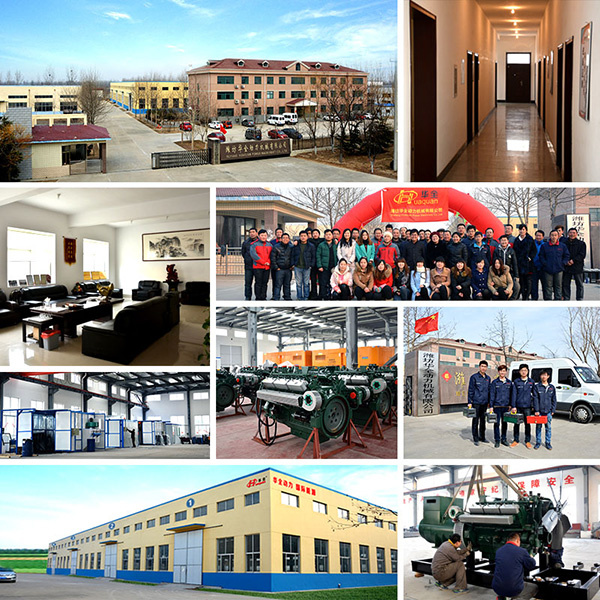

Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
