North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling System:
Water Cooled
Alternator:
Stamford
Fuel Consumption:
205g/Kw.H
Warranty:
12months
Certificate:
ISO9001
Color:
Customers' Requirement
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

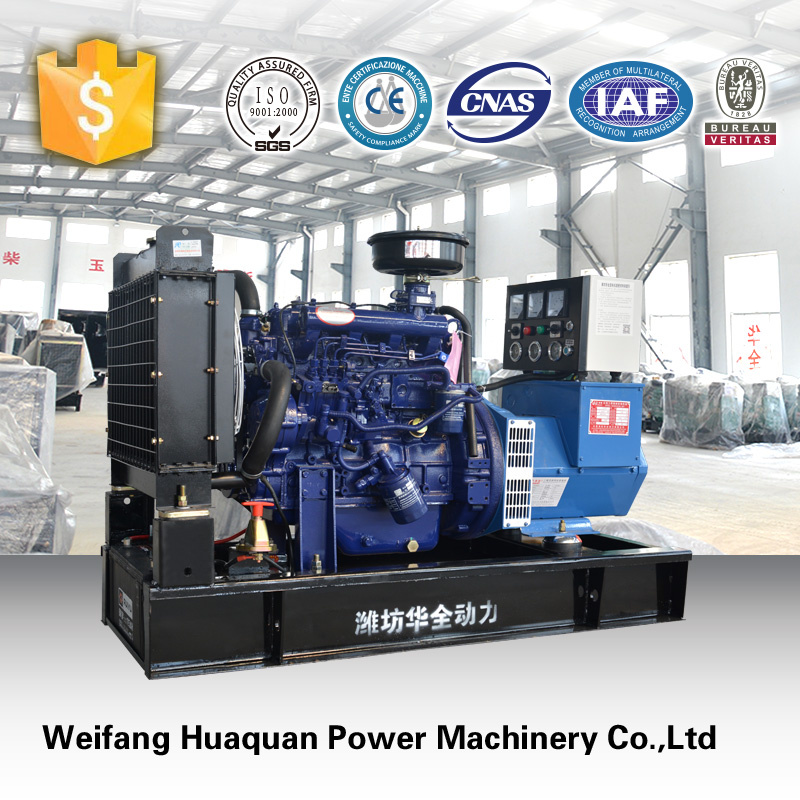

Product: diesel Generator Set portable diesel generator 20kw
Genset Technical Data
Prime power
20kw
Standby power
22kw
Rated speed
1500 RPM
Output frequency
50 Hz
Phase
4
Engine model
WP2.5D22E2
Alternator model
Stamford
Diesel Engine Technical Data
Engine Model
WP2.5D22E2
Configuration
4 cycle , 4 cylinders in line
Aspiration
Turbochargerd
Bore×Stroke
90x100 mm
Rated speed
1500/1800rpm
Displacement
4.0 L
Prime Power
20KW
Speed Governor
Mechanical/Electronic
Cooling System
Closed Water-cooled
Speed Stability (%)
≤5%
Fuel Consumption at 100% Load
208g/kw.h
Starter Motor
DC 24V
Marathon Alternator Technical Data
Alternator model
Stamford
Alternator manufacturer
Stamford
Exciter type
Single bearing, Brushless, Self-excited
Rated output prime power
20 kW
Rated speed
1500 RPM
Rated frequency
50 Hz
Phase
4
Rated voltage
400V
Power factor
0.8
Voltage adjust range
≥5%
Voltage regulation NL-FL
≤±1%
Insulation grade
H
Protection grade
IP23
Dimension and Weight(for reference only) Overall size (L*W*H): 1400*700*900(L×W×H mm) Weight: 350 kg
warranty
1.Huaquan Power offer complete lines generator after sale service. We offer 1 year or 1000 hours runing time for warranty. 2.We offer technical support for free all the time. 3.We offer the spare parts for our generators all the time,any time you can contact us for spare parts.
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
