Engine:
Weichai Series Engine
Cylinder No:
4
Excitation Method:
Brushless
Cooling Type:
Water Cooled(Water Cooling)
Certificate:
CE;ISO9001;BV;etc
Rated Current:
36A
Color:
as Your Request
Control Panel:
Amf, LED Display
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Single Phase
Product Description

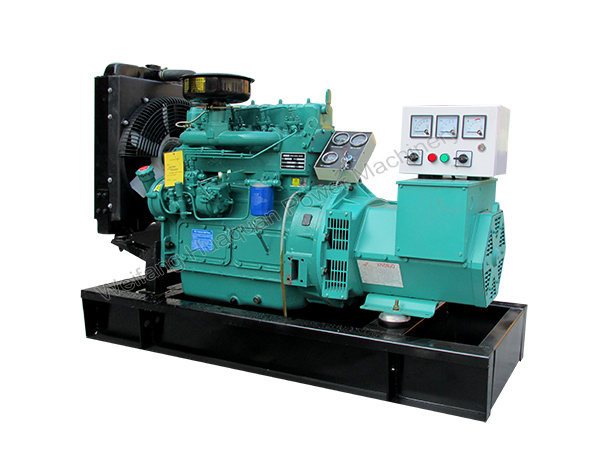

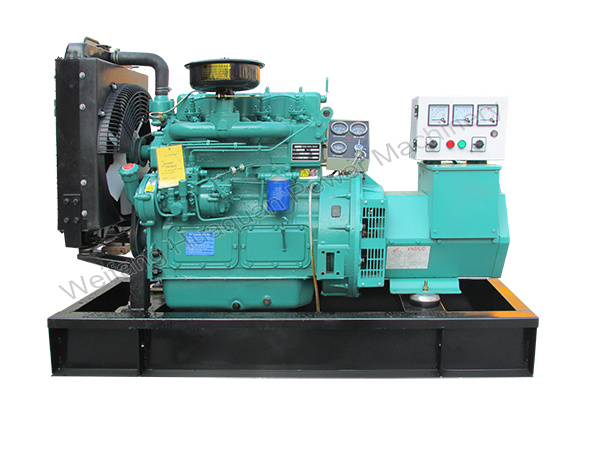

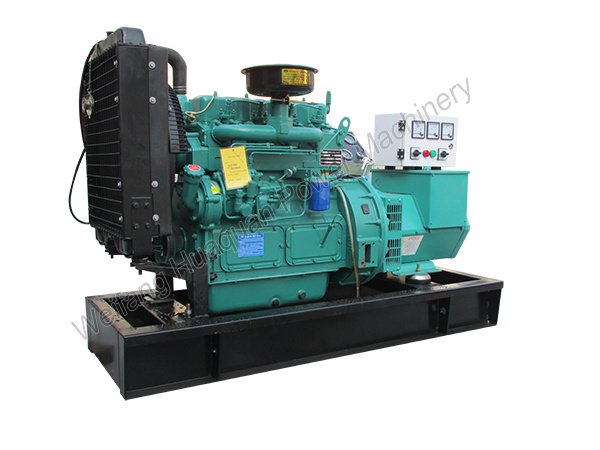

20kw/25kva weichai ricardo series power generator
weichai diesel generator set
GEN-SETS
Model
HQ-20GF
Engine Brand
weichai
Rated Output(kva)
25
Current(A)
36
Power factor(cosφ)
0.8
Frequency(hz)
50/60
Fuel Consumption(g/kw.h)
≤236
The regulating rate of steady voltag
≤±0.5%
The waving rate of voltage
≤0.5%
The regulating rate of steady frequency
≤3%
The regulating rate of instantaneous frequency
≤±5%
The time of steady frequency
3sec
The waving rate of frequency
≤0.25%
Dim L×W×H(mm)
1600X700X1120
Weight(kg)
630
Diesel engine
Engine model
K4100D
Cylinder
4
Bore*Stroke(mm)
100*115
Lubricating oil capacity
10
Rated speed(rpm)
1500/1800
Cooling method
Closed water cooling
Starting system
Electrical start
Displacement(L)
3.6
Alternator
Brand
Qianghui/stamford/marathon/engga
Type
Brushiess
The connecting way of the phase
Three phases four lines
Insulation degree
H degree
Grading Protection
IP22
Weichai low power generator sets adopts four-stroke direct injection diesel engine,small size,large power.The generator is STC or brushless of three times harmonic wave selfexcitation constant pressure,strong motor-start ability,fine appearance and reliable performance,low price fine wares can satisfy all users.
