Working Wind Speed:
3m/S to 25m/S
Rotor Blade Material:
Fiber Glass
Number Of Blade:
Three Blade
Rotating Shaft:
Horizontal
Stress Way Of Blade:
Resistance
Product Description
Currently our company supply:

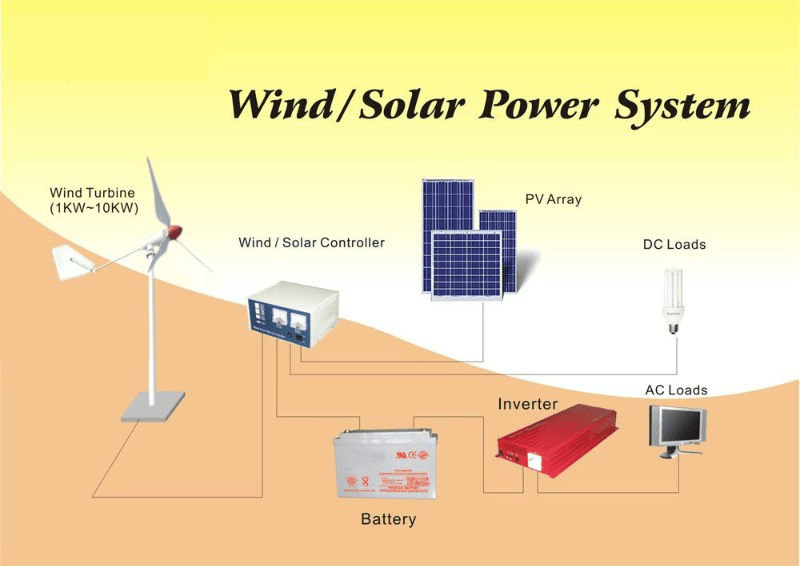

1) Wind-solar hybrid LED light system; 2) Off grid/on grid wind turbine generator system 3) Wind-solar hybrid generator system; 4) Wind-solar-diesel hybrid generator system;
Start-up at a wind speed of 0.2m/s-0.4m/s and creates power at a wind speed of 1.3m/s-1.8m/s. And the generator without heat. --- Our turbine is free from an iron core. From a motionless state, its starting torque is three times lower than turbines of different brands. ---Resistance has been reduced to the greatest extend by no cogging effect. ---The turbine's structure is disk. ---The turbines adopts open design with no front/rear end cap, therefore does not produce heat at all. It is ensuring insulating reliability of the coils. Typhoon resistance ---Multiple-electronic, mechanical braking ---Self-developed national patented technology without any braking devices Lower noise ---We break the blade element theory principle which has been observed in blade design. The span-wise section and the appearance of the blade has the best aerodynamic performance. ---The apex of the blade is designed to reduce noise. When the vane is rotating at top speed, the noise tested 10 meters away from the blade is only 30db, which is even lower than domestic use electric fans. Anti-corrosion, sand storm and anti-strike ---The blade uses aviation duralumin molded by high pressure with a specially treated surface which will never rust in various severe environments. ---The blade has a strong hard surface which is 150HB hardness. Without stalling and the blade is thin & light ---The rotation speed of the blade is faster and it can reach 2200 cycles/minute without stalling. ---Our blade for 600W is only 3mm, the other brand's blade for thickness is 20mm which is 6 times thicker than our blade. And the weight is only 500g, the other brand's blade is 830g which is 40% heavier than our blade.

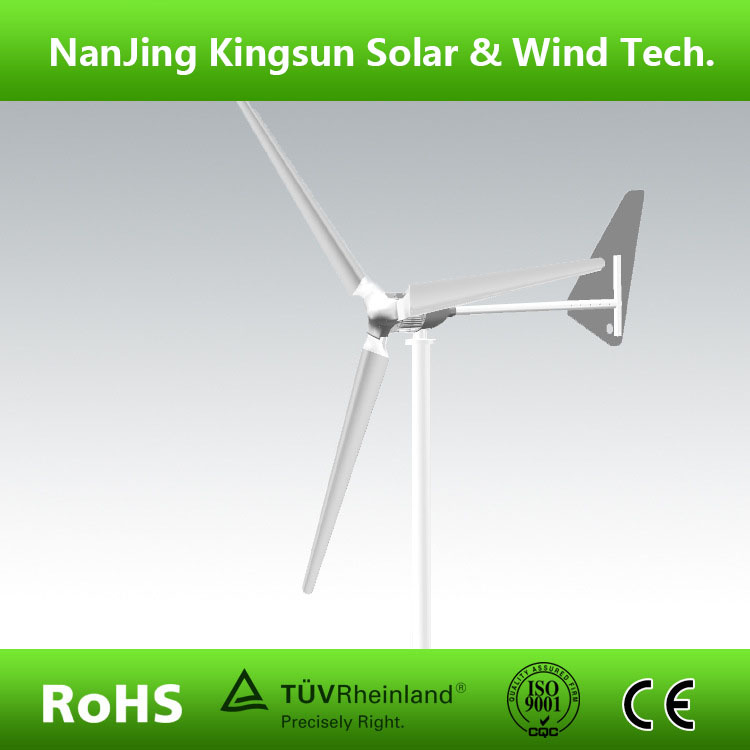

Wind generator part
New Model
KSFJ-3000W
Name
Dolphin
Rated power
3000W
Rated DC voltage
DC 96/48v
Rated current
31/62A
Rated speed
3000r/s
Max power
3000W
Number of blade
3 pcs (package Individually)
Starting wind speed
3m/s
Cut-in wind speed
3.5m/s
Cut-out wind speed
18m/s
Security wind speed
45m/s
Rated wind speed
12m/s
Engine
Three-phase permanent magnel generator
Rotor diameter
2200mm
Blade material
FRP (fiber glass- reinforced plastics)
Output line anti-winding device
Over all three-phase commutator
Over-speed wind protection
Tip stall protection + tumed protection + electomagnetic brake
Life span
15 years
Equipment surface protection
Aluminum oxide + plastic coating
Working temperature
-45°C-70°C
N.W.
25kg
Packing material
Carton case and foam material
packing dimension
850*550*460mm
G.W.
159kg
Nanjing KingSun Solar Technology Co., Ltd., is a professional manufacturer and supplier of Solar Panel (Solar Module), Solar Power System, Integrated Solar Street Light and LED Solar Light series products in China that located at Nanjing City.
Our products are exported to Europe, Middle East, Africa, South America, Australia, New Zealand and Aisa countries with TUV IEC61215 & 61730, ISO, CE and RoHS certificates of international quality standard, also we have flexible and timely after-sales service. We offer all products with high quality and sustainable service to our customers and establishing a long-term cooperative relationship with them.
Through the continuous technological innovation and expanding of the production scale, KingSun Solar is continuing to lower manufacturering costs to make the unexhaustible and green solar energy to step in thousands of households, and create a better tomorrow for human development.
KingSun Solar carry out enterprise culture of " Integrity, Innovation, Universitied, Pioneering ", and the spirit of " One earth, One Home, Solar change the Future " is our permanent pursuit, our practical attitude and accountability make our team work more efficient and more competitive.
Where there is a Sunlight, there is a KingSun Solar.
Welcome to KingSun Solar!
For more information and inquiry, please contact us freely.
