| Prod Model: |
KSH-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
2000W |
| Type: |
off Grid |
| Use: |
Home |
| Application: |
Commercial |
| Specification: |
Normal |
Product Description
2000W off Grid Solar Power Generator for HomeProduct Description

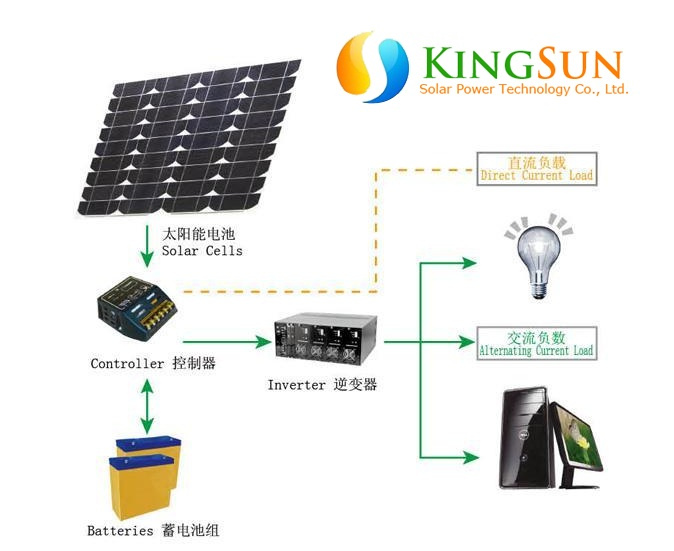

2000W complete off-grid Home solar power system
Complete system, output AC power
Electrical parts are with CE approved
Plug and play, simply to use
1) Can provide electricity for6-8h/days
2) Can guarantee that two consecutive rainy days of normal power supply.
3) Solar modules for peak power: 2000 Wp.
4) The output voltage to: 220 VAC +3% (Or 115VAC +3%)
5) Max Peak Power in one days (6-8 Hours) 12KWH
6) The maximum power load for the system: 2000W. (suggest value)
7) Protection: Battery Charger Protection, Battery Low Voltage Protection, Overload Protection
Short Circuit Protection, Thermal Protection, Fault Indication Function
General Features of controller:
1) Digital DSP Control
2) Assembled by IPM of Mitsubishi made in Japan
3) MPPT control, duly track of maximum power output of PV module
4) pure sine wave output, auto in-phase grid-connected, fewer harmonic wave, no disturbance or impact on grid
5) Disturbance detection for Anti-islanding protection
6) Perfect function of protection and alarm
7) RS485/RS232\Ethernet\GPRS communication Interface, realizing long-distance
Data-collection and monitoring
8) The LED, LCD display function
GUARANTEE
10 years for product defects in materials & workmanship
25years transferrable power output warranty: 10 years at 90% of the minimal rated power output, 25 years
At 80% of the minimal rated power output
Why choosing KINGSUN
1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of solar modules ranging from 3w to 315w with CEC, TUV, and CE approval, offering the full spectrum sizes, solar panels are as efficient as other competitors, but far cheaper-without skimping on quality.
Picture:
Specification of the system| System specification |
| Item NO. | SBP-SPS-2K |
| Output voltage | 110VAC/220VAC , 12VDC/24VDC |
| Max AC load | Rate power:2000W/Surge power:4000W |
| Output power everyday (sunny day) | 12000WH |
| Solar panel | Material | Mono/Poly crystal Grade A solar cell |
| Pmax | 2000Watt |
| Inverter | Output wave | Sine wave |
| Output voltage | AC110V/AC220V |
| Output frequency | 50Hz |
| Output voltage Stabilization Precision | ±3% |
| Precision of output frequency | ±0.1% |
| Overload ability | 120%, 30 seconds |
| Invert efficiency | >85% |
| Battery | Type | Deep cycle maintenance-free battery |
| Capacity | 12000WH |
