| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size (Mm): |
1040*660*740 |
| Weight(Kg): |
245 |
| Stroke: |
Two Stroke |
| Installation Method: |
Portable |
| Type: |
Self-Starting Diesel Generator |
| Cooling Method: |
Air Cooled |

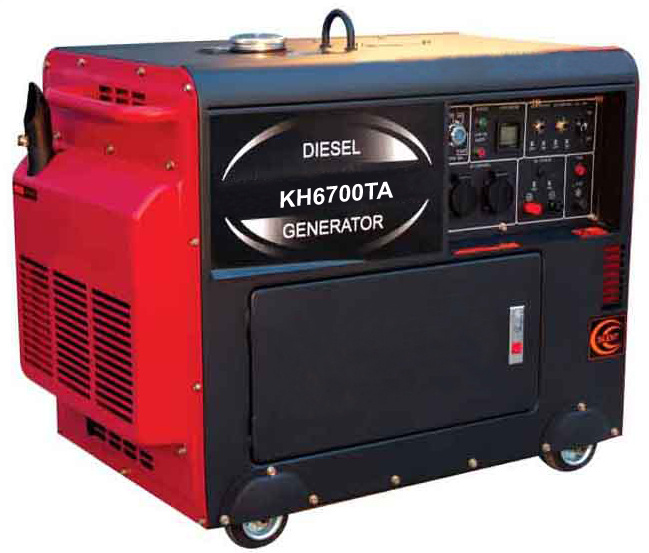

Product Description
1. Made in China
2. CE certificate
3. ISO9001-2000
4. Air-cooled generator
5. Silent type diesel generator
6. Small power generator
|
Genset Model |
KH16000LTA3 |
|
Rated frequency |
50Hz |
|
Rated power |
15KVA |
|
Rated voltage |
400/230V |
|
Rated rotation speed(rpm) |
3000 |
|
No. of phase |
Three |
|
Power factor (cosφ ) |
0.8(lagging) |
|
Insulation grade |
F |
|
Pole number |
2 |
|
Exciting way |
Exciting-self voltage-constant(with AVR) |
|
Panel type |
Intelligent |
|
Output socket |
Three-phase socket, single-phase socket |
|
DC output |
12V, 8.3A |
|
Overall dimension (mm)(L× W× H) |
1040× 660× 740 |
|
Dry weight (kg) |
245 |
|
Noise level (at rated load) dB(A)/7m |
70 |
|
Structure type |
Silent type |
|
Engine model |
R2V910 |
|
Engine type |
Two-cylinder, V-twin, four-stroke, direct injection |
|
No. of cyls-Bore× Stroke(mm) |
2-88× 75 |
|
Displacement (ml) |
912 |
|
Compression ratio |
20: 01 |
|
Cooling System |
Air cooled |
|
Lubrication system |
Pressure splashed |
|
Starting system |
Electric starter |
|
Fuel type |
0#(summer), -10#(winter), -35#(chill cold)light diesel |
|
Lube oil brand |
SAE10W-30 (above CDgrade) |
|
Fuel consumption (g/kW. h) |
≤ 280 |
|
Fuel tank capacity (L) |
21 |
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
