| Prod Model: |
KH-48GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description

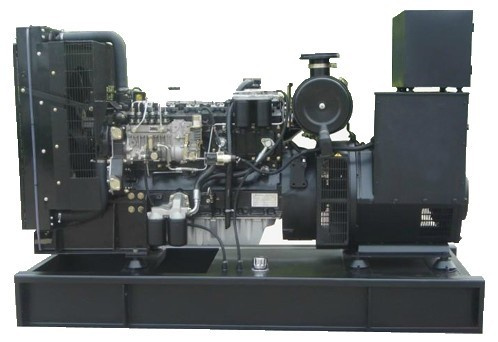

48kw generator sets powered by perkins:
1. Powered by original perkins engine.
2. High stability, reliability, durability and long life with a wide range of power output.
3. Widely used in the area of communication, industry, projects, mining, rescuing, military and so on.
|
1.Genset Technical Data: |
|
Gensets model |
KH-48GF |
|
Prime power |
48KW/60kVA |
|
Stangby power |
52.8KW |
|
Rated speed |
1500RPM |
|
Output frequency |
50Hz |
|
Power Factor(COS) |
0.8(lagging) |
|
Phase |
3 |
|
Rated voltage |
400/230V |
|
Dimensions(mm) (L×W×H) |
2150*750*1380 |
|
Genset Weight(kg) |
1180 |
|
2. Specification of diesel engine: |
|
Engine brand |
Perkins |
|
Engine model |
1103A-33TG2 |
|
Number of Cylinders |
3 |
|
Cylinder arrangement |
3 in line |
|
Cycle |
Four stroke |
|
Aspiration |
Turbocharged ,Air/air cooling |
|
Bore×Stroke (mm×mm) |
105*127 |
|
Displacement (Liter) |
3.3 |
|
Compression Ratio |
17.25:1 |
|
Speed Governor |
Electronic |
|
Cooling System |
Forced Water Cooling Cycle |
|
Speed Stability (%) |
≤1% |
|
Total lubrication system capacity (L) |
7.9 |
|
Fuel Consumption at 100% Load (g/kwh) |
12.2 |
|
Starting Method |
DC24V Electrical starting |
|
3. Specification of alternator |
|
Alternator brand |
Stamford |
|
Alternator model |
UCI224E |
|
Number of Phase |
3 |
|
Connecting Type |
3 Phase and 4 Wires |
|
Number of Bearing |
1 |
|
Protection Grade |
IP23 |
|
Altitude |
≤1000m |
|
Exciter Type |
Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
|
Insulation Class |
H |
|
Telephone Influence Factor (TIF) |
≤50 |
|
THF |
≤2% |
|
Voltage Regulation, Steady State |
≤±1% |
|
Transient State Voltage |
≤-15%~+20% |
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
