| Prod Model: |
4012-46TWG2A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Self-Starting Diesel Generator |

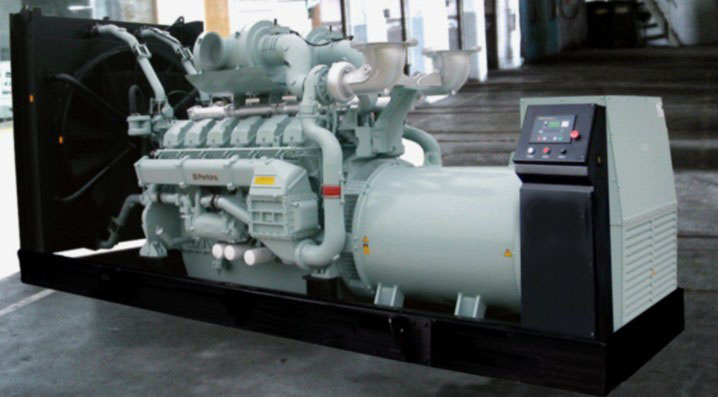

Product Description
Kaihua diesel generator set rated speed 1500rpm, four-stroke, water cooling fan, turbo, in the cold air, with ISO3046 standards, compact, power, high reliability and low cost of installation and maintenance costs, work Long cycle.
1. Excellent damping performance: Computer-based simulation of the dynamic damping system optimized.
2. Advanced control system: Based on the reliability of the entire design of the monitoring system control strategy.
3. Environmental protecting, energy-saving and low-emission diesel generating units.
4. Low-noise: Customerized muffler exhaust system.
5. Excellent performance: Operational stability and vibration of small, fuel consumption rates, oil consumption rate is low and long operating life, overhaul a long time and low noise.
|
Engine Model: |
4012-46TWG2A |
|
Manufacturer: |
Perkins |
|
Air Intake System: |
Turbocharged after air-water cooled |
|
Cylinders Arrangement: |
12 in V |
|
Displacement(L): |
45.824 |
|
Bore× Stroke(mm): |
160× 190 |
|
Compression Ratio: |
13.6: 1 |
|
Rated RPM: |
1500RPM |
|
Prime Power at Rated RPM: |
1113KW/1391KVA |
|
Governor Type: |
Electronic |
|
Cooling System: |
Water cool |
|
Speed Stability (%): |
≤ 5% |
|
Fuel Consumption at 100% Load: |
212g/Kw. h |
|
Total oil Capacity(L): |
177.6 |
|
Oil Consumption(g/Kw. h): |
≤ 4g/Kw. h |
|
Total Cool Capacity(L): |
201 |
|
Cooling Method; |
Water cooled |
|
Max Water Temperature: |
104C |
|
Starting Method: |
DC24V Electrical starting |
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
