Rated Working Pressure:180bar
Rated Flow (L/min):4
Supply Power of Motor:AC380V/50Hz or AC690V/50Hz
Control Supply Power:AC220V/50Hz or DC24V
Oil Tank Capacity:20L
Weight:115kg
Operating Condition:
Ambient temperature: -40°C~+70°C ;
Relative humidity:≤95%;
Special requirements can be discussed in order.
Application:

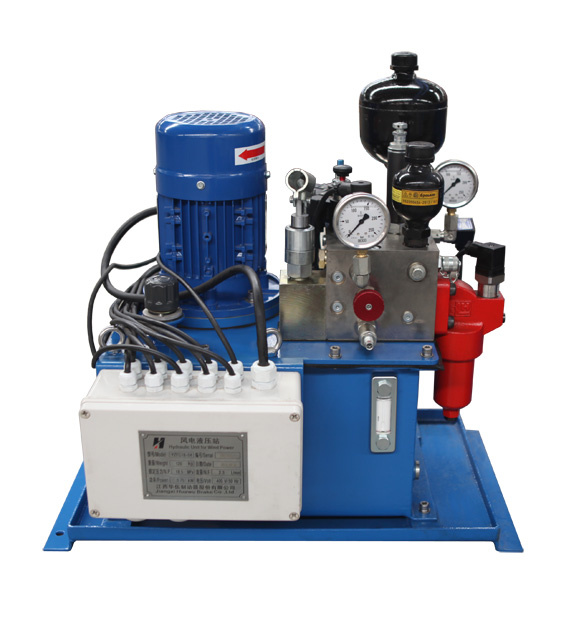

YZFC is used for controlling rotor brakes and hydraulic lockpins on wind turbines.
Main Feature:
Compact structure and easy installation.
System is equipped with hand pump,which can be used for maintaining when powered off.
Which can be widely used on active and passive brakes.
Main hydraulic valves all are non-leaking ball valves, which have good pressure-holding performance.
