| Price: | Negotiable/Set |
|---|---|
| Trade Terms: | FOB,CIF,DAP |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
Application Features:

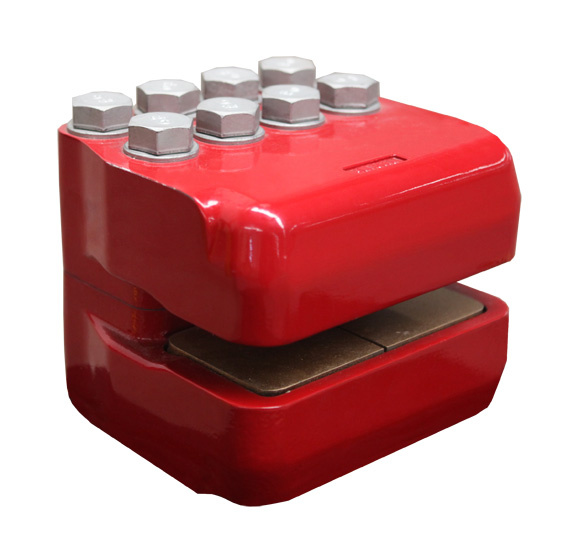

Yaw mechanism's braking for wind turbine generator system.
Main Feature:
1 Normal-open design, hydrualic applied and the change of braking force can be realized by hydraulic pressure.
2 Pads wear compensation can be realized by changing piston stroke.
3 Pad wear limit switch can provide interlocking protection and failure displaying(PLC control).
4 Small clearance, rapid response, few moving element, high reliability and simple maintenance.
5 No need to disassemble the brake to replace the lining,fast and conveniently.
6 Friction linings with high performance and stable friction factor.
7 Oil catcher is set to prevent leakage from polluting the disc, safe and reliable.
| Prod Model: | SB200-A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Disc Diameter(mm): | ≥900 |
| Disc Thickness(mm): | 30 |
| Clamping Force(N): | 203000 |
| Friction: | 0.4 |
| Outline Dimension(mm): | L*W*H:332*235*206 |
| Weight(Kg): | 70 |
