| Price: | Negotiable/Set |
|---|---|
| Trade Terms: | FOB,CIF,FCA |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
Application Features:
Rotor braking for wind turbine generator system.
Main Feature:
1 Normal-open design, hydrualic applied and spring released, braking force will change as the change of hydraulic pressure.
2 Pads wear compensation can be realized by changing piston stroke.
3 Release limit switch and pad wear limit switch can provide interlocking protection and failure displaying(PLC control).
4 Small clearance, rapid response speed, few moving parts, high reliability and easy maintenance.
5 When replace linings, it's unnecessary to dismantle brake, quick and easy.
6 Friction linings are characterized by high performance and stable friction coefficient.
7 Oil catcher is set to prevent leaked oil polluting the brake disc, which is not only safe but environmental protection.

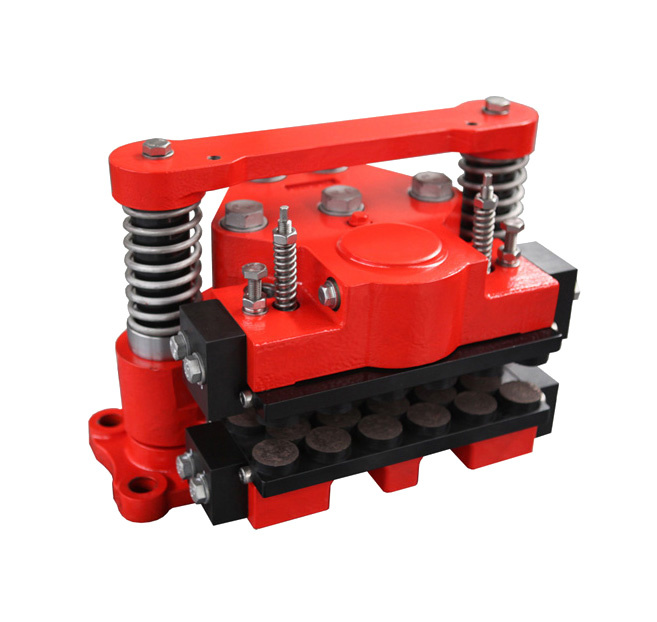

| Prod Model: | SBD55-F |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Disc Diameter(mm): | ≥500 |
| Disc Thickness(mm): | 30 |
| Clamping Force(N): | 55000 |
| Friction: | 0.4 |
| Outline Dimension(mm): | L*W*H:420*261*279 |
| Weight(Kg): | 82 |
