1.International Warranty Service
2. Short delivery time
3. With ISO9001& CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
5. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load
Generator Data:

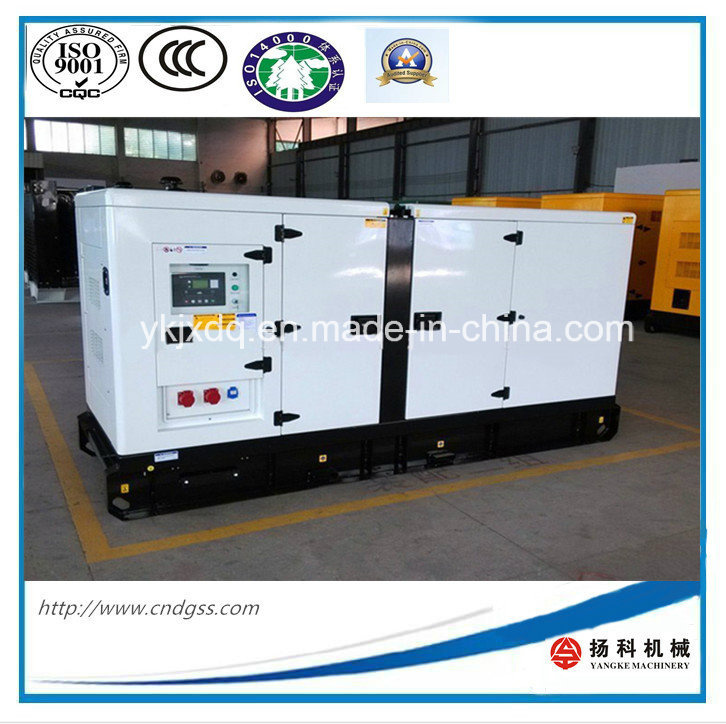

Genset Model | QSY-50 |
| Frequency |
50Hz/1500rpm
60Hz/1800rpm |
Voltage | 110/220, 220/380, 230/400,
240/415, 254/440V |
| Rated Power | 50KW/62.5KVA |
| Standby Power | 55KW/69KVA |
| Phase | Three or One Phase |
| Fuel Tank | At least 8 hours |
| Fuel Comsuption | 14L/h |
| Silent Level | 60dB to 75dB at 7 meter |
Engine Data:
Engine | Yuchai YC4D85Z-D20 |
| Aspiration | Turbo |
| Frequency/Speed | 50Hz/1500rpm,60Hz/1800rpm |
| Rated power | 55KW/75HP |
| Standby power | 60KW/82HP |
| Cylinder | 4 |
| Displacement | 4.2L |
| Bore*Stroke | 108mm*115mm |
| Compression ratio | 17:1 |
| Governing system | Electric |
| Cooling way | Water-cooled |
| Speed-droop | 5% |
| Low idle | 950-1050rpm |
| Poston speed | 6m/s |
Alternator Data:
Alternator | CP-224E |
| Frequency/Speed | 50Hz/1500rpm,60Hz/1800rpm |
| Rated power | 48KW/60KVA |
| Standby power | 53KW/66KVA |
| Phase | 3 phase or 1 phase |
| Protection class | IP21 or 23 |
| Excitation | Brushless, self-excitation |
| Altitude condition | <1000m |
| Insulation class | H |
| Tel.Influence Factor | <50 |
| Tel.Harmonic Factor | <2% |
| Efficiency | 93.80% |
| Cooling Air Flow | 1.035m3/s |
| Power Factor | 0.8 |
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
