Generator Manufacturers and Factories

Home Generator Products Yuchai Engine 100kw/125kVA Water-Cooled Power Diesel Generator

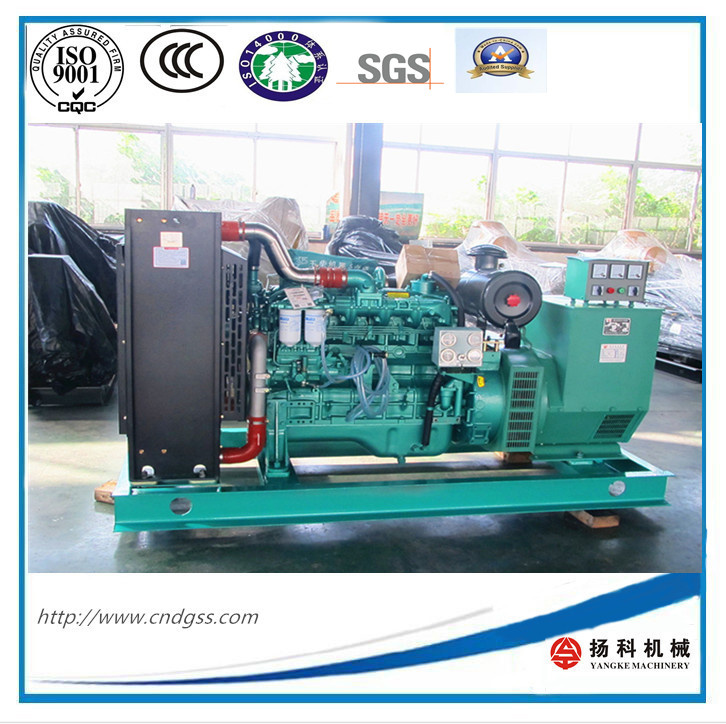

Yuchai Engine 100kw/125kVA Water-Cooled Power Diesel Generator

Yuchai Engine 100kw/125kVA Water-Cooled Power Diesel Generator
Price: US $ 6000-8500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
1.International Warranty Service
2. Short delivery time
3. With ISO9001& CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load


ModelEngine ModelRated Power (KW)

standby

power(KW)

1-hour power (kw/r/min)Consumption (L/H)

Cylinder

*Bore

*Stroke

Governor WayIntake WayL×W×H       (MM)Weight (KG)
QSY-15YC2108D1516.518/150042×108×120MechanicalNatural Aspiration1500*730*1300550
QSY-20YC2115D202226/150052×115×120MechanicalNatural Aspiration1500*730*1300550
QSY-30YC2115ZD303333/150072×115×120MechanicalNatural Aspiration1500*730*1300550
QSY-50YC4D85Z-D20505560.5/1500114×108×115Mechanical/ ElectricalNatural Aspiration2000*600*1050850
QSY-64YC6B100-D206470.473.5/1500156×105×125Mechanical/ ElectricalNatural Aspiration2300*720*12501300
QSY-80YC6B135-D20808899/1500186×108×125Mechanical/ ElectricalNatural Aspiration2400*720*12501300
QSY-100YC6B155L-D21100110113/1500206×108×125Mechanical/ ElectricalTurbocharged/ Intercooler2400*720*12501400
QSY-120YC6A210L-D20120132153/1500266×108×132Mechanical/ ElectricalTurbocharged/ Intercooler2450*720*12501550
QSY-150YC6A230L-D20150165170.5/1500336×108×132Mechanical/ ElectricalTurbocharged/ Intercooler2580*930*14501600
QSY-160YC6G245L-D20160176181.5/1500356×112×132Mechanical/ ElectricalTurbocharged/ Intercooler2580*930*14501700
QSY-180YC6M285L-D20180198211.2/1500406×120×145Mechanical/ ElectricalTurbocharged/ Intercooler3000*1030*15602000
QSY-200YC6M350-D20200220258.8/1500456×120×145Mechanical/ ElectricalTurbocharged/ Intercooler3000*1030*15602100
QSY-250YC6MK390L-D21250275266/1500556×123×145Mechanical/ ElectricalTurbocharged/ Intercooler3000*1030*15802200
QSY-280YC6MK410L-D20280308303/1500616×123×145Mechanical/ ElectricalTurbocharged/ Intercooler3010*1010*15802500
QSY-300YC6MK470L-D20300330344/1500666×123×145Mechanical/ ElectricalTurbocharged/ Intercooler3000*1030*15802500
QSY-320YC6T550L-D21320352405/1500756×145×165Mechanical/ ElectricalTurbocharged/ Intercooler3450*1250*17803200
QSY-360YC6T550L-D22360396441/1500856×145×165Mechanical/ ElectricalTurbocharged/ Intercooler3450*1250*17803300
QSY-400YC6T600L-D20400440441/1500926×145×165Mechanical/ ElectricalTurbocharged/ Intercooler3450*1250*17803470
QSY-450YC6T660L-D20450495485/15001076×145×165Mechanical/ ElectricalTurbocharged/ Intercooler3450*1250*17803670
QSY-500YC6T660L-D20500550485/15001186×200×210Mechanical/ ElectricalTurbocharged/ Intercooler3450*1250*17803870
QSY-550YC6C900L-D20550605600/15001306×200×210Mechanical/ ElectricalTurbocharged/ Intercooler4700*1800*25006450
QSY-600YC6C1020L-D20600660748/15001406×200×210Mechanical/ ElectricalTurbocharged/ Intercooler4700*1800*25007000


Packaging & Delivery
Packaging Detail:generator standard exporting package
Delivery Detail:within 5-25working days after the deposit

Company Information

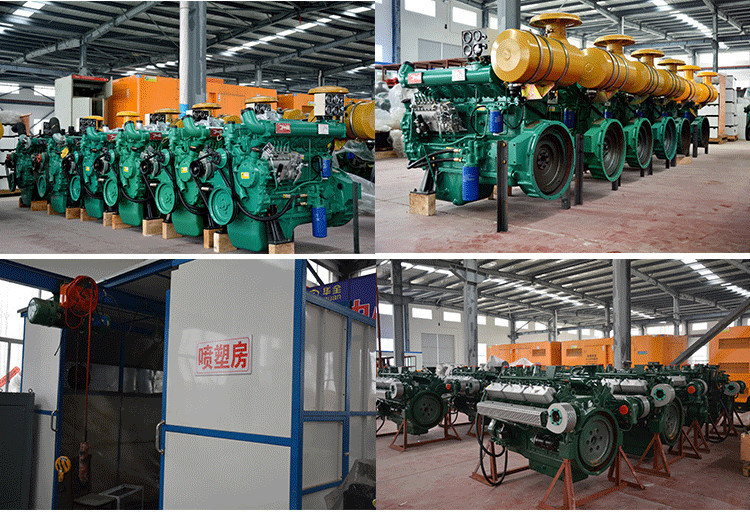

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.


Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.



With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

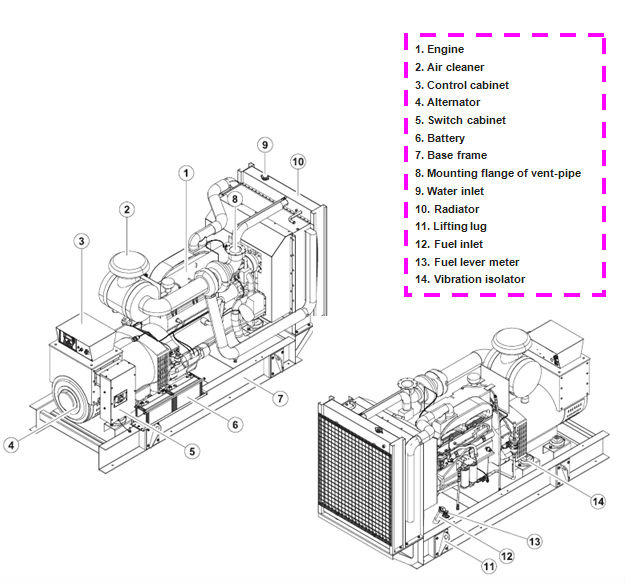

We only offer products using major engine brands such as Cummins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.

 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;

b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.

Service and parts are available from YANGKE POWER or distributors in your location.


FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America


Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368

Web:www.cndgss.com









Prod Model: QSY-100GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50Hz
Rated Rpm: 1500
Power: 100kw/125kVA
Cylinder No.: Four
Bore/Stroke: 108*125mm
Displacement: 6.871L
Lubricating Capacity: 17L
Fuel Consumption: 208L
Size(L*W*H Mm): 2350*800*1250
Weight(Kg): 1530
Type: Basic Diesel Generator
Installation Method: Portable
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Single Phase
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.

With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000kVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and ISO14001-2004.

We can provide a variety of specifications automated, automatic cut over, soundproof and mobile on high quality. The low energy consumption power set satisfies the customer's all electric power demand. We also can satisfy the user with different voltage and different frequency request, as well as networking power supply system.

Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
