| Price: | US $ 170000-220000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal |
1.International Warranty Service
2. Short delivery time, as we always have Cummins engine in stock
3. With ISO9001& CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
5. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load

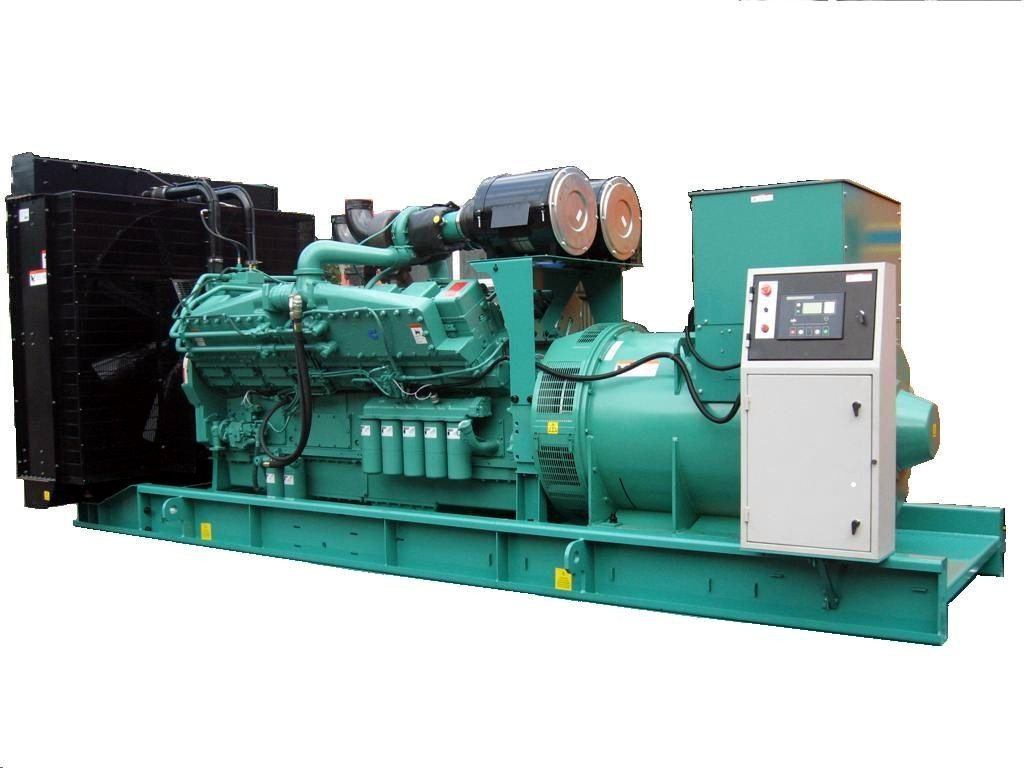

| 1100kw Cummins series gen-sets technology parameters | |
| Genset | |
| Type:QSC-1100GF | The regulating rate of steady voltage: ≤±0.5% |
| Output power:1100KW/1375KVA | The waving rate of voltage : ≤±0.5% |
| Power factor:COSΦ=0.8(lag) | The time of steady voltage:≤1.5sec |
| Rated voltage:400/230V | The regulating rate of steady frequency:≤3% |
Current:1980A | The regulating rate of instantaneous frequency: ≤±5% |
| Frequency:50HZ | The time of steady frequency: 3sec |
| Speed:1500RPM | The waving rate of frequency: ≤0.25% |
| Dimension:5200*2080*2500mm | The waste of fuel with full load: 208g/kw.h |
| Weight:10000kg | Noise(LP7m):93dB(A) |
| Diesel Engine | |
| Brand/Origin:Chongqing Cummins | Cooled System:Water Cooling |
| Engine Model:KTA50-G3 | Type:Direct Injection,Four-stroke,V6-type |
| Cylinder No.:16 | Rotating Speed:Electric speed regulator |
| Bore*Stroke:159*159mm | Aspiration Type:Turbo Water-cooling |
| Compression Ratio:13.9:1 | Displacement:50L |
| Starting Way:DC24Vwith electricity | Lubricating Capacity:177L |
| Alternator | |
| Standard Brand/Origin:Hengsheng/Shanghai | Insulation Degree:H degree |
| Type:Brushless (AVR automatic voltage regulating) | Grading Protection:IP22 |
| The connecting way of the phase:Three phase four lines | Optional Brand:Stamford;Marathon,etc |
| Control screen | |
| Brand:Harsen/Smartgen/Deepsea | Features:English interface;LED screen;Touch buttons |
| Based Function:1.Display loading power,voltage,current,frequency,speed,temperature,oil pressure,running time,etc | |
2.Warning when low or high voltage,low or high frequency,over current,over or low speed,low or over battery voltage,etc | |
3.Over load protection,over/under frequency protection,over/under/imbalance voltage protection and low oil shutdown. | |
| The component of genset | |
| Direct injection diesel engine | |
| Brushless,self-excited alternator | |
| Water tank | |
| Circuit breaker;Standard Controlling panel | |
| Base frame,include damping pad | |
| Air filter;fuel ilter;oil filter;24V DC start motor | |
| Battery,battery charger,battery wires,internal cables | |
| Mannual books of engine,alternator,genset,control panel ,wires diagram | |
| Optional Accessories | |
| Auto startup control panel | |
| Automatic control panel(ATS) | |
| Split type daily fuel tank;Integrated base fuel tank | |
| Rainproof enclosure;Soundproof enclosure | |
| Mobile power station | |
| Mute power station | |
Warranty Time | |
| 12 months or 1000 hours of Warranty Time for all our products.We take the full responsibility only in the fault that created by the quality,the Wearing-parts,daily consumables and human error of operating&maintenance are not included in. | |
| Payment terms/Delivery | |
| T/T,30% deposit in advance,the balance before shippment | |
| Within 15 days after receving deposit | |
| The impletation of standards | |
| International Standard:ISO9001:2000 | |
| Industry Standard:GB1105/GB2820 | |
| Free services | |
| Loading capacity analysis Technology consulations Lay out of Installation | |
| Testing and Debuging Training of Operation Low cost spare parts | |
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |

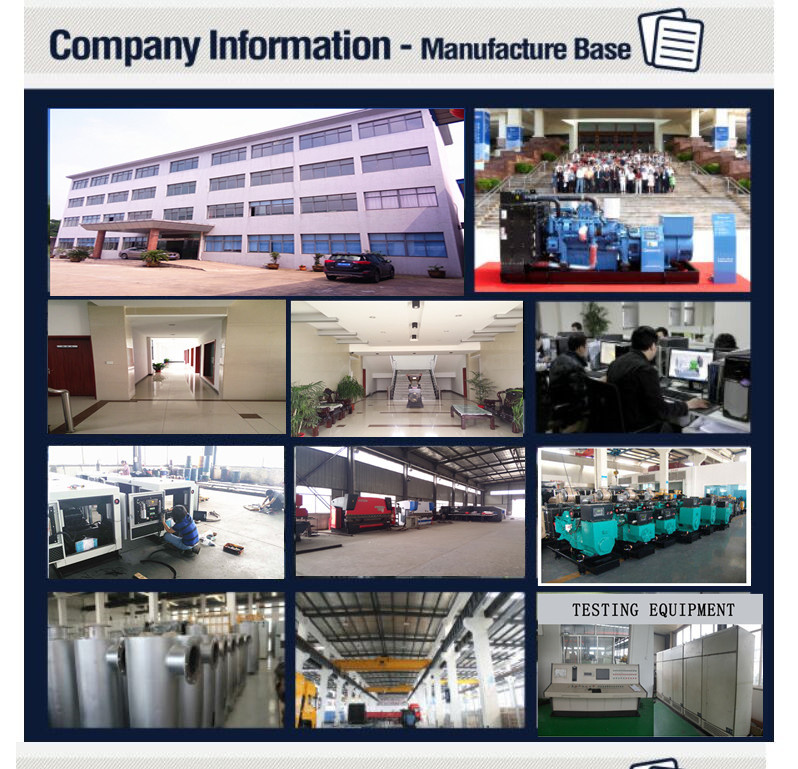

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
FAQ:
(1) Your company is factory or Trade Company?
Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce QS series 8-3000kva brushless alternators.
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com
| Prod Model: | QSC-1100GF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: | 50Hz |
| Color: | Green |
| Rated Rpm: | 1500 |
| Power: | 1100kw/1375kVA |
| Cylinder No.: | 16 |
| Bore/Stroke: | 159*159mm |
| Displacement: | 50.3L |
| Compression Ratio: | 13.9:1 |
| Size(L*W*H Mm): | 5200*2080*2500 |
| Weight(Kg): | 10000 |
| Type: | Basic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
