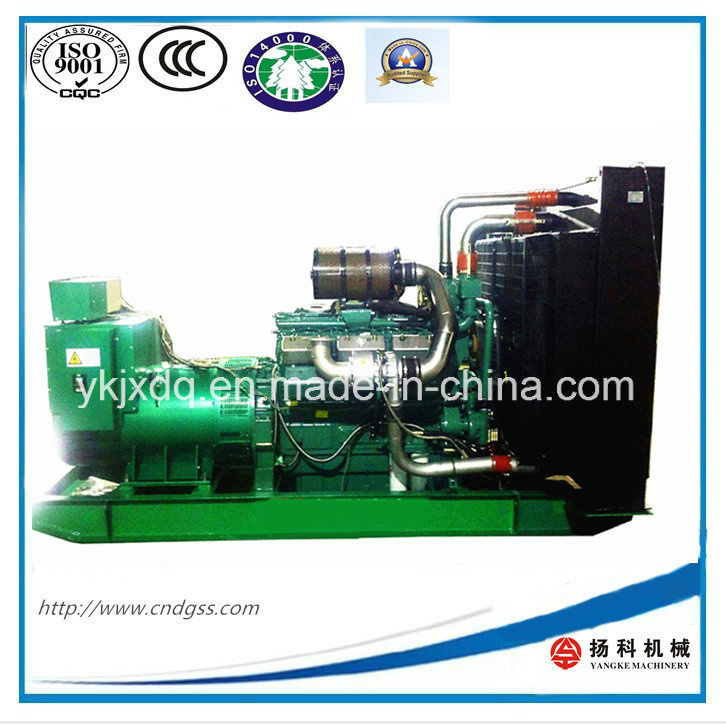

1. Wudong industrial diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Choice of manual/auto and AMF control panels and protection systems
4. Digital auto-start panel
5. Anti Vibration Suspension Absorber
6. Dry type air filter, fuel filter, oil filter
7. Mould case circuit breaker
8. 24V DC start motor and storage battery
9. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
| Technical parameters of diesel generator sets: |
| Generator Set |
| Generator Model | QSWD700KW |
| Prime Power(KW) | 700KW |
| Rated Voltage(V) | 400/220V |
| Output Type | AC Three-Phase Four-Wire |
| Frequency(Hz) | 50Hz |
| Power Factor | 0.8(lagging) |
| Rated Current (A) | 1260A |
| Dimension (L×W×H) (mm) | 3850×1700×2100mm |
| Genset weight (KG) | 5120KG |
| Diesel Engine |
| Brand | Wudong |
| Type | WD327TAD78 |
| Power(KW) | 750KW |
| Number of Cylinders | 12 |
| Rotating Speed | 1500RPM |
| Aspiration | Turbocharged after water-cooled |
| Bore×Stroke(mm) | 140*165mm |
| Displacement(L) | 28.7L |
| Compression Ratio | 14.5:1 |
| Speed Governor | Electrical |
| Cooling System | Water-cooled |
| Fuel Consumption at 100% Load | 170L/H |
| Starting Method | 24V Electrical starting |
| Alternator |
| Brand | DSE |
| Model | 3110 |
| Rated Voltage(V) | 400V |
| Rated Volumn(KVA) | 800KVA |
| Number of Phase | 3-Phase |
| Connecting Type | 3 Phase and 4 Wires |
| Frequency | 50/ 60Hz 1,500RPM/1,800RPM |
| Number of Bearing | single/Double |
| Protection Grade | IP23 |
| Altitude | within the limits of 1000m,temperature of 40ºC |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | 50 |
| THF | <2% |
| Voltage Regulation, Steady State | ≤±0.5% |
| Transient State Voltage | ≤-15%~+20% |
Control System:
Basic control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.
Optional AST & ATS Control System:
AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided with a 101A control module or a DACT704 module with LCD display. When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.
ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
FAQ:
(1) Your company is factory or Trade Company?
Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
