5kw wind turbine for both off-grid system and on-grid system
Rated power 5kw
Permanent magnetic alternator
20 years life cycle
Easy to install&operate

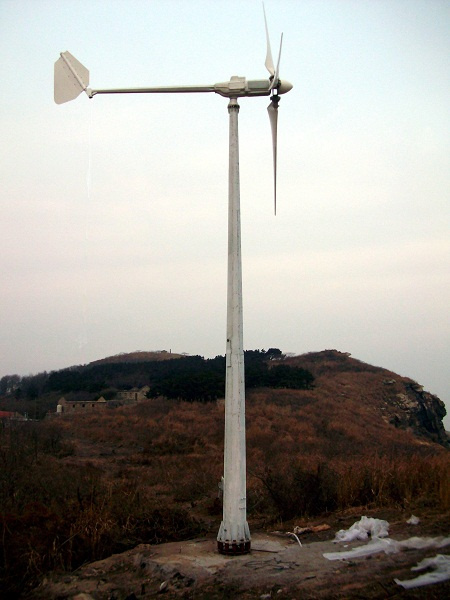

5kw direct drive wind generatorhas high efficiency, credible performance, low noise, environment protecting, wind turbine generator is adoptable for the rural and pasturing area, the border of island, observatory etc, where is rich in wind resource, but lack the regularly energy, and now it is widely used in all over the world.
FD6.0-5kw wind generator technical parameters:
1. Technical parameter
FY-5kW Yawing wind turbine Technical Parameter
Rotor diameter (m) 5
Blade material and quantity Reinforced fibber glass*3
Rated power / Max power (W) 5000/7500
Rated wind speed (m/s) 10
Rated rotating speed (rpm) 240
Working speed (m/s) 3-25
Start-up wind speed (m/s) 3
Survived wind speed (m/s) 40
Working voltage (V) DC48V_DC360V
Battery voltage / capacity (V, Ah) 20*12=240/200
Speed regulation method Pitch controlled
Stop method Manual brake
Generator style Permanent magnet, three phase, AC
Wind turbine main body weight (kg) 400
Guyed tower height / weight (m/kg) 8/160
Tilt-up tower height/weight (m/kg) 8/350
Noise level (decibel) <=65dB
Zhejiang Fengyuan Energy Technology Group Co., Ltd. is the professional manufacturer of small wind turbine generators which is a branch of Zhejiang Fengyuan Group Co., Ltd, The company has an established product range, and undertakes active investment in the development and promotion of both proven and innovative renewable energy technologies. Specializes in research, development, manufacturing, service as one large-scale and all-around "nomarchy high technology corporation. We have solar PV, scale-middle wind turbines, LED lighting and have got CE, ISO 9001, TUV and other product certificate, we have Zhejiang Wenzhou, Jiaxing Haining and Shangdong Linshu three manufacturer sites, after these three manufacturer sites finished building the annual value of production can reach to 50 hundred million RMB.
After 10 years development the products of wind turbine generator range from 400W, 1KW, 2KW, 3KW, 5KW, 10KW to 50KW with CE certificates honored. Thanks to the wide sorts and good quality, the products have already taken up the majority of domestic market and have been exported to more than 40 countries, say, Britain, France, the United States, Canada, New Zealand, Argentina, India etc, received high affection and reputation from the users.
Zhejiang Fengyuan Group Headquarters in Jiaxing Haining, for our Group have nearly a subsidiary of 18 to Join, have a branch like Zhejiang Fengyuan Energy Technology Co., Ltd, Shandong Tuoyuan Energy Technology Co., Ltd and so on, with a total registered capital of up to 500 million RMB. For our Shandong Tuoyuan Energy Industrial Park have finished, which is a subsidiary of Zhejiang Fengyuan Energy Technology.
Zhejiang Fengyuan Energy Technology will devote to the continuous development of green power resources and build the wonderful green world, and will try it's best supply excellent service!
