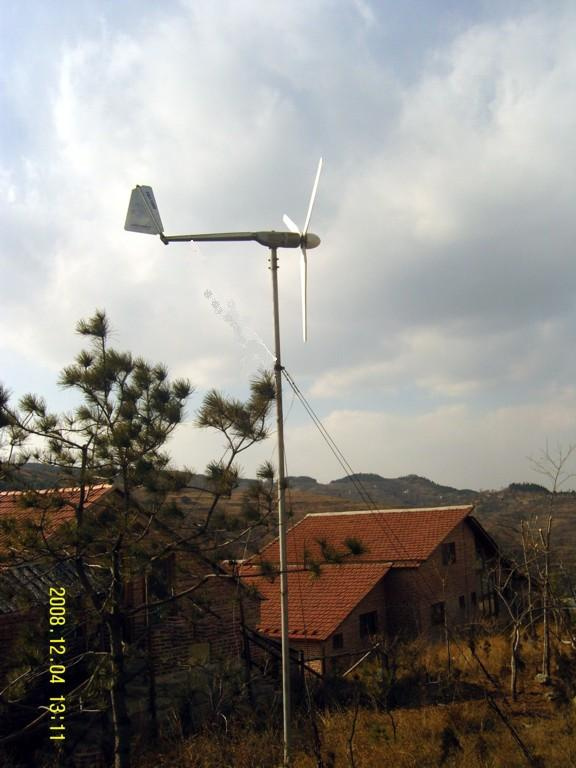

500W Yawing wind turbine
Specifications
1 Yawing technology
2 Mature system
3 Maintenance free
4 Best system matching
5 Rich experence in projects' operating
Product Characteristics
Particular yawing designing
1. Optimum aerodynamic shape design: High efficiency, low noise.
2. Direct drive permanent magnet generator, low startup resistance moment, constant running ability of over loading 1.5 times, maintenance free for more than 30000 hour.
3. Sealed slip ring, no cable twist; Carbon brush and slip ring clean; Good conductivity of electricity.
4. Streamline design, and good appearance
5. Long acting anticorrosive treats, no corrosion in 15years.
Application: Off-grid System
For example, streetlight, home, island, signal tower, forest fireproof monitor and other related small equipment power supply.
AHTY-500W Technical Parameter
Rotor Diameter (m) 2.5
Blade material and quantity Reinforced fibber glass * 3
Rated power / maximum power (W) 500/750
Rated wind speed(m/s) 9
Rated rotating speed(r/min) 500
Startup wind speed(m/s) 3
Working wind speed(m/s) 3-25
Survived wind speed(m/s) 40
Working Voltage (V) DC24V/DC36V AC220V
Battery voltage/capacity(Ah) 12*2=24 / 200 or 100
Speed regulation method Yawing and electrical magnet
Generator style Permanent magnet, three phase, AC
Weight (excluding tower) 80
AA Tower height/weight(m/kg) 6/65
Horizontal thrust(N) 2500
