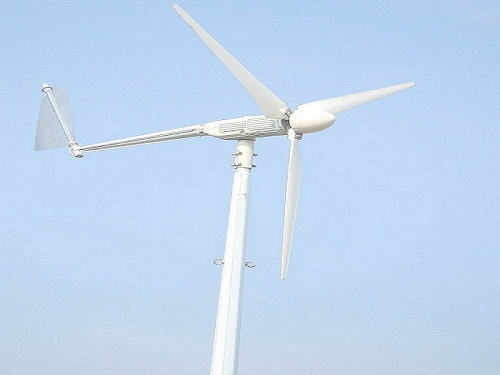

2kW Yawing controlled wind turbine
Specifications
1. Yawing technology
2. Mature system
3. Maintenance free
4. Best system matching
5. Rich experence in projects' operating
6. Streamline design and beautiful appearance
Product Characteristics
Particular yawing designing
1. Optimum aerodynamic shape design: High efficiency, low noise.
2. Direct drive permanent magnet generator, low startup resistance moment, constant running ability of over loading 1.5 times, maintenance free for more than 30000 hours.
3. Sealed slip ring, no cable twist, Carbon brush and slip ring clean, good conductivity of electricity.
4. Streamline design, and good appearance
5. Long acting anticorrosive treats, no corrosion in 15years.
Application: Off-grid System
For example, streetlight, home, island, signal tower, forest fireproof monitor and other related small equipment power supply.
Rotor Diameter (m) 3.8
Material of the blades & Number of blades Fiberglass-Reinforced Plastics & 3PCS
Rated power/Max power (w) 2000/3000
Rated rotate speed (r/min) 380
Rated wind speed (m/s) 12
Starting wind speed (m/s) 3
Working wind speed (m/s) 3--30
Survived wind speed 50
Working voltage DC48V---DC300V
Generator style Three phase, Permanent magnet A. C
Tower height (m) 6
Weight (kg)(exclude batteries and invert-er) 100
Speed regulation method: Yawing
Note:
1. Tower type, tower height can be special requested
2. Working voltage can be special requested
3. CE, ISO9001
Zhejiang Fengyuan Energy Technology Group Co., Ltd. is the professional manufacturer of small wind turbine generators which is a branch of Zhejiang Fengyuan Group Co., Ltd, The company has an established product range, and undertakes active investment in the development and promotion of both proven and innovative renewable energy technologies. Specializes in research, development, manufacturing, service as one large-scale and all-around "nomarchy high technology corporation. We have solar PV, scale-middle wind turbines, LED lighting and have got CE, ISO 9001, TUV and other product certificate, we have Zhejiang Wenzhou, Jiaxing Haining and Shangdong Linshu three manufacturer sites, after these three manufacturer sites finished building the annual value of production can reach to 50 hundred million RMB.
After 10 years development the products of wind turbine generator range from 400W, 1KW, 2KW, 3KW, 5KW, 10KW to 50KW with CE certificates honored. Thanks to the wide sorts and good quality, the products have already taken up the majority of domestic market and have been exported to more than 40 countries, say, Britain, France, the United States, Canada, New Zealand, Argentina, India etc, received high affection and reputation from the users.
Zhejiang Fengyuan Group Headquarters in Jiaxing Haining, for our Group have nearly a subsidiary of 18 to Join, have a branch like Zhejiang Fengyuan Energy Technology Co., Ltd, Shandong Tuoyuan Energy Technology Co., Ltd and so on, with a total registered capital of up to 500 million RMB. For our Shandong Tuoyuan Energy Industrial Park have finished, which is a subsidiary of Zhejiang Fengyuan Energy Technology.
Zhejiang Fengyuan Energy Technology will devote to the continuous development of green power resources and build the wonderful green world, and will try it's best supply excellent service!
