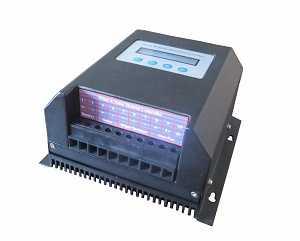

Performance:
1. Design for off-grid wind/solar hybrid street light system.
2. Integrated design of wind controller and solar controller.
3. Applicable to different kinds of batteries.
4. PWM stepless unload mode, which burn the excess power into mosfet, making the battery charging in best status.
5. Digital intelligent control, With powerful imported MCU control as the core device. To ensure Simple peripheral circuit structure, And more flexible and powerful control method and control strategy.
6. Modular design with simple structure and easy maintenance.
7. LCD display function, visually display wind power, wind voltage, wind current, wind turbine speed, PV power, PV voltage, PV current, battery voltage, battery power, charge current. Over voltage, under voltage, over load, short circuit, night mode, DC output modes etc.
8. Perfect protection function: Solar reverse charge protection, Solar reverse connection protection, Battery overcharge protection, Battery over current protection, Battery reverse connection protection, Open battery protection, Wind turbine automatic brake and manual brake, over load protection and short circuit protection, thus the system has higher reliability.
9. TVS Lightning Protection.
10. Wind turbine output voltage intelligent boost: The boost module starts automatically when the wind turbine voltage is lower than battery voltage, ensure that the wind turbine normally charges the battery. The boost module shuts off automatically when the wind turbine voltage is higher than battery voltage.
11. Impedance matching self-adaption: Due to internal resistance of wind turbine, battery, load, According to the impedance matching principle, The wind turbine will have maximum power utilization rate and maximum power output only when the input impedance equals to output impedance, with impedance matching self-adaption. This controller enhances energy efficiency.
12. Combine the wind turbine open circuit with dump load, over rotational speed, over voltage, over current limitation: When the total current of wind and solar is higher than limit current point or battery is full, The PWM duty cycle of controller will be decreased until battery is fully charged. And then controller disconnects the charging loop, the wind turbine will be on no-load operation. In order to prevent wind turbine from propeller racing. This controller is designed with over-current and over-voltage limit, Controller will automatically start PWM voltage intelligent dump-load function once wind turbine rotation speed or wind turbine voltage is more than setting point. So avoid wind turbine constant working in dump-load status, and increase the controller service life.
13. Maximum charging current limiting for battery: User can set the battery capacity and maximum charge current according to systems' exact configuration. To ensure the battery service life.
14. Wind turbine and solar panel is intelligent complementary and independent charging: Wind turbine and solar panel is intelligent complementary and independent charging. The solar panel adopts open circuit protection, and wind turbine adopts open circuit, over voltage, over rotation speed and over current protection. Ensures the service life of system components.
15. The controller has two DC outputs specially designed for street light system. Each DC output has 9 modes of controlling output
16. Wind turbine charging able or enable by manual: Turn on or turn off the charging switch by manual, The wind charging is shut off if choose switch off, The wind charging is normal if choose switch on. To avoid sparks when connection the wind turbine to controller, User can choose switch off.
18. Output able or enable by manual: Turn on or turn off the switch by manual, The DC output will be shut off If choose switch off, The DC output is normal if choose switch on, To avoid sparks when connection the Loads to controller. User can choose switch off.
|
Item No. |
LFWS500W-24V |
|
Rated Battery Voltage |
24V |
|
Rated Wind Turbine Power |
500W |
|
Wind Turbine Maximum Input Current |
30A |
|
Wind Turbine Maximum Input Power |
750W |
|
Unload Voltage(factory default) |
50V (Adjustable) |
|
Unload Current(factory default) |
400RPM (Adjustable) |
|
Rated Solar Power |
300W |
|
Battery Over-discharge Voltage Shutoff |
21V |
|
Battery Over-discharge Recovery |
24V |
|
Output Protection Voltage |
29V |
|
PV Voltage Of Light-Control On |
Adjustable |
|
PV Voltage Of Light-Control Off |
Adjustable |
|
Line 1 Rated Output Current |
15A |
|
Line 2 Rated Output Current |
15A |
|
Line 1 Output Mode(Factory Default) |
1 Modes selection(Light-control on and Light-control off) |
|
Line 2 Output Mode(Factory Default) |
2 Modes selection(Light-control on and time-control 5 hours) |
|
Control Mode |
PWM, MPPT |
|
Display Mode |
LCD |
|
Display Parameters |
wind power, wind voltage, wind current, wind turbine speed, PV power, PV voltage, PV current, battery voltage, battery power, charge current, over voltage, under voltage, over load, short circuit, night mode, DC output modes etc |
|
Working Temperature & Humidity |
-20~+55° C/35~85%RH(Without Condensation) |
|
Quiescent Current |
20± 2 mA |
|
Protection Function |
Solar reverse-charging protection, solar reverse-connection
battery over charge protection, battery over-discharge
battery reverse-connection protection, lightning protecting,
wind turbine current limiting, wind turbine automatic brake, over load protection and short circuit |
