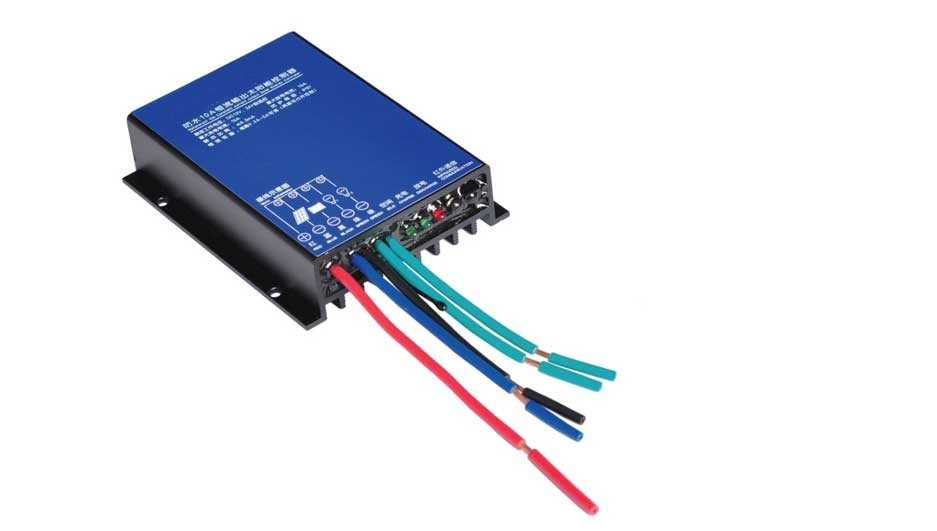

The product adopts fully sealed waterproof design, outputs constant current and has the function of 3 periods power regulation. The product can control two loads respectively. Most parameters can be set according to users' needs. The product is an advanced intelligent solar controller.
Product Performance:
1) Adopt the integrating technology of control and constant current, and save the cost of the LED driving power for users;
2) Apply to LED lights of 3 series (12V battery) or 6 series (24V battery);
3) 3 periods power regulation, Users can set the working current of LED lights;
4) Adopt double outputs and respective control, and the two loads can work respective in different power;
5) The controller adopts fully sealed waterproof design. The IP grade reaches IP67. The controller can be used in the water;
6) Flexible and adjustable working parameter makes the controller adapt to different solar systems;
7) External temperature sensor assures real-time temperature compensation;
8) This controller can withstand from -35c to 60c high and low temperature, so it can adapt to extreme temperature.
Applicable Scope:
Solar street lights, solar garden lights and solar systems with less than 360W solar panel and less than 240W DC load (non constant current mode) or less than 120W DC load (constant current mode).
|
Rated working voltage |
DC12V / DC24V |
|
Self consumption |
Average static power consumption 5mA; average power consumption 7mA when charging or discharging |
|
Max. charging current |
10A (Max. 12V170WP solar panel / 24V/340WP solar panel) |
|
Max. discharging current |
10A (Max. 12V/100W load/24V/200W load) |
|
Working temperature |
-35~75c(-35cto 75c) |
|
Charging mode |
MCT mode (Automatically tracing solar panel’ s Max. charging current) |
|
Working mode one |
Light controlling and time controlling |
|
Working mode two |
Light controlling and time controlling; constant current (for LED lights) |
|
Over-charging voltage protection |
14.5V / 29.0V (normal temperature 25c) |
|
Over-discharging voltage protection |
Users can set it according to their needs (ex-factory setting 10.8V/21.6V) |
|
Exit over-discharging voltage protection |
Users can set it according to their needs (ex-factory setting 12.5V/25V) |
|
Intensity of illumination for turning on lights |
Users can set it according to their needs (ex-factory setting 10lux) |
|
Intensity of illumination for turning off lights |
Intensity of illumination for turning on lights plus 10lux |
|
IP grade |
IP67 |
|
Weight |
250g |
|
Size |
116mm× 90mm× 30mm |
|
Rated working voltage |
DC12V / DC24V |
