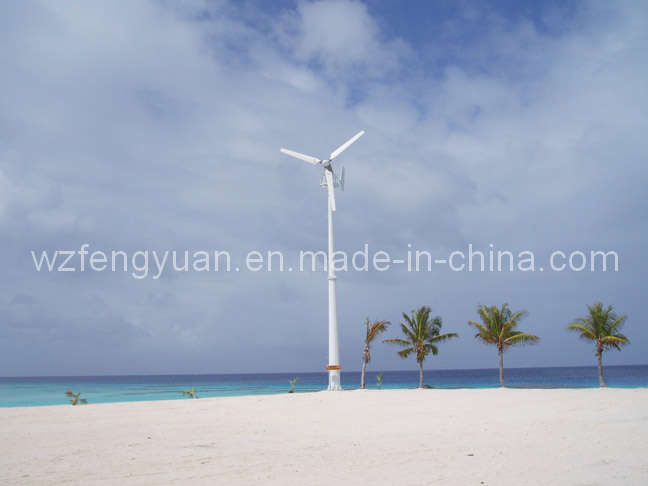

1. Features & Main specification (FY-20KW Wind Turbine)
Start with low wind speed, because we have a breeze to start patented technology, a little fan on the rotating wind power generation by natural factors
High wind energy utilization coefficient, normal wind turbine is 0.25, our wind turbine can reach to 0.4
Gearless, direct drive, low RPM generator.
High standard, quality components for use in harsh and extreme environments for wind turbines.
High efficiency and Low mechanical resistance energy loss.
Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure.
High strength from the specially desy selecign structure and fully heat treatment Spray Aluminum Generator is designed using speciallted material and treated to resist corrosion and oxidation.
Designed for reliable and long operational lifetime under long-term full output.
|
Wind rotor diameter (m) |
7 |
|
Blade material and quantity |
Reinfotced Fiber glass reinforced * 3 |
|
Rated power / max power (kw) |
10kw/17kw |
|
Rated wind speed (m/s) |
10 |
|
Rated rotate speed (rpm) |
200 |
|
Working wind speed (m/s) |
3-30 |
|
Start up wind speed (m/s) |
3 |
|
Survived wind speed (m/s) |
45 |
|
Start torque(n/m) |
7.5 |
|
Working voltage (v) |
DC500v
AC380V |
|
Battery voltage / capcity (v, ah) |
12*10=120V/300AH 12*20=240V/100AH |
|
Speed regulation method |
Tail turning and electric magnet |
|
Stop method |
Brake by hand drag+ hydraulic pressure |
|
Generator style |
Three phase, permanent magnet |
|
Wind turbine weight (kg) |
1300 |
|
Free standing Tower height / weight (m/kg) |
18/3200 |
|
Controller Model |
500V100A |
|
Life |
15-20 years |
Zhejiang Fengyuan Energy Technology Group Co., Ltd. is the professional manufacturer of small wind turbine generators which is a branch of Zhejiang Fengyuan Group Co., Ltd, The company has an established product range, and undertakes active investment in the development and promotion of both proven and innovative renewable energy technologies. Specializes in research, development, manufacturing, service as one large-scale and all-around "nomarchy high technology corporation. We have solar PV, scale-middle wind turbines, LED lighting and have got CE, ISO 9001, TUV and other product certificate, we have Zhejiang Wenzhou, Jiaxing Haining and Shangdong Linshu three manufacturer sites, after these three manufacturer sites finished building the annual value of production can reach to 50 hundred million RMB.
After 10 years development the products of wind turbine generator range from 400W, 1KW, 2KW, 3KW, 5KW, 10KW to 50KW with CE certificates honored. Thanks to the wide sorts and good quality, the products have already taken up the majority of domestic market and have been exported to more than 40 countries, say, Britain, France, the United States, Canada, New Zealand, Argentina, India etc, received high affection and reputation from the users.
Zhejiang Fengyuan Group Headquarters in Jiaxing Haining, for our Group have nearly a subsidiary of 18 to Join, have a branch like Zhejiang Fengyuan Energy Technology Co., Ltd, Shandong Tuoyuan Energy Technology Co., Ltd and so on, with a total registered capital of up to 500 million RMB. For our Shandong Tuoyuan Energy Industrial Park have finished, which is a subsidiary of Zhejiang Fengyuan Energy Technology.
Zhejiang Fengyuan Energy Technology will devote to the continuous development of green power resources and build the wonderful green world, and will try it's best supply excellent service!
