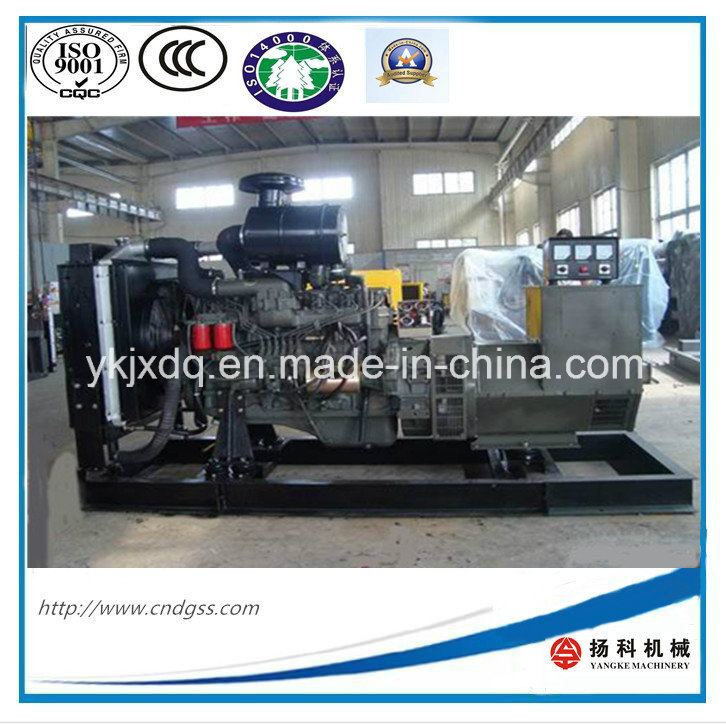

1.WEICHAI diesel engine
2.4/6 cylinder in-line, 4-stroke, liquid cooled
3. Naturally aspirated, turbocharged, or turbocharged with air intercooler
4. Electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
10. Radiator 40°C max, fans are driven by belt, with safety guard
11. Anti Vibration Suspension Absorber
12. Dry type air filter, fuel filter, oil filter
13.8-hour operation base tank
14.24V DC start motor and storage battery
15.24V charge alternator
16.24V batteries, rack and cable
17. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
18. Comply with ISO and CE standards.
19. Mould case circuit breaker
| rated voltage | 230/400v |
| rated current | 270A |
| rated frequency | 50hz |
| rated speed | 1500rpm |
| power factor | 0.8LAG |
| phase arrangement | 3P4W |
| fuel consumption | <210g/kwh |
| controller type | integral or split type |
| dimensions | L*W*H(mm) 2500*900*1500 |
| N.W. | 1200kg |
| Engine Model | R6113ZLD |
| rated power | 155kw |
| max power | 171kw |
| cylinder quantity | 6 |
| mode | In-line,4-stroke |
| cylinder diameter* stroke | 113*115mm |
| start method | electrical DC24V |
| governor method | mechanical |
| cooling method | water cooled |
| Stamford alternator | HJI144 |
| excitation mode | brushless with AVR |
| insulation class | H(temperature rise limit:125K) |
| protection class | IP22 |
Control system: 1. Start or Stop Generator set manually / automatically
2. Open controller output can be defined as Pre-heat/Idle output
3. High Coolant temperature protection
4. Low Oil pressure protection
5. Over load protection
6. Generator over/under frequency protection
7. Generator over/under/unbalance voltage Protection
8. Over speed protection
Packaging & Delivery | Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |

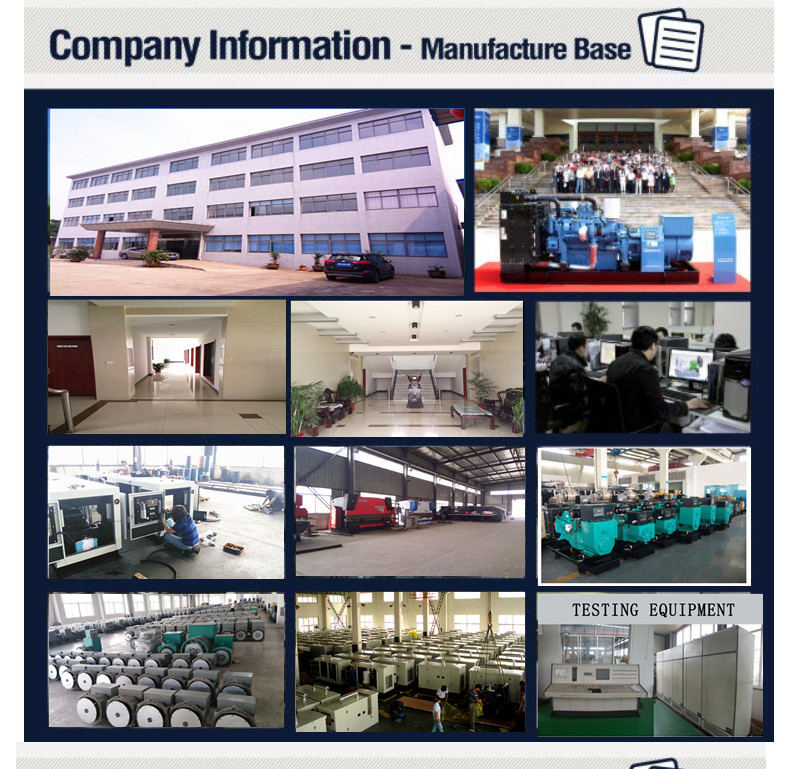

Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
ContactYangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000kVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and ISO14001-2004.
We can provide a variety of specifications automated, automatic cut over, soundproof and mobile on high quality. The low energy consumption power set satisfies the customer's all electric power demand. We also can satisfy the user with different voltage and different frequency request, as well as networking power supply system.
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
